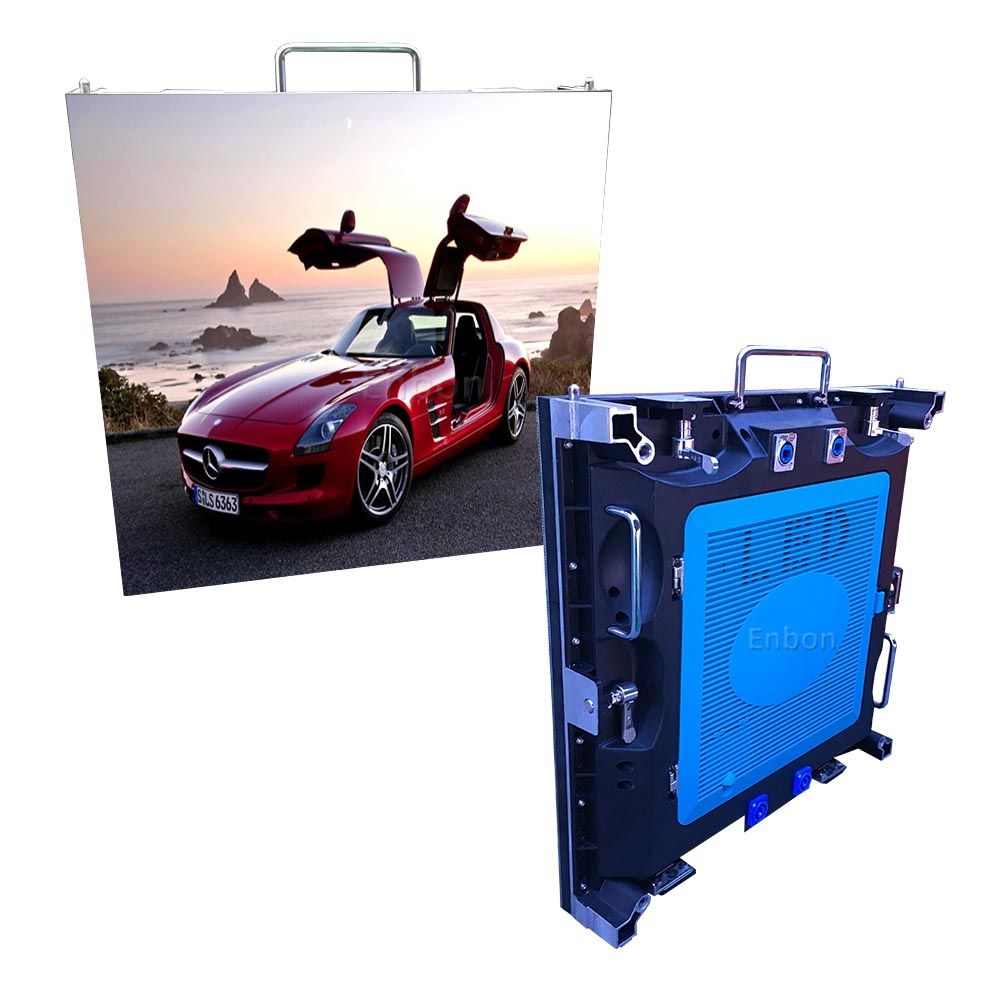

P2.5 Indoor LED Video Wall Panel Die Casting Aluminum Cabinet 480*480mm

Prod Model:	P2.5
Panel Size:	480*480mm
LED Module Size:	160*160
Refresh Rate:	2880Hz/S
Inputting Voltage:	90-264VAC
Minimum Order:	1 PC
Tube Chip Color:	Full Color
Display Function:	Video Display
Pixel Configuration:	1R,1G,1B
Display Type:	LED Video Display
Application:	Shopping Guide
Certification:	UL
Pixel Density:	160,000 Dots/Sqm
Scanning Mode:	1/32 Scan
System Operating Platform:	Winxp, Win7, Win8, Win8.1, Win10
IP Rating:	IP31

Product Description

P2.5mm indoor LED video wall full color led display screen

P2.5mm LED Video Wall has 160,000 pixels per square meter, extremely high definition for indoor events. It can make small LED TV . 16 bit color , compared to traditional TV, it's more colorful , fresh and vivid and eye catching . What's more, P2.5 LED Video Wall can be used for advertisement, banner display, video displays, demonstration, multi-media presentations, educational purposes and much more. You may use it at any indoor events even the high-end meeting room, exhibition hall, shopping malls, stage background, hotel etc.

Specifications:

Light: P2.5mm Cabinet size 480mm X 480mm, Weight 8 kg/pc

Thin: Die-cast aluminum design, high precision;

Fast: Fast locks, Easy to assemble and disassemble.

Easy: Modular design, easy assembly and maintenance.

Low: Excellent cooling design, no fans or air-conditioners needed noiseless, low power consumption, cost-effective.

Applications: Indoor enviroments, High definition, High refresh rate, high stability, no noise, light weight and easy to assemble and dismantle.



Model	P2.5 die-casting aluminum LED board for rental indoor
Pixel pitch	2.5mm
Pixel density	160,000 dots /sqm
Module size(W*H)	160 mm(width)*160 mm(height)
Module pixels(W*H)	64 dots *64 dots
Pixel configuration	1Red 1Green 1Blue
Drive mode	constant current driving 1/32 scan
LED lamp type	SMD2121
Cabinet size(W*H*D)	480mm*480mm
Color scale	65,536 degree
View angle(H/V)	140/120 degree
Brightness (White balance)	about 1300cd/sqm.
Power consumption(one cabinet)	Max:200W / cabinet , Average: 100W / cabinet
Operating Voltage	AC110V±10% or 220V ±10%;   47---63HZ
Net weight	9Kg / cabinet
Operating temperature	-30°C----+60°C
Operating humidity	10%-95%RH
Life time	≥100,000hours
MTBF	5,000 hours
Whole Display Flatness	≤0.5mm Juncture
Frame frequency	25-60 Hz/s
Refresh rate	≥2880Hz /s
Control distance	100m (without repeater), single mode fiber:20km, multi mode fiber: 500m
LED control system	LINSN,Dbstar,Nova-star,ZDEC,Colorlight is selectable
Operating system	Windows 2000 / Windows Xp / Windows 7 / windows 8 /8.1 / windows 10
Protections for outdoor display	IP31
Maintenance way	Rear  Access
Accepting signal with video processor	PAL/NTSC/SECAM,S-Video;VGA;RGB;Composite Video;SDI

FAQ:

Q1: What are your main products?
A1: We are especially professional in producing outdoor & indoor portable LED screens. Full color LED display screens for fixed installation are also our competitive products.

Q2: Can I visit your factory ?
A2: Sure , you are warmly welcome to visit our factory located in Shenzhen ,China .

Q3: Are you factory or trader?
A3: We are factory . Our company is established in 2010 , over 7 years experience in this LED display field .We are a modern ,big scale and professional manufacturer !

Q4: How long is the production lead time ?
A4: Normally it is 20 working days after receipt of 30% deposit .For some urgent project ,please talk to us then we will try our best to meet your requirements.

Q5: What is the payment method?
A5: T/T.,Western Union

Q6: What are the the pixel pitches available in your factory?
A6: Outdoor models: P4mm , P4.8mm, P5mm,  P6mm, P8mm, P10mm and P16mm
Indoor models: P1.66, P1.92mm, P2mm, P2.5mm, P3mm, P4mm, P3.91mm, P4.8mm, P5mm, P6mm, P7.62mm, P8mm, P10mm

Q7: Can it play HD video?
A7: Yes, it can realize HD video function . The smaller the pitch is , the higher the definition is .

Q8: What's the controlling system used on your LED screen ?
A8: Our standard controlling systems are  Linsn and Novastar which are the most popular in the market. Also support other controlling system such as Xixun,Colorlight, etc.

Q9: How about the size of project?
A9: Please offer the size with "width by height" of project. We will offer the suitable solution for your project size. I will appreciate it if any drawing files about installation offered.

Q10: How is your service?
A10:
1. We offer 2-3 years warranty. Life time free maintenance and upgrade. 2.Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on.
3. Complaint respond period not exceed 1 working day;
4. Free technician training can be offered either when you are in our factory for inspection the goods or via remote control .
