| Prod Model: |
Fiber Optic Distribution Box |
| Connector Type: |
Ss,LC |
| Used For: |
FTTH/FTTX |
| Application: |
Wall Mounted or Rack Mounted |
| Customized: |
Available |
| Product Name: |
Fiber Optic Distribution Cabinet |
| Maximum Capacity: |
24/48 Core |
| Material: |
Cold-Rolling Steel |
| Suitable: |
Sc, LC Adapters |
| Function: |
Cable Distribution |
| FTTX: |
Wall Mount ODF |
| Type: |
Optical Fiber Distribution Box |
| Wiring Devices: |
ODF |
| Certification: |
GS |
| Condition: |
New |
Product Description

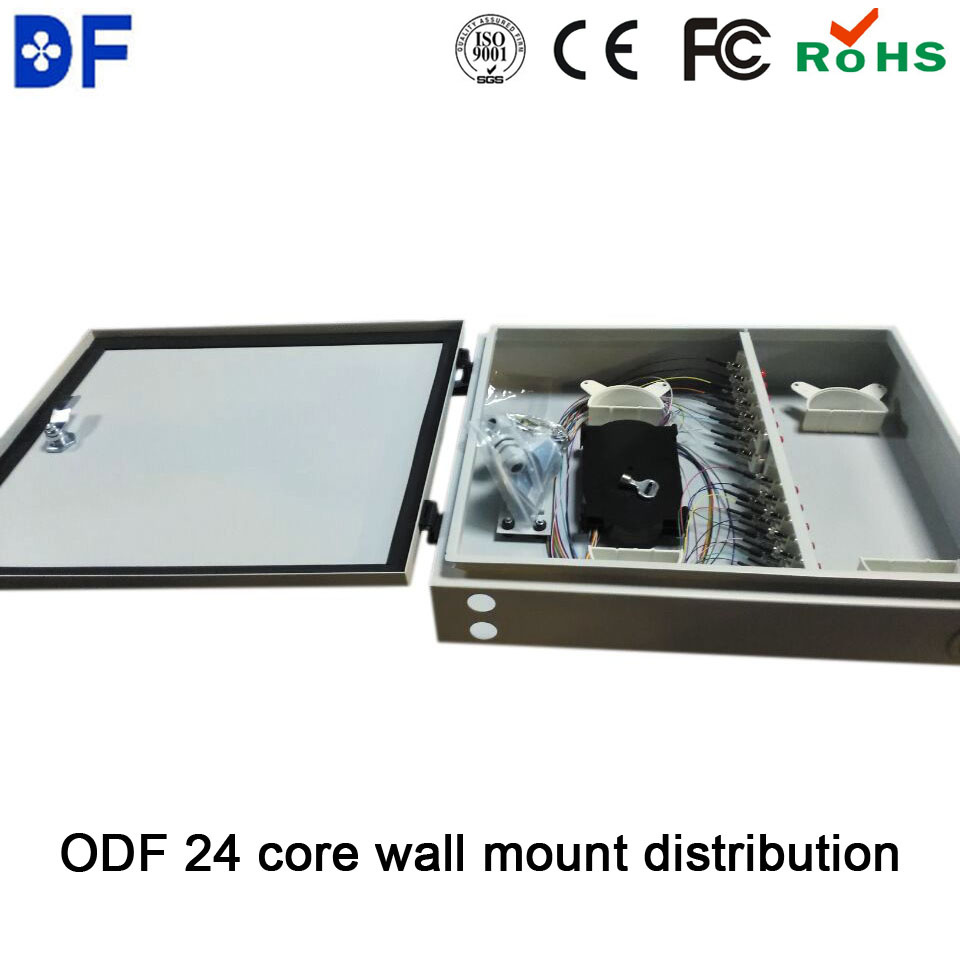

Outdoor Wall Mounted 24 Port Telecom Metal Fiber Optic Distribution Box
1. Descripition:
Outdoor Wall-mount Fiber Optic Distribution Cabinet is mainly used for connecting the outdoor optical cables, optical patch cords and optical pigtails. It can be wall mounted or pole mounted, and facilitates the test and refit of the lines
2. Specifications:
fiber optic patch panel
* Manufacturer
* ISO9001
* Water-proof,outdoor using
* 12,16,24,36,48,72,96 cores optional
3. Features:
1, With steel plates can manage both single fiber and ribbon & bundle fiber cables
2, FC, LC, SC, ST output interfaces optional
3, Large working space to integrate the pigtail, cables and adapters
4, Made of cold-rolling steel, static spreading-plastic, small dimension and exquisite, easy for operation
5, Special design ensures the excess fiber cords and pigtails in good order
6, Inner components as follows:
a, Fiber Optic Splice Tray: storing fiber connectors (together with the protective components) and the spare fibers
b, Fixing Device: used for fixing the fiber protective tubes, the fiber reinforced cores and the distribution pigtails
c, The brim of the box is sealed
4. Application:
1, Telecommunications subscriber loop
2, Fiber to the home (FTTH)
3, LAN/ WAN
4, CATV
5. Specification:
| Model No. | Fiber Quantity | Dimension(cm) | Weight(Kg) |
| ODF-OW96 | 96 | 56x 48x 26.5 | 14 |
| ODF-OW72 | 72 | 56 x 48 x 21.2 | 12 |
| ODF-OW48 | 48 | 46.5x 38.3x 15.5 | 7 |
| ODF-OW24 | 24 | 46.5x 38.3x 11 | 6.3 |
| ODF-OW12 | 12 | 46.5x 38.3x 11 | 6.3 |
| Model No. | Fiber Quantity | Dimension(cm) | Weight(Kg) |
| ODF-OW96A | 96 | 50x48x21 | 11.8 |
| ODF-OW48A | 48 | 46x41x15.5 | 7.8 |
| ODF-OW36A | 36 | 46x41x15.5 | 7.8 |
| ODF-OW24A | 24 | 46.5x41x11 | 7 |
| ODF-OW16A | 16 | 46.5x41x11 | 7 |
