| Prod Model: |
MT1900 |
| Motive Power: |
4 Electro-Motor |
| Length: |
2100+-50mm |
| Stainless Steel: |
SUS#304 Linak Brand |
| Certificate: |
Ce&ISO |
| Trendelnburg: |
20 Degree |
| Reverse Trendelnburg: |
20 Degree |
| Width: |
520mm±20mm |
| Left Tilt/Right Tilt: |
15 Degree |
| Kidney Elevator: |
130mm |
| Material: |
Metal |
| Folded: |
Unfolded |
| Using Ambient: |
Hospital |
| Certification: |
ISO13485 |
| Numbers Of Function: |
12 Function |
Product Description

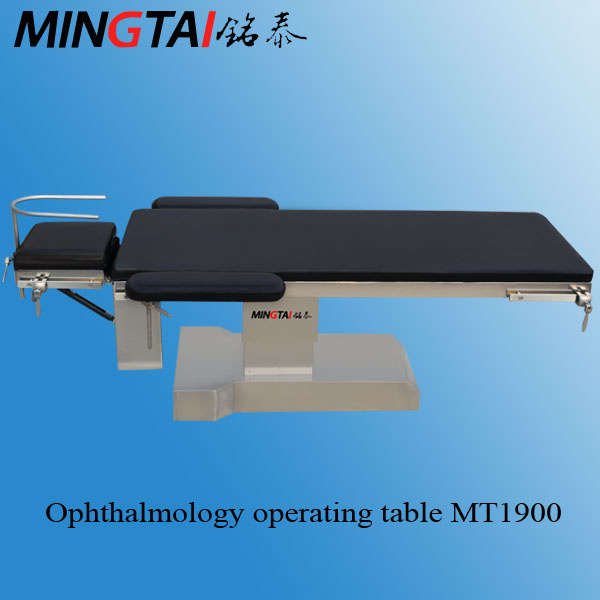

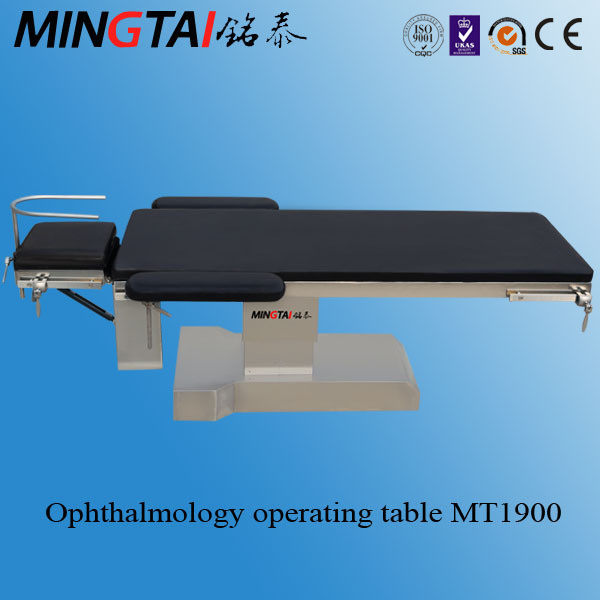

Ophthalmology Electric OT table with CE & ISO approved:
Configuration:1. Multi-function 6 electro-motor surgical table
2. Imported high precising HIWIN straight slideway
3. Imported high quality LINAK linear motor from Denmark
4. SUS304# stainless steel from Korea
5. Superior wide of operating table: 555mm
6.2 motors rise the back board, "T" shaped base design,
7. Memory sponge mattress
8. Electric kidney elevator (optional)
Technical parameters:Length: 2000± 50mm
Width: 480± 20mm
Lowest and highest table height: (750-1000)± 50mm lowest: 600mm
Table longitudinal scope: 400± 50mm

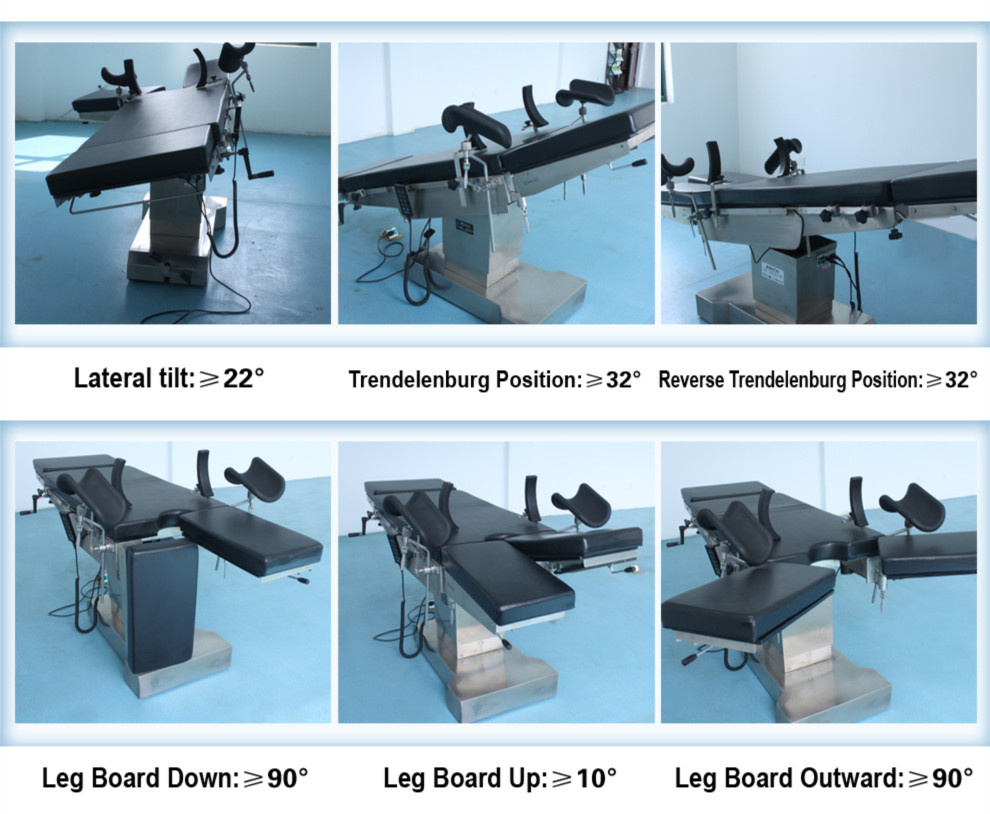

Forward tilt ≥ 32°
Backward tilt ≥ 32°
Leftward tilt≥ 22°
Rightward tilt≥ 22°
Leg board down: ≥ 90°
Leg evagination: ≥ 90°

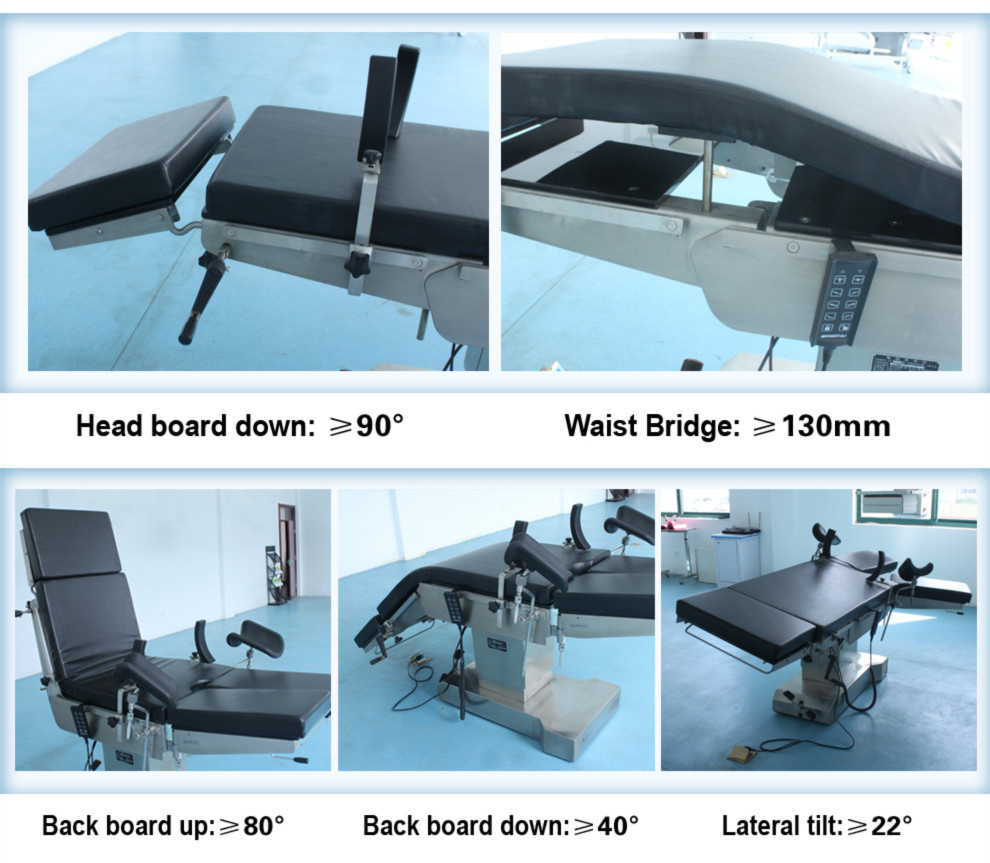

Back board up: ≥ 80°
Back board down: ≥ 40°
Head board up/down: ≥ 90°
Kidney elevator: ≥ 130mm
Power: AC 220V 50Hz
Input power: 500VA
Main feature:1.
Electric motor driving system: Imported the Danish LINAK brand motor, low noise, smooth table motion, lifting and rising, forward and backward, left ward and rightward and the back plane are all controlled by system, manual head plate and leg plate, easy and convenient for operate.
2.
6 electric motor, 2 of them rise the flanks back board. High performance charged battery can work ≥ 50 times to make sure the operation table can work without power source.
3.
The whole bed is made of high quality SUS304# stainless steel, super thick≥ 4mm (not stainless steel cover). The whole surgery bed, cover and accessories are all made of high quality nickel chromium alloy stainless steel, not rusting within 15 years, excellent sealing, polishing surface treatment, impact resistance, prevent scratch resistance, wear resistance, disinfection, easy to clean, fully meeting disinfection after operation
4.
Fairily "T" shape base design supple excellent shock resistance and stability, easy for clear and disinfection. Six sections board design: Head board, back board, built-in kidney elevator, leg board and pedal board.
5.
Square lifting column is made by Germany, which has 4 times safety factor and 8 fasteners which can make it stable.
6.
Mattress: The memory mattress, thickness is 70mm, effectively relieve patients pressure point, prevent postoperative bedsore occurred; Mattress material is conformed with the safety standard, the surface is antibacterial, easy to clean, meeting the operating room disinfection requirements.
7.
With non-slip floor side rail safety design to prevent the attachment falling, in case of injury
