| Prod Model: |
Operation Table (Mechanical ECOH009) |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Table Height: |
750mm~1000mm |
| Length And Width: |
2000mmx480mm |
| Head Section Raised From The Horizontal: |
45o |
| Lowered From The Horizonta: |
90o |
| Back Section Raised From The Horizontal: |
45o |
| Kidney Bridge Elevated: |
100mm |
| Lowered From The Horizontal: |
20o |
| Leg Section Lowered From The Horizontal: |
90o |
| Material: |
Metal |
| Type Of Hospital Bed: |
Manual Bed |
| Folded: |
Unfolded |
| Using Ambient: |
Hospital |
| Certification: |
ISO13485 |
Product Description

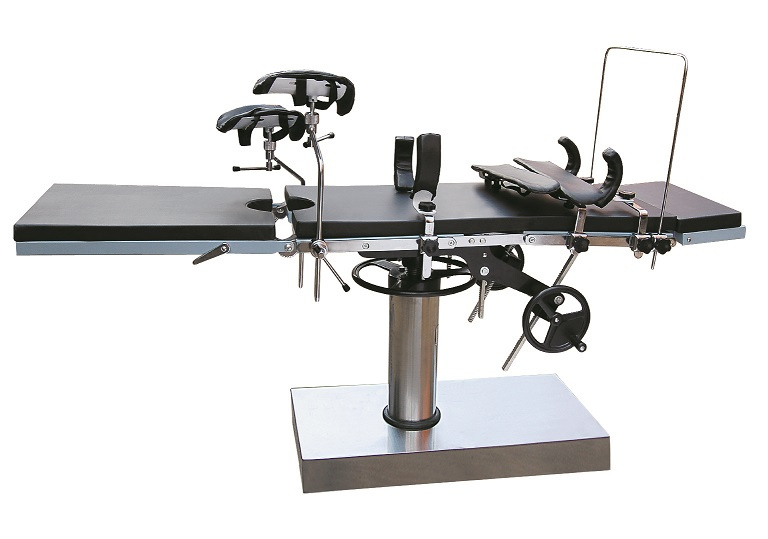

Ordinary Operation Table ECOH009
General Description:
Ordinary Operating Table is suitable for surgical clinic of the head, neck, thorax, abdomen, perineum and extremities as well as for gynaecological, obstetrical, urological and otorhine laryngological operations. Various positions can be quickly and safely adjusted. It is characterized by economy and practicability. The table is especially favourable for extensive and towns hospital.
According to the matter of outside cover, there are two types: model B and BS. The model B are ordinary carbon steel, the other are stain-less steel. The technical parameters and devices are same.
Specifications:
Dimensions of table top :
Overall Length....................................…2000mm
Width..................................................….480mm
Table Top form Floor:
Min Height.......................................…..750mm
Max Height............................................1000mm
Dimensions of Sections:
Head Section........................................200×480(mm)
Back Section.........................................450×480(mm)
Kidney Section.................................…150×480(mm)
Seat Section..........................................450×480(mm)
Leg Section...........................................650×480(mm)
Adjustments of Sections:
Head section Raised from the horizontal.........................≥45°
Lowered from the horizontal................................................≥90°
Back Section Raised from the horizontal.....................… ≥45°
Lowered from the horizontal................................................≥20°
Leg Section Lowered from the horizontal.....................…≥90°
Kidney Section Elevated.......................................................≥100mm
Structure and Description:
This table is made up of the table top, the table support, The table top is made up of the head section, the back section, the kidney section, the seat section, the leg section, etc. It can achieve a kind of movements with the transmission devices.
Controlling hand-wheels 1 can make the back section raised and lowered. Handle 2 can make the kidnky section up and down. Hand-wheels 3 can make the table top up and down; Handle 4 can make the leg section raised and lowered.
Accessories:
(1) Stand for anesthetic screen, Number:1
Used for isolating the operation area during operation.
(2) Shoulder rest , Number: 2
Mounted on each side of the operating table according to support the shoulder so as to prevent body from moving backward ,the distance between the two shoulder rests can be adjusted according
(3) Arm rest, Number: 1
It can be mounted on either side of the table and used for intravenous drip and for measurement of blood pressure and pulse .Height and angle can be adjusted .
(4)Body rest, Number: 2
For supporting the body during the operation, so as to provent body from moving right and left
(5) Leg support, Number: 2
For supporting the legs during the operation. Position can be adjust according to need.
(6 ) Mattress on the table top, Number: 1 suit
It includes three parts which one connected with each other buttons. It is made up of sponge covered with imitation leather, soft and comfortable, easy to use.
