| Prod Model: |
Operation Table (Manual ECOH008) |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Table Height: |
750mm~950mm |
| Length And Width: |
2100mmx500mm |
| Reversed Trendelenburg/Trendelenburg: |
15o |
| Lateral Tilt (Left/Right): |
20o |
| Head Rest(up/Down): |
45o/90o |
| Kidney Bridge Elevated: |
100mm |
| Backward And Forward Movements: |
400mm |
| Safe Working Load: |
135kg |
| Material: |
Metal |
| Type Of Hospital Bed: |
Electric Bed |
| Folded: |
Unfolded |
| Using Ambient: |
Hospital |
| Certification: |
ISO13485 |
Product Description

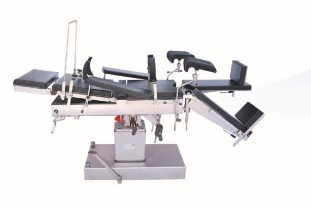

Multi-Purpose Operation Table, Side-controlled ECOH008
Operation Table, Side-controlled ECOH008 is suitable for surgical procedures of the head,neck, thorax and abdomen,perineum and extremities as well as for gynecology, otorhino-laryngological and orthopaedics ,operation.The table's elevation,lowering ,reversed trendelienburg, trendelenburg, lateral tilt can be all automatically controlled. Leg section can be rotated, opeded, disassembled and adjusted easily. It is most suitable for the urological operation,The table top made of high strength glass, can move backwards and forwards. X-Ray examination can be carried out on it, It can be raised or lowered hydraulically by means of an oil pump. Various positions can be controlled from both sides. Chassis inside an outside covers are stainless steel.
Specifications
Overall length.........................................2100mm
Width......................................................500mm
Dimensions of Sections
Head Rest .............................................250×500mm
Back section .........................................465×500mm
Kidney Bridge........................................75×500mm
Seat Section .........................................450×500mm
Leg Section ....................................…...600×240mm
Foot Rest .............................................273×180mm
Table Top from Floor
Min. height.............................................750mm
Adjust..........................................….......≥200mm
Range of Movements
Max. Reversed Trendelenburg..............≥15°
Max. Trendelenburg...........................…≥20°
Max. Lateral Tilt......................................≥15°
Adjustments of Sections:
Head Rest-raised from the horizontal...............................≥45°
Head Rest-lowered from the horizontal.............................≥90°
Back Section-raised from the horizontal........................…≥45°
Leg Section-lowered from the horizontal ..........................≥90°
Leg Section-opened......................................................…≥90°
Backward and Forward movements..................................≥400mm
Kidney Bridge Elevation....................................................≥100mm
Foot Rest-can be kept horizontally or perpendicularly to the Leg Section.
Safe working load.......................................135kg
| Accessories | Pc(S) | Remark |
| Head Rest | 1 | |
| Body Support, Large | 2 | |
| Body Support, Small | 1 | |
| Shoulder Rest | 2 | |
| Kidney Bridge | 1 | |
| Anaesthetic Screen | 1 | |
| Knee Crutch | 2 | |
| Arm support | 2 | |
| Cushion | 1 | |
| Body Restraint Strap | 1 | Optional Components |
