Operating Theater Table Mt2100 with Linak Motors
| Price: |
US $ 3000-3550/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
| Prod Model: |
MT2100 |
| Commodity: |
Electric Operating Table Mt2100 |
| Size: |
L:2100±50mm / W:555mm |
| Certificate: |
Ce,ISO9001,ISO13485 |
| Material: |
SUS#304 Stainless Steel |
| Motor: |
Danish Linak Brand |
| Height Adjustment: |
(750-1000) ± 50mm |
| Table Longitudinal Scope: |
400±50mm |
| Leg Evagination: |
≥90° |
| Back Board Up: |
≥80° |
| Back Board Down: |
≥40° |
| Type: |
Operating Table |
| Kind: |
Orthopedics |
| Certification: |
ISO13485 |
| Group: |
Adult |
| LCD Display: |
Without LCD Display |
Product Description

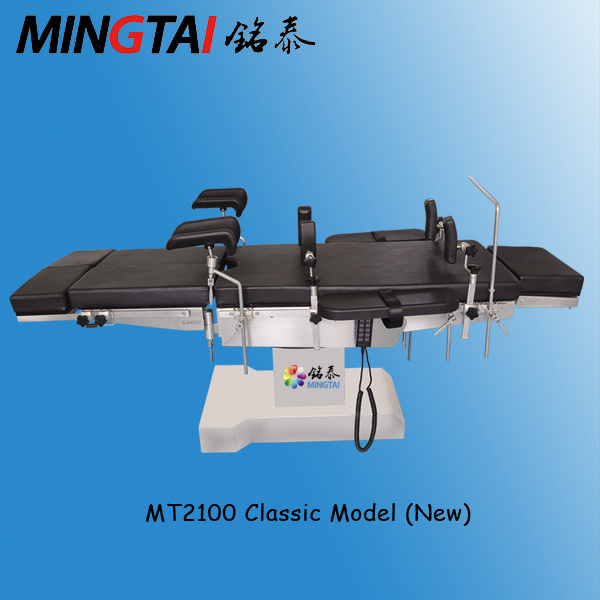

Operating theater table MT2100 with Linak motors
Operating Table MT2100 (Classic Model)Main Configuration:1.304 stainless steel
2. Six set motor, double Linak motors rise the back board, LINAK linear motor from Denmark
3.2 motors rise the back board, "T" shaped base design
4. Double control pattern, built-in emergency power
5. Electrical brake and electrical kideny elevator(optional)Technical Parameters:| Parameters | MT2100 |
| Length | 2100±50mm |
| Width | 555mm |
| Lowest and highest table height | (750-1000) ± 50mm |
| The lowest custom height | 600mm |
| Custom table height of up and down | between 200-450mm |
| forward and backward tilt | ≥32° |
| Table longitudinal scope | 400±50mm |
| Left/right tilt | ≥22° |
| Leg board down | ≥90° |
| Leg evagination | ≥90° |
| Back board up | ≥80° |
| Back board down | ≥40° |
| Head board up/down | ≥90° |
| Kidney elevator | ≥130mm |
| Power | AC 220V 50Hz |
| Input power | 500VA |
Main feature:1.
Electric motor driving system: Imported the Danish LINAK brand motor, low noise, smooth table motion, lifting and rising, forward and backward, left ward and rightward and the back plane are all controlled by system, manual head plate and leg plate, easy and convenient for operate.
2.
6 electric motor, 2 of them rise the flanks back board. High performance charged battery can work ≥ 50 times to make sure the operation table can work without power source.
3.
The whole bed is made of high quality SUS304# stainless steel, super thick≥ 4mm (not stainless steel cover). The whole surgery bed, cover and accessories are all made of high-quality nickel chromium alloy stainless steel, not rusting within 15 years, excellent sealing, polishing surface treatment, impact resistance, prevent scratch resistance, wear resistance, disinfection, easy to clean, fully meeting disinfection after operation
4.
Fairily "T" shape base design supple excellent shock resistance and stability, easy for clear and disinfection. Six sections board design: Head board, back board, built-in kidney elevator, leg board and pedal board.
5.
Square lifting column is made by Germany, which has 4 times safety factor and 8 fasteners which can make it stable.
6.
Mattress: The memory mattress, thickness is 70mm, effectively relieve patients pressure point, prevent postoperative bedsore occurred; Mattress material is conformed with the safety standard, the surface is antibacterial, easy to clean, meeting the operating room disinfection requirements.
7.
With non-slip floor side rail safety design to prevent the attachment falling, in case of injury
8.
Longitudinal movement function: Imported slideway system makes it easier for longitudinal movement, the max longitudinal scope is 350mm, and it also can guarantee enough space under the table bed for C-arm's X-ray transillumination and other special surgery.
