| Prod Model: |
ME-014 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Sizes: |
2100X480X750 |
| Material: |
Metal |
| Type Of Hospital Bed: |
Electric Bed |
| Type: |
Medical Table |
| Type Of Operation Table: |
General Operation Table |
| Folded: |
Folded |
| Using Ambient: |
Hospital |
| Certification: |
CE |
Product Description
We are a leading supplier of operating table. Pls see the detailes as follows:
Model: 8801 Electric Operating Table is designed for all kinds of operations in hospitals. Beside all functions of the Chinese-build operating table, it has its own advantages. 1. Leg section can be rotated, opened, disassembled and adjusted easily. It is most suitable for the urological operation. 2. The table top, made of highstrength plastic plate, can move backwards and forwards and forwards. X-ray examination can be carried out on it. 3. The table's elevation. Lowering, reversed trendelenburg; Trendelenburg, lateri tilt, and movemet of table-top are all automatically
Technical parameters:
Size: 2100x480x750(1000)mm
Reversed trendelenburg: 30 deg
Trendelenburg: 30deg
Lateral tilt: 20deg
Back wrad and forward movement: 400mm
Head sectionraised from the horizontal: 90 deg
Leg section raised from the horizontal: 10deg
Leg section raised from the horizontal: 90deg
Leg section opened: 90deg
Kidney bridge elevation: 120mm
Supply: 220V/50Hz

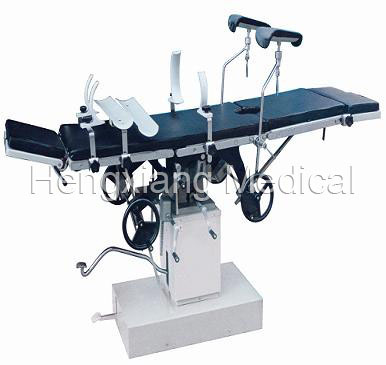

Model: 3001 Multifunctional Operating Table
Intended for surgical operations on head, neck, thorax, celiac cavity, perineum, limbs, etc. Oil pump provides hydraulic elevation; Operating table controlled on the two sides to achieve the requires position.
Specification:
Length |
2050±50mm |
Width |
480±20mm |
Maximum and minimum height of the platform |
(750~950)±50mm |
Forward |
≥30° |
Backward |
≥25° |
Left ward |
≥20° |
Head board fold upward |
≥30° |
Head board fold downward |
≥90° |
Back board fold upward |
≥80° |
Back board fold downward |
≥10° |
Leg board fold downward |
≥90° |
Waist board outspread |
≥90°(dischargeable) |
waist board lifting |
≥120mm |
Technical parameters:
Size: 2100x480x800(1050)mm
Forward: ≥30 deg
Retrovert: ≥25 deg
Side towards: ≥18 deg
Head board fold upward: ≥45 deg
Head board fold downward: ≥90 deg
Back board fold upward: ≥75 deg
Back board fold downward: ≥18 deg
Leg board fold downward: ≥90 deg
Waist board lifting: ≥120mm
Model 3308: Head Operating Table
Intended for surgical operations, on head neck. Pleuroperitoneal cavity, perineum, limbs etc. In hospitals. Oil pump provides hydraulec elevat on; Operating table controlled on the two sidles to achieve the tequired position. XXS3008C boasts double beds legs can be separated tortilming leg board dischargeable, traction trame can be used to conduot bone surgery.
Technical parameters:
Size: 2100x480x800(1050)mm
For ward: ≥30 deg
Back ward: ≥25 deg
Lateral tilt: ≥15 deg
Head board fold upward: ≥45 deg
Head board fold downward: ≥90 deg
Back board fold upward: ≥80 deg
Back board fold downward: ≥10deg
Leg board fold downward: ≥90 deg
Waist board lifting: ≥120mm
If you need more information, pls feel free to contact us.
