| Prod Model: |
Electric Operation Table ECOL007 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Table Height: |
750mm~1000mm |
| Length And Width: |
2030mmx500mm |
| Reversed Trendelenburg: |
25o |
| Trendelenburg: |
25o |
| Left Inclining Angle: |
15o |
| Right Inclining Angel: |
15o |
| Upward Folding Angle Of Back Rest: |
80o |
| Downward Folding Angle Of Back Rest: |
20o |
| Upward Folding Angle Of Head Rest: |
45o |
| Downward Folding Angle Of Head Rest: |
90o |
| Type: |
Medical Table |
| Material: |
Metal |
| Type Of Hospital Bed: |
Electric Bed |
| Certification: |
ISO13485 |
| Folded: |
Unfolded |
| Type Of Operation Table: |
General Operation Table |
| Using Ambient: |
Hospital |
Product Description

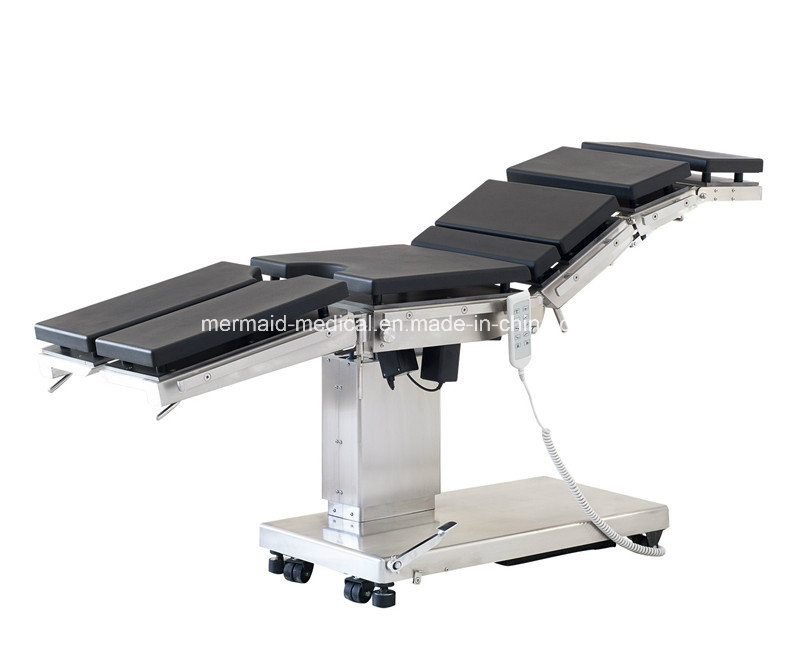

Electric Operation Table ECOL007
Electric Operating Table ECOL007
Operating Table ECOL007 as an advanced automatic operating table, can meet multi-purpose requirements of surgery operations, long horizontal sliding, suitable for C-arm and X-Ray.
It adopted micro touch remote control;Any movements can by adjust by it.Flexible adjustment on head board, back board and seat plate, build-in kidney bridge.
High automation, low noise, high reliability.
Key parts imported from abroad, can be regards as an ideal electric table.
| name: | C-Arm Electric operating table |
| model | ECOL007 |
| demensions(mm): | Table top length | 2030mm |
| Table top width | 500mm |
| Chinese Motor |
|
| functions | Height Adjustment (electric) | 750-1000mm |
| Trendelenburg (electric) | ±25 degree |
| Lateral Tilt (electric) | ±15 degree |
| Back section adjustment (electric) | up:80/down:20 degree |
| Head board adjustment (manual) | up:45/down:90 degree |
| Leg board adjustment (manual) | up:15/down:90degree |
| The second back section adjustment | ±10 degree |
| Kidney elevator (manual) | 0-120mm |
| Standard Accessories: | Part name | Qty |
| Shoulder supports | 2pcs |
| Waist supports | 2pc |
| Arm supports | 2pcs |
| Leg supports: | 2pc |
| Anesthetic screen frame: | 1pc |
| Manual Controller | 1pc |
| Power wire | 1pc |
| PU Mattress | 1set |

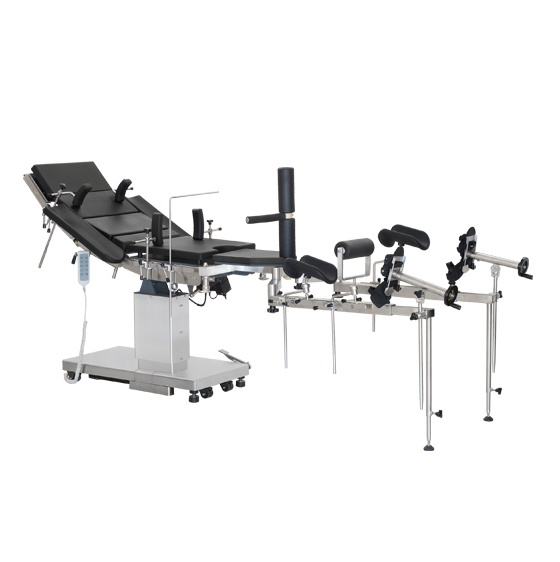

| Optional Accessories | Tractor on the floor | Spine support |
| body strap | Knees support |
| Skull operating rack(three tips) | Head support |
| Padded cushion | Vehicle |
| Drain basin | Doubling arm support |
| Multi-direction leg support |
|
| materials: | Stainless Steel base device and cover, the matress and accessories is made of PU |
| packing size | 1450(L)×830(W)×910(H) |
