| Prod Model: |
MT1800II Classic model |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Medical Table |
| Material: |
Metal |
| Folded: |
Unfolded |
Product Description

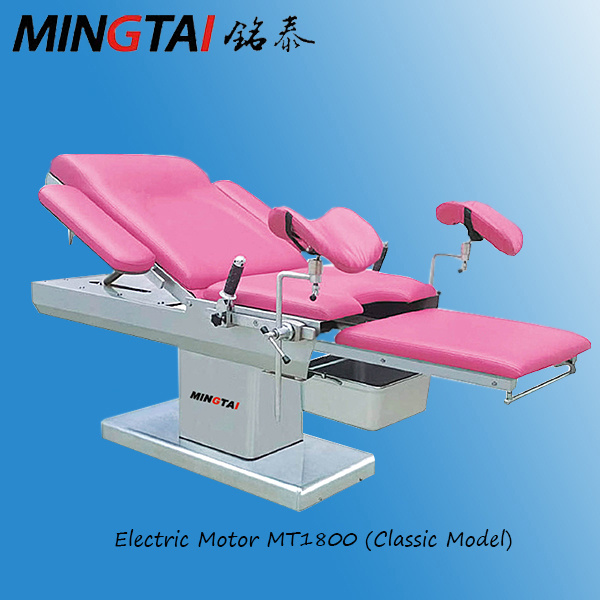

Operating Table Classic model(MT1800II)
Configuration:
1. Three motor multi function gynaecology obstetric operation table
2. LINAK Brand high quality linear motor imported from Denmark
3. Whole boday use 304 stainless steel
4.620mm super width bed boday
5. Embedded auxiliary leg board, large dirt basin
Main Features:
1. Use imported motor(electric push rod), mini touch control handling, the function
Up and down, back side angle and front and rear slanting angle all use motor, press the switch lightly, it can adjust every part steady
2. Soft mattress, high quality medical use PU, formed once by polyurethane
3. Use high quality 304 stainless steel, surface by special technology processing electrostatic coated plastic high
Temperature 250 degrees baking processing and layer polylit paint, can lasting using, and beautiful generous and texture comfortable and clean convenient
4. Main up and down stand column: German design, Bearing with a safety factor of four times, square column lifts up and down, Eight fixed fasteners, ensure the weighing steady
5. Embedded auxiliary device do not occupy space, extraction or striction is very easy, it also can hold devices when suture, support doctor's elbow, improve the steady of the clinical
6. It is convient to install and dismantle, the projecting pedestal let doctors approach delivery woman, increase the convient of the clinical and can use large dirt bucket
7. Pedestal, up and down column's outer formation all use stainless steel, antifraying, corrosion resisting, easy
To clean and disinfection
8. Enbedded truckle which can move all direction, is made of ABS plastic cement, there is no noise and steady when moving.
Technical parameters
|
MT1800 |
Bed length
|
1900mm±50mm
|
Bed width
|
620mm
|
the lowest and highest of the table board
|
( 750~1000 ) ±50mm
|
bed surface slants up and down from front to rear
|
≥20°
|
Back side lifts up
|
≥75°
|
Auxiliary station table board :length and width
|
520mm , 500mm
|
Power , voltage
|
220V 50HZ
|
Input power
|
500VA
|
