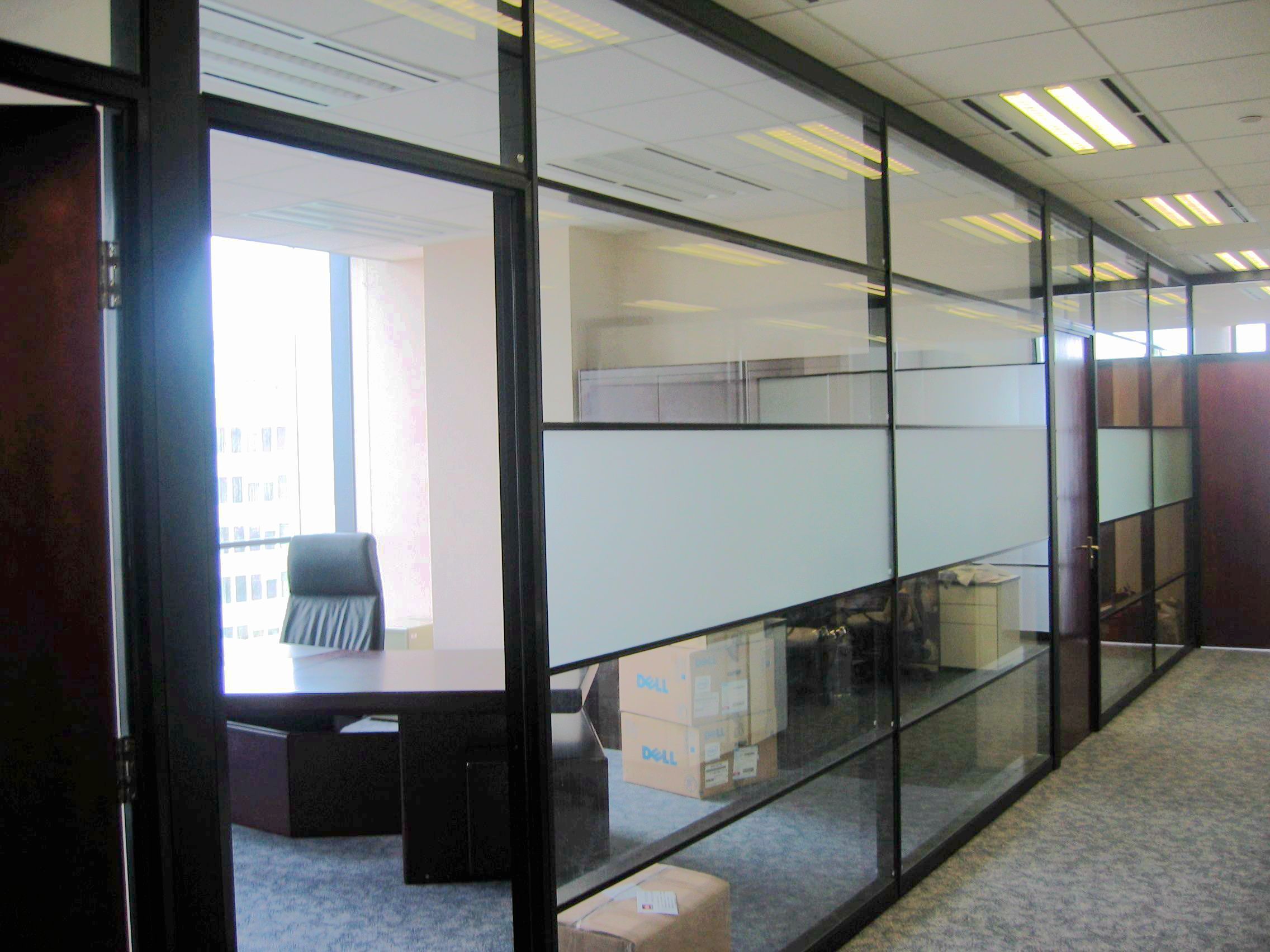

Office Partition Walls for Meeting Room
| Price: |
US $ 68-98/Square Meter |
| Trade Terms: |
FOB |
| Min Order: |
20/Square Meter |
| Pay Type: |
L/C,T/T |
| Prod Model: |
NG-28 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Structure: |
Non-Loadbearing Floor to Ceiling System |
| Wall Panel: |
Tempered Glass, Double Glazed or Single Glazed |
| Finishing: |
Stain Anodized or Polyester Power Coating |
| Glazed Module: |
Single or Double Glazed,Tempered Glass |
| Material: |
Aluminum and Glass |
Product Description
1, General description: Non-loadbearing floor to ceiling system based on an aluminum framework with sound reducing panels, erected in a combination of single glazed panels.
2, Thickness: 28mm overall
3, Tolerance: +/-5mm.
4, Application height: 2000mm-3000mm
5, Weight: Approximately 30.00kg/m³ For 12mm glass
6, Finishes: Stain anodized or polyester power coating to all exposed aluminum components available in a wide range of colors as standard
7, Fire endurance: 0. E30. EI60
8, Acoustic performance: 35dB, 43dB
9, Framework: A pre-finished aluminum head and floor channel.
10, Glazed module: 12mm toughened safety glass, held in by clear PVC gasket to head and floor channel, or combination with 12mm MDF, MgO board, steel plate
11, Panel joint: Dry clear PVC joint
12, Manifestation: A wide ranges of film and screen printing available as optional extra.
13, Module: 300mm-1500mm maximum.
14, Door unites: A combination of style is available. Standard or full height frames in aluminum or timber fitted glass or timber veneered doors, together with frameless standard height glass doors with over panel or full height glass doors
15, Door furniture: Wide range of fittings available| TYPE | NG-28 | NG-90 | NG-100 | NG-108 |
| Panel suspension | Non-loadbearing floor to ceiling system based on an aluminum framework with sound reducing panels, erected in a
combination of single OR double glazed panels. |
| Track system | head and floor channel | head and floor channel | head and floor channel | head and floor channel |
| Thickness | 28MM | 90MM | 100MM | 108MM |
Application
height | 2.8M | 3.6M | 3.8M | 3.8M |
| Max height | 3.0M | 3.8M | 4.0M | 4.0M |
| Panel width | ≤1200MM | ≤1400MM | ≤1500MM | ≤1500MM |
| Framework | A pre-finished 1.4-2.0mm thickness aluminum head and floor channel. |
| Face material | 12MM single toughened
glass | 6mm+78+6mm double
toughened glass. Shutter as
option | 6mm+78+6mm double
toughened glass. Shutter as
option | 6mm+78+6mm double
toughened glass. Shutter as
option |
| Fire safety | 0.E30.EI60 | 0.E30.EI60 | 0.E30.EI60 | 0.E30.EI60 |
| Tolerance | ±5 | ±5 | ±5 | ±5 |
| Finishing | Stain anodized or polyester power coating to all exposed aluminum components available in a wide range of
colors as standard |
| Inner framework | n/a | 1.0-1.2mm thickness galvanized steel keel |
| Door unites | A combination of style is available. Standard or full height frames in aluminum or timber fitted
glass or timber veneered doors, together with frameless standard height glass doors with over panel or full
height glass doors |

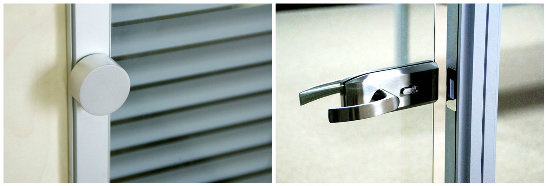

| Locking | Optional lock |
| Sound insulation | 35dB\43dB | 44dB\52dB | 44dB\52dB | 44dB\52dB |
| Weight | Approximately 30.00kg/m³ | Approximately 34.00kg/m³ | Approximately 36.00kg/m³ | Approximately 38.00kg/m³ |
Neuwall Partition Wall, established since 2004, was developed from Shanghai Gibo Group whose reputation for providing high-quality, cost-effective and energy efficiency Building Materials and today we offer the wide ranges of Movable Partition walls and Glass walls in the world, targeting large organizations, such as Hotel, Office, Conference room, Restaurant and Public area in the world that required the flexibility, quickly and efficiently reconfigure their space environments.
Our partitions are known for their quality construction, durability, beauty, versatility, easy movement, and quiet operation. All are customized to the project requirements. Although our partitions are most commonly finished with high pressure laminate, optional surfaces such as Fabric, Wall covering, Wood veneer and Melamine, etc, may be used as well. Panels may also be shipped unfinished for field application of murals or other custom surfaces to match or coordinate with the perimeter room construction.
Innovative Engineering
Dedicated to quality and customer service, we have an extensive engineering department that thoroughly evaluates and tests all products and materials. Our innovative engineers are always seeking the unique; And, as a result, we have more accomplished and more advancements in the Movable partition field than other manufacturers in our industry. So we are Industry-leading acoustics, Multi-directional track systems, fire safety, and ease of operation.
Worldwide Availability
Neuwall's headquarters are located in Shanghai, China, composed of two manufacturing facilities in Shanghai and Guangzhou city. We provide the movable partition walls and service for the clients in USA, Brazil, the Middle East and Southeast Asia.
Customized Products
Although we have a comprehensive selection of movable partition walls, glass wall occasionally our standard products won't meet your needs. Most products may be modified for specific design requirements. Examples include: Notched panels to soffits, window inserts, or special sized panels to seal against sloped floors or stairs
We offer
Detailed initial client consultation
Bespoke design
Digital CAD drawings
Highest quality manufacturing and production
Professional and efficient Installation service
12 month guarantee
Guaranteed customer satisfaction
