| Prod Model: |
WLS |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| U Capacity: |
4u,6u,9u,12u,15u,18u |
| Loading Capacity: |
60kgs |
| Width: |
550mm or 600mm |
| Depth: |
450mm |
| Front Door: |
Toughened Glass and Removable |
| Side Panel: |
Removable |
| Service: |
OEM Available |
| Color: |
Black,Gray,White |
| Lock: |
Round Lock |
| Type: |
Network Cabinet |
| Installation: |
Wall-Mounted Cabinet |
Product Description
Product Description

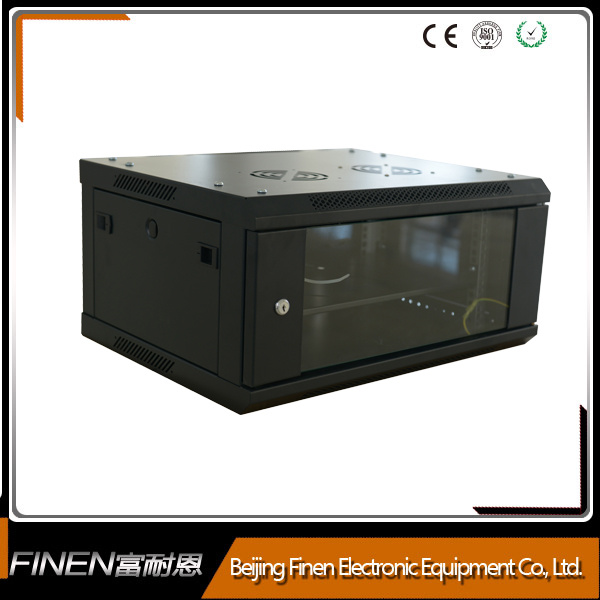

Removable glass front door wall mounted cabinet rack
1). 20 year's production experience.
2). Certificate: ISO9001.
3). Quick delivery(7-10 days)
4)High quality & competitive price
Product Information
1. Feature
1). Loading Capacity: 60kgs(132lbs)
2). Capacity/Rack Units: 4U, 6U, 9U, 12U, 15U, 18U
3). Thickness:
Mounting profiles: 2.0mm(Zinc Plated);
Mounting rails: 1.5mm;
Other enclosures: 1.2mm

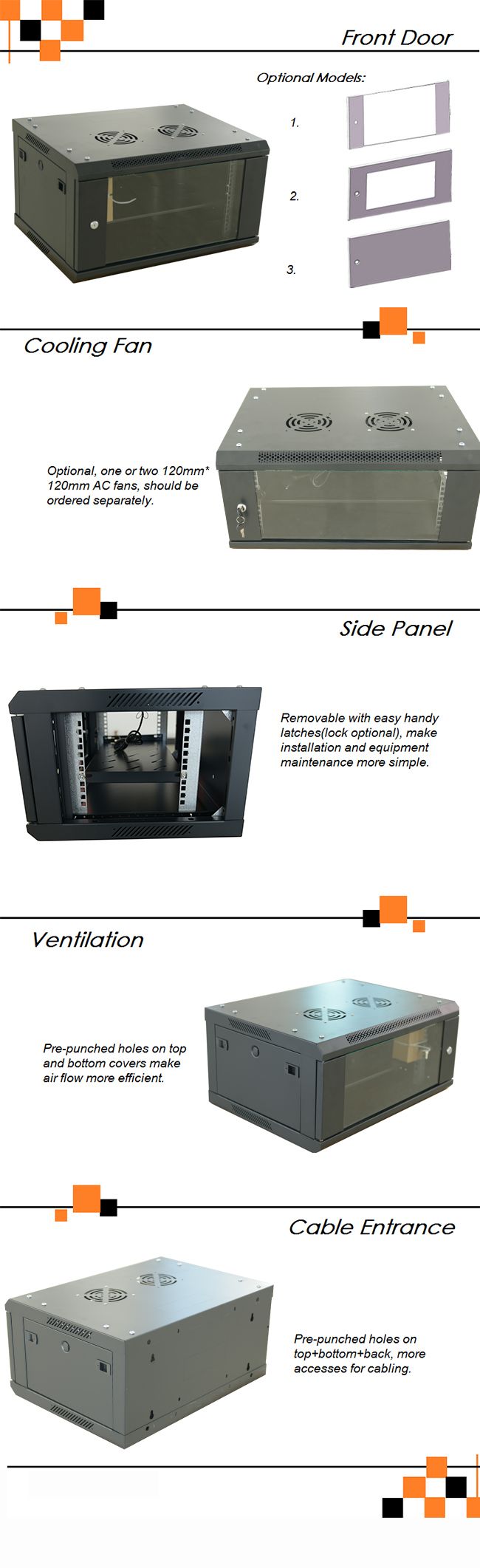

4). Doors: Reversible, tempered toughened glass front door and solid rear doors with round lock
5). Side Panel: Removable Side Panel with Easy Handy Latches or locks, Easy To Install And Maintain (Lock Optional)
6). Colors: Black-RAL9004; White-RAL7035; Grey-RAL7032
7). Vented front and sides for cooling, Excellent Air Ventilation Design with AC 120mm Cooling Fans
8) Pre-punched provision for 1 fan (fan not included)
9). Cooling Fan: Two/Four optional 120mm AC cooling fans
10). Three Ways, Top, Bottom, and Rear Cabling Tunnels
11) Pre-punched holes for cabling
12). Secure, firm and reliable
2. Main Material: SPCC high-quality Cold rolled steel
3. Surface Finish: Degreasing, Pickling, Phosphating, Powder coating.
4. Degree of Protection: IP20
5. OEM service available
6. Standard:
Complies with ANSI/EIA RS-31O-D, IEC297-2, DIN41491: PART1, DIN41494: PART7, GB/T3047.2-92,; ETSI Standard
Recommend Products
FINEN-A2 Series Toughened glass front door and solid rear door with round locks
FINEN-AS Series Toughened glass front door with air holes on door stripe, vented mesh rear door, handle locks, 18U, 22U, 32U, 37U, 42U
FINEN-A3 Series Vented mesh front and rear doors with handle lock, 18u, 22u, 32u, 37u, 42u with capacity 800kgs
FINEN-K3 Series Hexagonal mesh front and rear doors with moon locks
We are always developing the new design according to customer demands.
Network Cabinet Applications
Rack cabinets for Information Technology and telecommunication appliances use:
-Small, Medium and Large Servers
-DVR, Security Equipment and Routers
-Patch Panels and Switches
-Telephone Systems and PABX
-Network and Communications Equipment
-UPS Equipment
-Other Rack Mount Equipment
Who are we?
1). A manufacturer of server rack and network cabinet with 25 years experience
2). 53 skilled engineer and more than 400 workers
3). 35000 square meters workshop
4). Customizing services, OEM services, etc.
All you need to do - take it out of the box and start installing your hardware.
Designed and made from high quality steel, this Rack Cabinet has all the features you need to get your network up and running - FAST! ! !
All Rack Cabinets we manufacture, are built around universal 19" Rack-mount standards - designed to take Rack Mount equipment from other Vendors
Specification
Beijing Finen Electronic Equipment Co., Ltd. Is located in industrial park of Pinggu district, Beijing. We are superior in geographic location and convenient transportation. Finen is a company with the whole line of designing, producing, selling and trading a standard series of products while continually making strides in new product development. Our tenet is "quality first, credit standing paramountcy". Welcome the clients at home and abroad to negotiate and cooperate with us.
We have excellent environment, about more than 3, 000 square meter standard production workshops and about 400 employees. Senior technical staff members are over 65 percent. The laser cutter is imported From German TRUMPF Company, AMADA CNC Press Brake, CNC punching machine and so on. We have automatic powder spraying equipment. All of processes are automation finished in airtight spray powder line.
Our product are widely adopted to the database of computer net, communication net, spaceflight and aviation, computer field, colligate thread and output electric of equipment, broadcast and TV, received series, automatism control, manpower control, monitor series, etc. Finen establishes a home & overseas sales system and earns prestige from consumers.
Our product: Network cabinet, sever rack, control console, TV screen wall, APC (structure) cabinet, (structure) cabinet, (structure) cabinet, distribution box, security equipment and so on.
Based on the advantaged experience and methods of management in developed countries, we have own better methods of management.
Depending on updated scientific management, advanced process design and strict examination measurements, we manufacture excelsior products and welcome all of you for cooperation.
