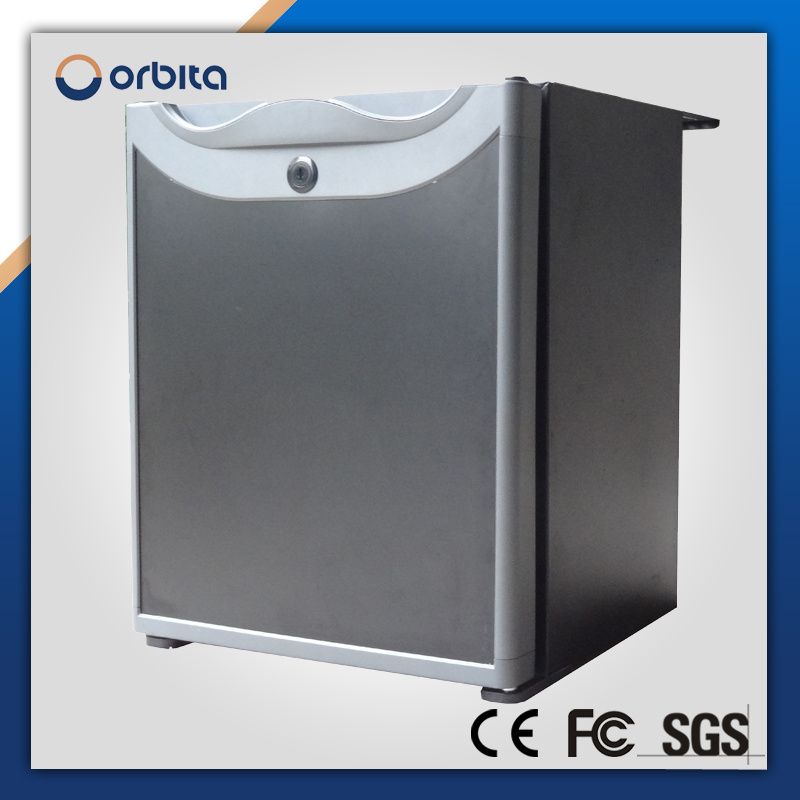

Noiseless Modern Hotel Mini Bar Counter Design

Prod Model:	MB-20
Temperature:	2~11 C
Weight:	14.5 Kgs
Cooling Method:	Absorption
Certificate:	Ce, Rhos, FCC
Voltage:	110V or 220V
Installation:	Mini
Use:	Absorption
Material:	Stainless Steel
Cooling Type:	Absorption
Warranty:	2 Years
Door Number:	Single Door
Type:	Wine Cooler
Door Type:	Sliding Door
Power Source:	Gas
Temperature Control:	Smart Thermostat
Temperature Type:	Single-temperature
Defrost Type:	Manual Defrost
Function:	Freezing
Certification:	SGS
Capacity:	40

Product Description

Production Description:

Application	Hotel, Resort, Apartment, Dormitory, Guesthouse etc.
Dimension(W*D*H)	400*470*517mm
Validity Capacity	40 Litres
Cooling Technology	Absorption
Storage Temperature	0ºC-12ºC (black door), 4ºC-12ºC (glass door)
Input Power	70W/0.32A
Energy Consumption	0.9kW.h/24h
Voltage	AC: 220V/60Hz, 110V/60Hz. DC: 12V.
Type of Controller	Digital
Type of Door Seal	Removable
Lock	Available
Gross Weight	19.2kgs (black door), 21.5kgs (glass door)
Color	Black
Certificates	ISO 9001:2008, CE, EMC, ETL
Key Features	Absorption, No Freon, No Compressor, No Vibration, Noiseless



Model	MB-25	MB-30	MB-40	MB-60
Cool Method:	absorption	absorption	absorption	absorption
Storage Temperature(ºC)	0-12	0-12	0-12	0-12
Input Power(W)	65	65	65	65
Energy Consumption(kwh/24h)	0.9	0.9	0.9	1.2
Validity Capacity(L)	25	30	40	60
Voltage(V)	AC220	AC220	AC220	AC220
Type of controller	Digital	Digital	Digital	Digital
Type of door Seal	Removable	Removable	Removable	Removable
Net/Gross Weight(kg)	16/18	16.5/18.5	18.5/20.5	21/21.5
Shape Size(W*D*H)mm	400*380*480	400*420*480	400*440*550	485*495*590
Package Size (W*D*H)mm	460*480*545	460*480*545	460*500*610	565*575*625
Outstanding feature: High performance with superior absorption new technology,  cooling by ammonia,no moving part, no vibration, noiseless maintenance-free operation.


Absorption VS Compressor


Item	Absorption Minibar	Compressor Minibar
Noise	SILENT, no moving parts, does not disturb guest sleep.	Noise from compressor increases with age. Disturbs sleep and causes guest complaints.
Storage Temperature	0ºC-12ºC	8ºC-15ºC
Vibration	NO VIBRATION, good to store wine.	Vibrates from piston movement, can not be attached without rubber mounts. unit hums and worsens with wear.
Frost	FROST FREE, fully automatic defrosting.	Manual or push button. Requires clean up of water mess caused by melting ice.
Using Type	DESIGNED and ENGINEERED for Hotel use.	Residential use only. Not made for Hotel use.
Energy Consumption	ENERGY EFFICIENT, with special insulation. Under 1 ampere	Energy Abusive. Electric power consumption varies from twice to five times the cost of absorption type.
Environmental	ENVIRONMENTALLY SAFE, no CFCs or HCFC Refrigerant.	Refrigeration gas (R12) is harmful to the ozone layer and must be recovered at the Hotels owners expense.
Life Span	5-20 years.	1-5 years.
Maintenance	NO MAINTENANCE REQUIRED.	Maintenance and periodic cleaning of coils essential.


Certificates
ISO 9001:2008, CE, EMC, ETL,GCC

Company Introduction
Founded in 2004, ORBITA was established to manufacture innovative products to overseas market. Until now, ORBITA products have been used in more than 5,000 hotels ranging from 3 to 5 star covering 100 countries and most of the hotel chains. Varies tests have been conducted to ensure the quality of the products and certificates includes ISO,BHMA,CE,FCC,SASO,SONCAP etc. The 46000 square meter garden factories with complete facility for hotel card locks, in room safe, switches and other hotel accessories enable ORBITA the biggest productivity in the industry in China. ORBITA believes that every customer is a customer for life. producing products of fine quality with our experience and knowledge is our source of pride and customer's satisfaction is our only criterion in service

FAQ:
1.Are the samples available?
Reply:Yeah, we have samples stock in our warehouse.
2.Can the products produced with customers brands?
Reply:Absolutely,we offer OEM/ODM orders.
3.What about the warranty and future service.
Reply:Our period of warranty is one year,All the spare part is free during the period, if it is really
something wrong with your products we can not solve it , we will ask the customer to send the
bad lock back and change a good one to them for free.
4.Can you teach how to use your door lock and system?
Reply:Of course,we offer full training for door lock usage and management system in out factory.
And we provided consistent support after sales, Any questions or problem can contact with us freely.
5.How about your capacity?
Reply:The capacity in here is about 30000 PCS for each month.
6.May I have your payment term?
Reply:The payments term in our factory is:T/T, Paypal, Western union, cash and so on.
7.Can we put the minibar in the wardrobe?
Reply:You can, but better to leave some space in the back of the minibar. It is aborption type and need some space for air circulation
8.what is the advantage of your minibar comparing to other absorption type minibar?
Reply:The cooling technology is from Eu which is the major part of the minibar.
9.Can you minibar make ice?
Reply:Minibar should not not make ice and it has special treatment to avoid frost as well.
10.Does your minibar have a locker?
Reply:Yes, it has a locker on it. Minibar can be locked when tourist group check in.
