| Prod Model: |
TN-002D |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Ral9004&Ral7035 |
| Size: |
18u to 47u |
| Logo: |
Silk Print, Aluminum Sticker, Rubber Sticker |
| Thickness: |
Mounting Profile 2.0mm, Others 1.2mm |
| Packing Style: |
Assembled or Dis-Assembled |
| Static Loading: |
800kgs |
| Shipping: |
Sea, Air, Train |
| Material: |
Steel Sheet |
| Price Validity: |
3 Months |
| Type: |
Server Cabinet |
| Usage: |
Network Integration System |
| Installation: |
Vertical |
| Fan Number: |
Four |
| Certification: |
GS |
| Condition: |
New |
| Capacity: |
18u~47u |
Product Description

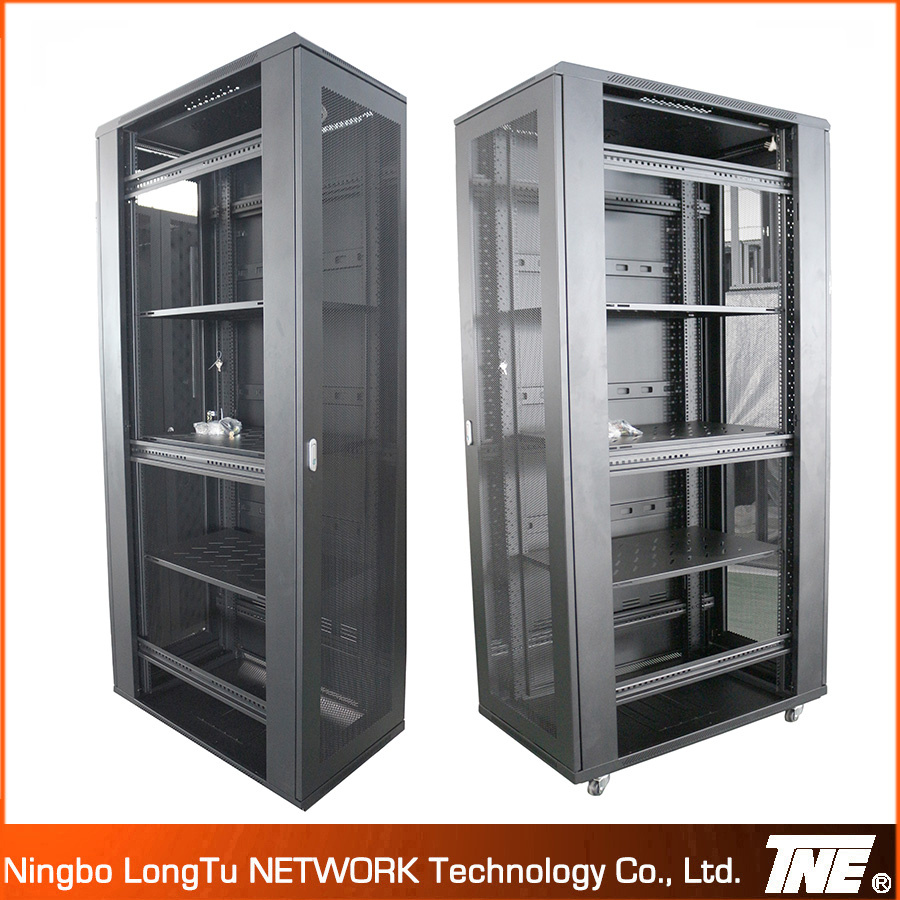

Network Cabinet with Front Flat Mesh Door and High Quality Moonlight Lock
Description
> 19'' server racks, size from 4U-47U.
> Your requirement and design is welcomed.
> Front Door can be Flat Mesh, Glass Door, Arc Mesh Door, Metal Door.
> Rear Door also Optional.

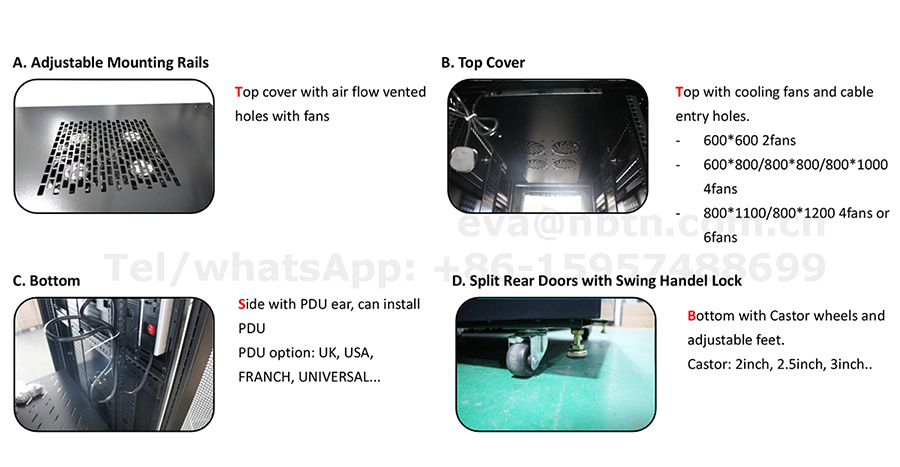

> Top with Fans and Cable entry holes.
> Bottom with Castors and Feet.
Material
SPCC quality cold rolled steel.
Thickness:
Mounting profile: 2.0mm
Mounting angle: 1.2mm(can be at 1.5mm)
Others: 1.2mm
Static Loading Capacity:
800kg
IP rating:
20
Surface finish:
Decrease, Pickling, Phosphoric, Rust prevention and parkerizing,
Pure water cleaning, Static electricity painting
Size
Width: 600mm, or 800mm
Depth: 600mm, 800mm, 900mm, 960mm, 1000mm
Height: 18U, 22U, 27U, 32U, 37U, 42U, 47U.
OPTIONAL ACCESSORY
= fixed/cantilever shelf, sliding shelf, for 600mm, 800mm, 900mm, 1000mm depth cabinet
= 19'' keyboard frame (350mm, 550mm, 650mm, 730mm)
= 1U, 2U support board
= Vertical Cable manager
= 19'' Power distribution unit(PDU)
= 19'' Blanking plate 1U, 2U, 4U
= Heavy duty castor ,Heavy duty castor with braker
= Optional lock for side panels
= Earth kit
and so on..........
Size Form
Model No. | Capacity(U) | Width(mm) | Depth(mm) | Height(mm) |
TN-001
| 18U | 600mm/800mm | 600mm/800mm/1000mm | 988mm |
TN-001
| 22U | 600mm/800mm | 600mm/800mm/1000mm | 1166mm |
TN-001
| 27U | 600mm/800mm | 600mm/800mm/1000mm | 1388mm |
TN-001
| 32U | 600mm/800mm | 600mm/800mm/1000mm | 1610mm |
TN-001
| 37U | 600mm/800mm | 600mm/800mm/1000mm | 1833mm |
TN-001
| 42U | 600mm/800mm | 600mm/800mm/1000mm | 2055mm |
TN-001
| 45U | 600mm/800mm | 600mm/800mm/1000mm | 2188mm |
TN-001
| 47U | 600mm/800mm | 600mm/800mm/1000mm | 2277mm |
