Ningbo Longtu Network Technology Co., Ltd. >> Network Cabinet with Flat Mesh Door

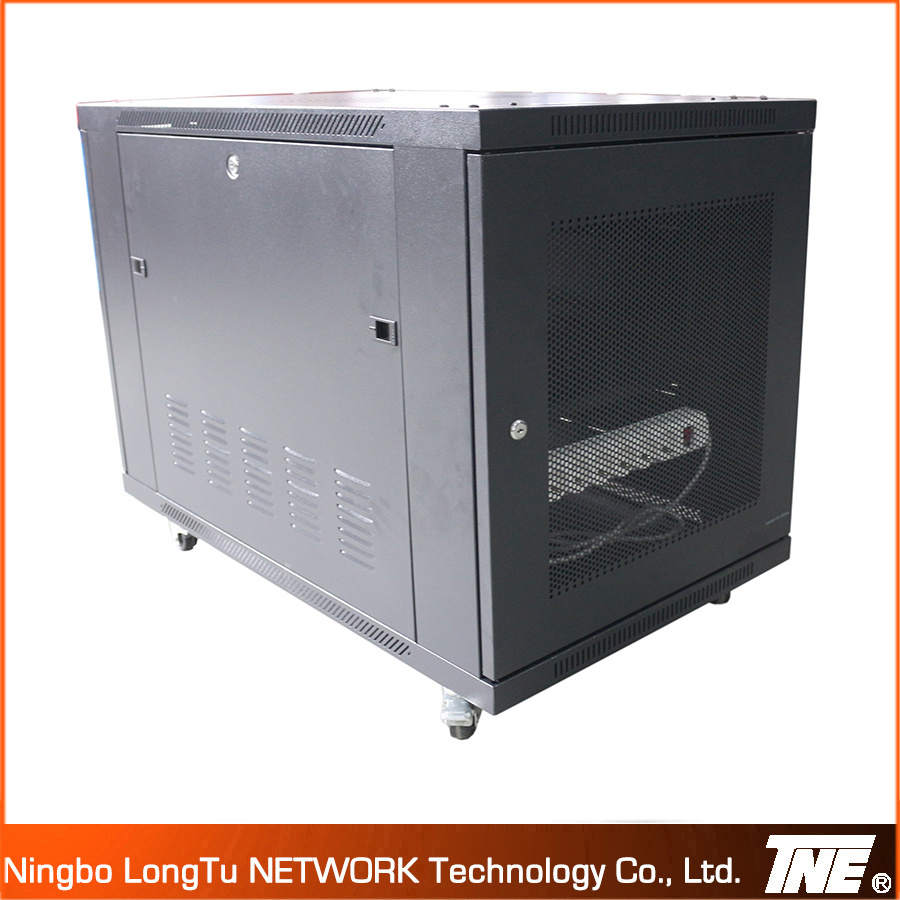

Network Cabinet with Flat Mesh Door

Network Cabinet with Flat Mesh Door
Price: Negotiable/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union,Paypal,Money Gram
Prod Model: TN-001
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color: Ral7035, Ral9004, etc
Logo: Silk Print, Aluminum Sticker, Rubber Sticker
Packing Style: Assembled or Dis-Assembled
Shipping: Sea, Air, Train, Truck
Material: SPCC Cold Rolled Steel
Certificate: CE. RoHS
Type: Server Cabinet
Usage: Network Integration System
Installation: Vertical
Certification: RoHS
Condition: Used
Fan Number: 2 to 6 PCS Fan
Capacity: 12u to 47u

Product Description

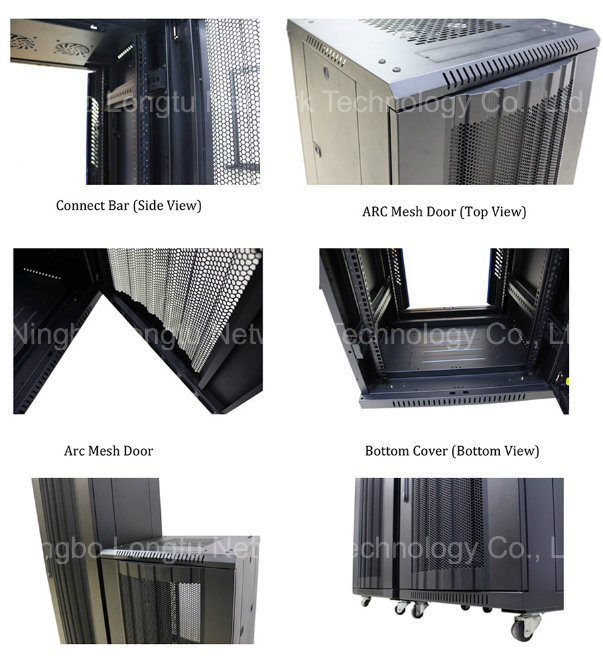

Model No. TN-001 Data Racks for Telecommunication Equipments

> Exquisite design with precise dimension and craftsmanship;

> High-density ARC vented front single &rear dual doors, Lockable door and side panels for system security;

> Fully adjustable vertical mounting rails;

> Swiveling wheels and legs can be jointly installed to withstand up to 800kg maximum static load;

> Lockable wiring holes on top/bottom, size of the large hole at the bottom adjustable;

Standard:

Comply with ANSI/EIA RS-310-D, IEC297-2, DIN41494; PART1, DIN41494; PART7, ETSI standard

Material:

High grade cold rolled steel.

Thickness:

Mounting profile: 2.00mm others: 1.2--1.5mm

Loading Capacity:

Static Loading: 800kgs

Surface finish:

Degrease, acid pickling, rust prevention and Parkerizing, pure water cleaning, static electricity plastic painting.

Degree of Protection

IP20

Body Color:

RAL7035, RAL9004 etc.


Optional Accessory:

> Fixed/cantilever shelf, sliding shelf, for 600mm, 800mm, 900mm, 1000mm depth cabinet

> 19'' keyboard frame (350mm, 550mm, 650mm, 730mm)

> 1U, 2U support board

> Vertical Cable manager

> 19'' Power distribution unit(PDU)

> 19'' Blanking plate 1U, 2U, 4U

> Heavy duty castor, Heavy duty castor with braker

> Optional lock for side panels

> Earth kit

And so on...





Ningbo Longtu Network Technology Co., Ltd. ( Formly named Ningbo Taina Electronics Compay) own a Brand of "TNE" Mainly offer 19'' network cabinets, 19'' server racks, wall mount cabinet and customized Products, built for your specific requirement.

> Year 2003 TNE Founded

> Year 2006 TNE gains Export and Import Right

> Year 2010 TNE Moved the factory to Guanhaiwei East Industrial Zone, Ocupy 6066 Square Meter.

> Year 2014 TNE Changed the name from NINGBO TAINA ELECTRONICS COMPANY to NINGBO LONGTU NETWORK TECHNOLOGY Co., Ltd. Pure Producing Network Cabinet.

TNE have some stable partner From USA, UK, France, Austrial, Egypt, and So on.

TNE mainly Products as below:

Network cabinet

Server Rack

Wall Mount Cabinet

Open Frames

PDU...

TNE Machinery:

CNC Punching Machine: 4 sets

Laser Cutting Machine: 2 sets

Bending Machine: 11 sets

And other small Machines...

TNE owned Painting Line with Environment evaluation certificate

Welcome to contact with us to start the business in Year 2016! !
