| Prod Model: |
TN-002 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Ral7035, Ral9004, etc |
| Logo Type: |
Silk Print, Aluminum Sticker, Rubber Sticker |
| Shipping: |
Sea, Air, Train, Truck |
| Packing Style: |
Assembled or Dis-Assembled |
| Material: |
SPCC Cold Rolled Steel |
| Certificate: |
Ce. RoHS. SGS |
| Type: |
Network Cabinet |
| Usage: |
Network Integration System |
| Installation: |
Wall-Mounted Cabinet |
| Certification: |
RoHS |
| Condition: |
Used |
| Fan Number: |
One or Two |
| Capacity: |
From 6u~ 27u |
Product Description

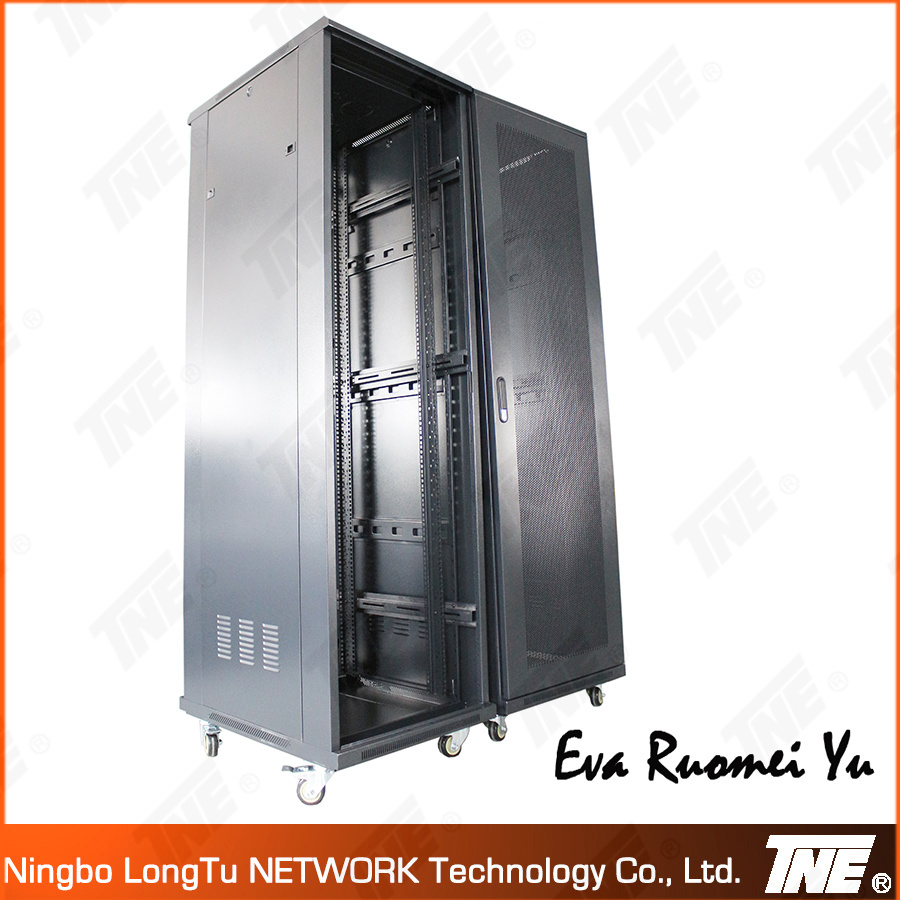

Network Cabinet for telecommunication floor standing 19'' enclosures

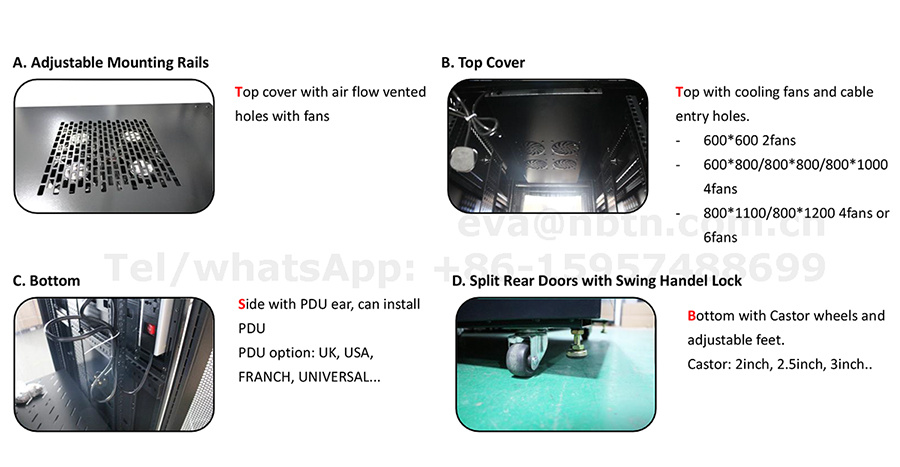

Specifications:- Front Flat Mesh (Perforated) door with Swing handle Lock
- Rear Flat Metal Door
- Exquisite design with precise dimension and craftsmanship;
- Lockable door and side panels for system security;
- Fully adjustable vertical mounting rails;
- Swiveling wheels and legs can be jointly installed to withstand up to 800kg maximum static load;
- Several lockable wiring holes on top/bottom, size of the large hole at the bottom adjustable;
1. Standard
Comply with ANSI/EIA RS-310-D, IEC297-2, DIN41494; PART1, DIN41494; PART7, ETSI standard
2. Material
High grade cold rolled steel.
3. Thickness
Mounting profile: 2.00mm others: 1.2--1.5mm
4. Loading Capacity
Static Loading: 800kgs
5. Surface finish
Degrease, acid pickling, rust prevention and Parkerizing, pure water cleaning, static electricity plastic painting.
6. Degree of Protection
IP20
7. Body Color
RAL7035, RAL9004 etc.
Optional Accessory- Fixed/cantilever shelf, sliding shelf, for 600mm, 800mm, 900mm, 1000mm depth cabinet
- 19'' keyboard frame (350mm, 550mm, 650mm, 730mm)
- 1U, 2U support board
- Vertical Cable manager
- 19'' Power distribution unit(PDU)
- 19'' Blanking plate 1U, 2U, 4U
- Heavy duty castor, Heavy duty castor with braker
- Optional lock for side panels
- Earth kit
Pictures Show
Size Form | Model No. | Capacity(U) | Width(mm) | Depth(mm) | Height(mm) |
TN-002
| 18U | 600mm/800mm | 600mm/800mm/1000mm | 988mm |
TN-002
| 22U | 600mm/800mm | 600mm/800mm/1000mm | 1166mm |
TN-002
| 27U | 600mm/800mm | 600mm/800mm/1000mm | 1388mm |
TN-002
| 32U | 600mm/800mm | 600mm/800mm/1000mm | 1610mm |
TN-002
| 37U | 600mm/800mm | 600mm/800mm/1000mm | 1833mm |
TN-002
| 42U | 600mm/800mm | 600mm/800mm/1000mm | 2055mm |
TN-002
| 45U | 600mm/800mm | 600mm/800mm/1000mm | 2188mm |
TN-002
| 47U | 600mm/800mm | 600mm/800mm/1000mm | 2277mm |
FAQ
1) What is your Payment term?
---TNE accept T/T, L/C, Western Union.
2) What is your Trade term?
---TNE do EXW, FOB, CNF, CIF terms.
3) What is the Loading Port?
--- Ningbo or Shanghai port.
4) What is your MOQ?
---MOQ of most our products is 5pcs, different items will be different. We have indicated the MOQ for each item in the price list.
5) What is your Product Warranty?
---As Europe market, we have CE RoHS and other international safety standard for our products.
---As other market, international safety standard certificate is also be provided.
Ningbo Longtu Network Technology Co., Ltd. ( Formly named Ningbo Taina Electronics Compay) own a Brand of "TNE" Mainly offer 19'' network cabinets, 19'' server racks, wall mount cabinet and customized Products, built for your specific requirement.- Year 2003 TNE Founded
- Year 2006 TNE gains Export and Import Right
- Year 2010 TNE Moved the factory to Guanhaiwei East Industrial Zone, Ocupy 6066 Square Meter.
- Year 2014 TNE Changed the name from NINGBO TAINA ELECTRONICS COMPANY to NINGBO LONGTU NETWORK TECHNOLOGY Co., Ltd. Pure Producing Network Cabinet.
- TNE have some stable partner From USA, UK, France, Austrial, Egypt, and So on.

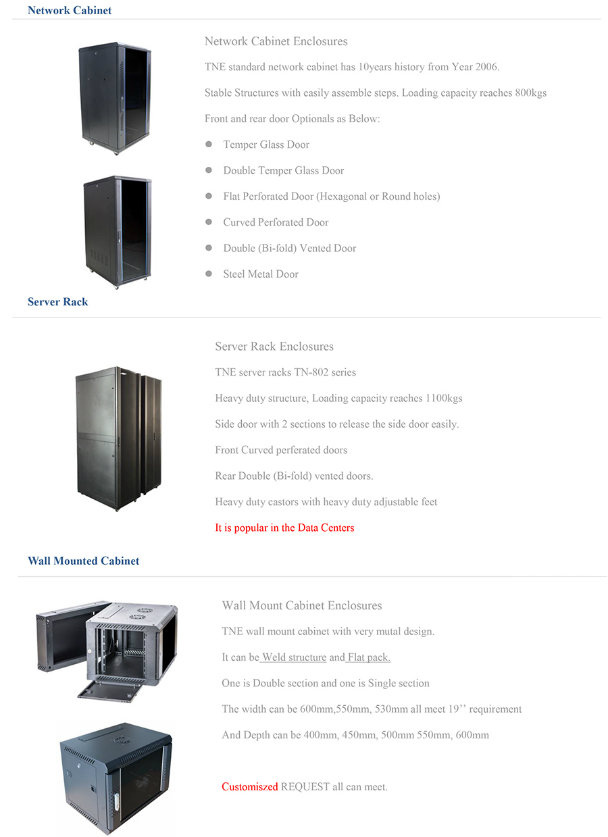

TNE mainly Products as below:- Network cabinet
- Server Rack
- Wall Mount Cabinet
- Open Frames
- PDU...
TNE Machinery:- CNC Punching Machine: 4 sets
- Laser Cutting Machine: 2 sets
- Bending Machine: 11 sets
And other small Machines...
TNE owned Painting Line with Environment evaluation certificate
