| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Brand: |
Emin Nano Glass |
| Place Of Origin: |
Sichuan, China |
| Wear Resistance: |
Level 4 |
| Stain Resistance: |
Level 5 |
| Moh's Hardness: |
Grade 6 |
| Chemical Stablity: |
Anti-Alkali 0.01% ; Anti-Acid 0.05% |
| Radioacticity Exposure Index: |
Internal 0.2; External 0.5 |
| Glossiness: |
99 |
| Water Absorption: |
0.006% |
| Static Coefficient Of Friction: |
0.84 Dry Condition |
| Type: |
Crystallized Glass Stone |
| Surface Finish: |
Polished |
| Form: |
Cut-to-Size |
| Edge Processing: |
Flat |
| Cut-to-Size Size: |
800x800mm |
| Thickness: |
10mm |
| Certification: |
ISO9001, SGS, CE, ASTM, ISO14001, etc |
| Color: |
Beige |
| Usage: |
Commercial, School, Bathroom, Kitchen |
Product Description
Nano Glass Large Slabs, Artificial Stone Tile for Floor
Product Specifications:
1. Brand: EMIN Nano Glass
2. Origin: Sichuan, China
3. Stone Form: customized
4. Size: customized
Both big size and cut-to-size tiles can be provided. Cut-to-size: 900*900, 800*800, 600*600, 300*600, 300*300
The slabs also can be cut as the size you required.
5. Thickness: 10-15mm
6. Color: red and beige
Available color: Ivory, Beige & Coffee,Black
7. Certification: CE, SGS, ISO9001, ISO14001, CTC, etc.
8. Usage:
Industrial: hall way, column, restroom, exterior wall, background wall, etc.

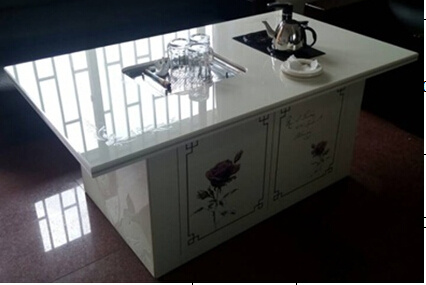

Residential: floor, background Wall, bathroom, kitchen counter top, partitions, tea table, etc.
Civil: city hall, background Wall, welcome board, restroom, etc.
Others: grave monument, craft, trophy, photo Wall, mosaic, etc.
9. Customized: Customized size/sketch plate; wide range of different processed products.
Features:
1. Wear resistance
Moh's hardness of Emin Nano Glass is 6. It's more resistant to scratches than natural stone (marble or granite), and is excellent wear resistance.
2. Stain resistance
Emin Nano Glass does not absorb water and stains, and it's antibacterial. It could be used in Hospital, Lab, etc.
3. Slip resistance
Due to nano structure, Emin Nano Glass's static coefficient of friction is 0.50 in wet condition, 0.84 in dry condition, ease of use.
4. Anti Acid & alkali, Zero water absorption
Owing to our patented nanotechnology, Emin Nano Glass has constant nano inner structure, nonporous. It has a stable chemical stability: Acid k=0.05%, Alkali k= 0.01%;
5. Healthy to human
Less radioactivity, no organic compound additive, antibacterial, etc.
6. Easy clean and maintenance
Advanced Nanotechnology with crystal structure, could be self-cleaned. No chemical cleaner are needed, just a simple detergent can clean the grease stains. Also, it does not need special caring in daily life.
7. Excellent anti-weathering performance
Emin Nano Glass retains its shape, color, gloss for a long period of time due to its stable nano inner structure and high-tech production process.
8. High-temperature resistant
Liner thermal expansion coefficient 5.6×10-6/ºC,Emin Nano Glass can bare high temperature.
9. Customer friendly
Easy secondary processing, could be cut to any size and shape as you needed; Whole body, could be graved customer pictures, photos and paintings with immerse visual effect.
10. Easy to form curved shapes
Curved shapes can be easily formed by heating and softening the glass material. Column, right-angled corner could be provided.
Why choose Emin Nano Glass?
1. Appreciate our patented All-electric-melting-rolling technology, Emin Nano Glass is environmental friendly material, from the beginning to the deep processed products.
2. Excellent features. Refer to above description.
3. Out of the ordinary products.
Multiple colors: ivory, beige, coffee. Black and red will coming out soon.
Thin and thick slab: 7mm~17mm
Large slab: maximum 3500mm length
4. Applications.
Commercial projects: LinFen Airport, Beijing Jishuitan Hospital, Chengdu Metro Line 2, BOC& ICBC/ABC/ RCC Bureau, Yinjing National Tax Bureau, Ya'an Hushan tunnel, etc.
Residential projects: Wuxi Bigui Villa, Nancheng Duhui Villa, Yuanxiang Villa, etc.
Flagship Stores(nearly 30): Beijing, Shanghai, Guangzhou, Wuhan, Xi'an, Nanjing, Chengdu, etc.
5. Professional:
1) We have the only one Chinese Nano Glass/ Crystalline Stone R&D institute, headed by Professor Jinshu Cheng, who is the Inventor of Nano Glass in China.
2) Abundant experience in Industrial & Residential projects.
3) A sound organizational structure: designers, salers, market, brand, service departments, etc.
4) Strict quality control testing system, from the raw material to deep processed products.
5) Good social reputation and Excellent after sales service.
More details about Emin Nano Glass:
| Emin Nano Glass |
| No. | Test item(s) | Test result(s) | Test method(s) |
| 1 | Moh's hardness | grade 6 | JC/T872-2000 |
| 2 | Chemical stability | Acid fastness | k=0.05% |
| Alkali fastness | k=0.05% |
| 3 | Glossiness | 99 |
| 4 | Flexural strength | 57.5MPa |
| 5 | Radioactivity | IRa | 0.2 | GB6566-2010 |
| Iγ | 0.5 |
| 6 | Thermal conductivity | 1.175W(M·K) | GB/T10297-1998 |
| 7 | P-T-P resistance | 3.79×1010Ω | SJ/T10694-2006 |
| 8 | Water absorption | 0.006% | Refer to GB/T3810.3-2006 |
| 9 | Stain resistance | Level 5 | Refer to GB/T3810.14-2006 |
| 10 | Freezing resistance | No crack and peeling | Refer to GB/T3810.12-2006 |
| 11 | Straight bore | -0.17% ~ +0.22% | Refer to GB/T3810.12-2006 |
| 12 | Surface flatness | Side camber | -0.02% ~ +0.05% |
| Warpage | -0.06% ~ +0.01% |
| Center camber | -0.07% ~ +0.01% |
| 13 | Wear resistance | Level 4 | Refer to GB/T3810.7-2006 |
| 14 | Moisture expansion | 0.02mm/m | Refer to GB/T3810.10-2006 |
| 15 | CLTE | 7.88×10-6ºC-1 | Refer to GB/T3810.8-2006 |
| 16 | Impact resistance | 0.78 | Refer to GB/T3810.5-2006 |
| 17 | Absorption by weight | 0.02% | ASTM C97/C97M-09 |
| 18 | Density | 2690 kg/m³ |
| 19 | Abrasion resistance(polished) | 46 | ASTM C241/C241-013 |
| 20 | Modulus of rupture | Dry condition: 63.6 Mpa | Refer to ASTM C99/C99-09 |
| Wet condition: 63.6 Mpa |
| 21 | Compressive strength | Dry condition: 446 Mpa | Refer to ASTM C170/C170-09 |
| Wet condition: 427 Mpa |
| 22 | Static coefficient of friction | Dry condition: 0.84 | ASTM C1028-07 |
| Wet condition: 0.50 |
| 23 | Liner thermal expansion coefficient | 5.6×10-6/ºC | ASTM C531-00(2012) |
FAQ:
1. What is Nano Glass / Crystalline Stone?
Nano Glass, also known as Glass-ceramics, Nanoglass, crystallizednano glass, Nanoglasscrystal, are produced by controlled crystallization of certain glasses-generally induced by nucleating additives.
2. Where can be used?
1) Emin Nano Glass could be wildly used in many places, such as floor, background wall, internal & external wall, stair, column, bathroom, countertop, gravestones, exquisite art objects, etc.
2) Emin Nano Glass' applications:
Commercial projects: LinFen Airport, Beijing Jishuitan Hospital, Chengdu Metro Line 2, BOC& ICBC/ABC/ RCC Bureau, Yinjing National Tax Bureau, Ya'an Hushan tunnel, etc.
Residential projects: Wuxi Bigui Villa, Nancheng Duhui Villa, Yuanxiang Villa, etc.
Flagship Stores(nearly 30): Beijing, Shanghai, Guangzhou, Wuhan, Xi'an, Nanjing, Chengdu, etc.
More applications, please check the Company Show→ Applications in our home page.
3. Please tell me more information about your company?
| Company name | Sichuan Yiming Microcrystalline Technology CO. LTD. |
| Location | Factory: Yijing, Ya'an, P. R. China |
| Marketing Center: Shuangliu, Chengdu, P. R. China. 5 mins drive from Shuangliu International Airport |
| Production base | About 500,000 square meters (70 football fields) |
| Annual output | 2 million square meters |
More information, please contact us.
4. What is the quality of your Nano Glass?
Each process has strict quality test. Make sure you get our best quality products.
We win a good social reputations from many projects, both in Commercial and Residential.
Authority of quality certification.
5. Is there anything I need to know when I'm cutting and Installing?
Emin Nano Glass can be cut by emery wheel cutting machine, portable cutting machine, and other regular cutting machines. Regular floor paving, wall installing. More details, please contact us and check our product Installing Manual.
6. Do I need daily special care?
Different with natural stones and regular artificial stones, Emin Nano Glass does not need daily special maintence.
If there is dirty water, oil, ink, soy sauce, chemical liquids, or any other liquids, you can use paper towel and simple detergent to remove. The liquids will not permeate in to the tiles, and the surface will be as bright as begining.
7. Could you send me some samples?
Yes, we can send you some samples for you to test. Please send us your receiving address, and we will send the samples as needed.
8. What is your delivery time?
Our annual output is 2 million square meters. Daily output is 4500 square meters.
Customized products usually are shipping in one week(decided by the order).
9. How about the packages? carton
Using the fumigation wooden carton and separation paper to make sure safe shipping. Please check the package photos in our web.
10. What's your Shipping & Payment terms?
Shipping: Usually FOB Shanghai/ Shenzhen, we cooperate with professional shipping agents to make sure your orders' safety. EXW, CIF, CFR, etc.
Payment: 100% T/T in advance.
Contact us and leave your message, you will find more surprise.
Yiming Microcrystalline Technology Co., Ltd. Was established in July, 2011, a pioneer and leader in the market of selling medium and high-end green decorative materials, is a high-tech enterprise specializing in Research, Development, Production and Sales of nano glass in China. Yiming devotes to become the production base of Nano Glass in China. We commit to deal with people's healthy living conditions and to become the most honorable environmental friendly high-tech enterprise in the world.
Yiming, the first manufacturer, utilizing high-quality natural granite as raw material and adopting the all-electric-melting-rolling technology which is patented in China, contributes to create a recyclable, sustainable, and healthy decoration plan. Located in Yingjing Ya'an where enjoys a worldwide reputation for the granite named "Chinese Red", Yiming production base is more than 700 mu (about 500, 000 square meters). The current investment is more than 150 million USD. Yiming has world top technology of producing nano glass, and is nano glass designated supplier of China Building Decoration Association (CBDA). Also, we are "Nano Glass Science Institute in China Nano Glass in Architectural Decoration Industry", and honored as standard Pioneer enterprise by Standardization Administration of the People's Republic of China (SAC) and National Development and Reform Commission. In addition, nano glass has been selected in "Green Building Material Product Library" which was written by National Building Material Testing Center, and also has CE, SGS certifications.
EMIN Nano Glass derives the advantages of appearance and performances from glass and ceramic. It has excellent features: Hole free and whole body, stain & wear resistance, customized, slip resistance, acid & alkali resistance, less radiation, etc. It becomes an alternative to natural stone,
Pottery, porcelain and artificial stone. Meanwhile, EMIN Nano Glass recycles the un-renewable natural stones, and does not pollute the environment in production process. It reduces the environmental strain on the planet.
EMIN Nano Glass, Healthy Life. Yiming devotes to bring a better, safer, and healthier living environment to people in all over the world. Making our mother land to restore vitality and energy is Yiming's commitment and responsibility to the world.
