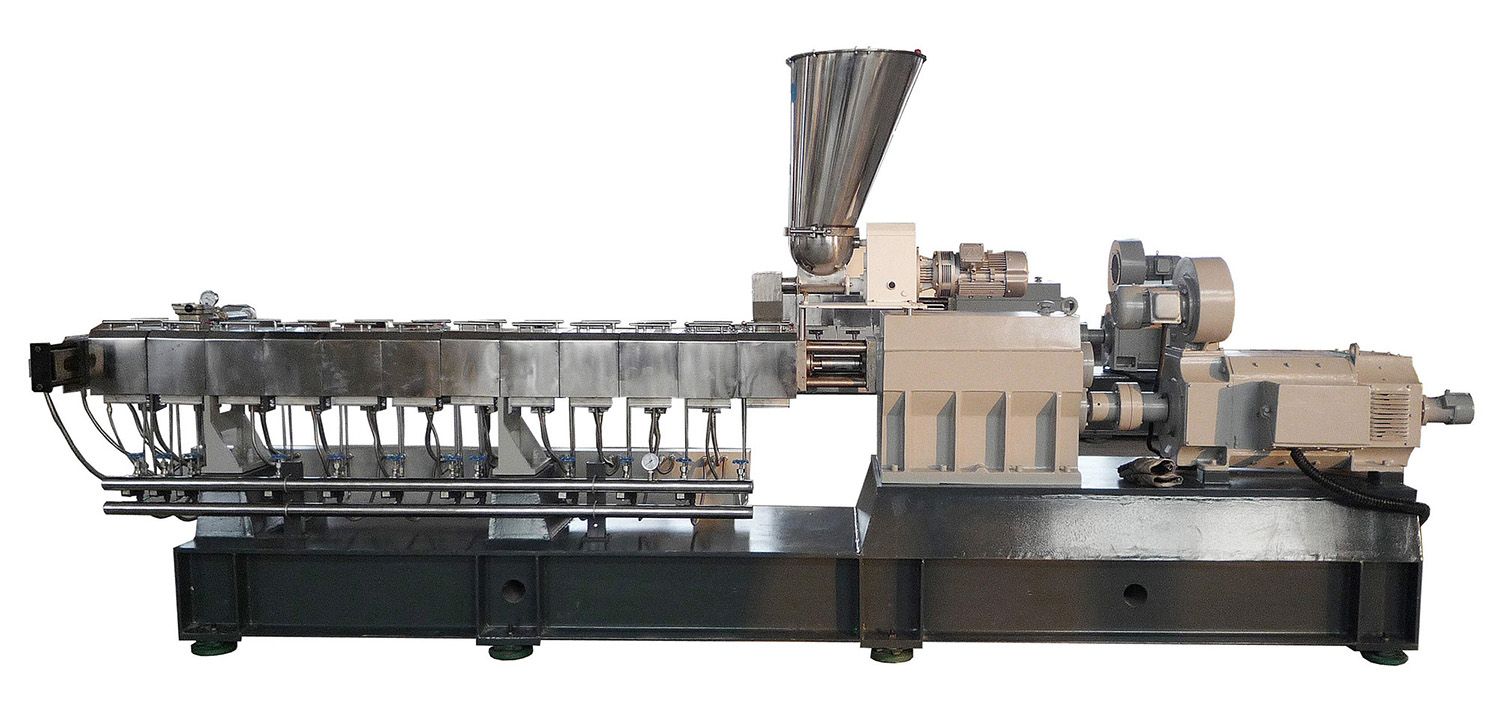

Nanjing Haisi High Quality Plastic Twin Screw Extruder Machine
| Price: |
US $ 38000/Set |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T,Paypal |
| Prod Model: |
tse |
| Name: |
Nanjing Haisi High Quality Rattan Plastic Extruder |
| Gearing Arrangement: |
Cycloidal |
| Screw Speed N(R/Min): |
400-600 |
| Screw Diameter(mm): |
32-64 |
| Output(Kg/H): |
65-150 |
| Rated Power(Kw): |
22-30 |
| Color: |
Customized |
| Brand Name: |
Nanjing Haisi |
| Place Of Origin: |
Place of Origin |
| Pack: |
Wooden Cases |
| Screw: |
Double-Screw |
| Automation: |
Automation |
| Computerized: |
Computerized |
| Certification: |
CE |
| Material Processed: |
Plastic Pellet |
| Plastic Type: |
PS/PP/PE/Pet/PVC/EPS/ABS/Nylon |
Product Description
Nanjing Haisi High Quality Rattan Plastic Extruder Machine
Product Description
1.The Technical Data of TSE 40 : | Mode | Screw Diameter(mm) | Screw Length/Diameter | Screwspeed
N(r/min) |
Main motor
power(kw)
| Output(kg/h)
|
| TSE-40A | 41 | 32-52 | 400 | 22 | 65-110 |
| TSE-40B | 41 | 32-52 | 600 | 30 | 90-150 |
2.Application of compound extruder
TSE-40 PET reclamation pelletizing machinery is best applicable for:
Mixing nature-changing: PE,PP,PS+SBS;PA+EPDM;PP+NBR;EVA+Silicon rubber,etc.
PE,PA,PC,CEP+ABS(alloy);PBT+PET;PP+PE,etc.
Filling nature-changing: PE,PP,EVA etc+aluminum hydroxide,magnesium hydroxide,antimony oxide.
PP,PA,ABS+ferrous powder, sulphuric powder, ceramic powder
Colored machine pellets: PE,PP,ABS,AS,PA,EVA,PET etc+long fires,small fibres, carbon fibres, crystals and so on, etc.
3.Features of plastic extruder
(1) Barrel
euro-style rectangle barrl, reflux refrigeration channel is optimized and disposed,which makes temperature difference in D areas smaller.
innovated design of heater tightened style insures high efficiency of heat transfer and high longevity of heater.
the material is used high quality nitrided steel ,corrosion proof or antifriction with correspounding process.
(2) Screw
---.the screw is made of high tool steel 38 CrMoALA or W6Mo5Cr4V2 by special heat-treatment , which is possessed with high corrosion-resistat and high functions.
(3)Metering feeders
various metering feeders --- single screw ,twin screw ,hollow screw,forced-feeding, side- feeding.
(4) New-style gear transmission system
new-style project of parallel three-axises driving makes the conve axis,convey
chain,decelerate and torque get together ,which keep it compact ,and the key bearings are imported
soakage and spraying lubriation integrate smoothly
technics,strengthening of tooth face,so they can ensure high torque,high precision and low noise
the selecte material of drive components is dainty,including super intention alloy cementiteing steel,cementiting and grinding.
(5)Electric control cabinet
frame structure control cabinet
imported electrical elements
imported temperature control system
imported driving system
interlock and multi-protection
adopting imported PLC(OMRON or SIMES) to achieve optimized process control. stronger function,steady performance and much higher accurancy
it can be also accomplished full-set link-lock protection,trouble safeguard,fault alarm cluing and so on
operation interface on touching screen is visual and marked ,which is brief and easy to use.
(6) Pelletizing system for compound
---various modes of pelletizing,such as water-cooling strand,air-cooling pelletizing,water-ring pelletizing,under water pelletizing.
(7) Horizontal water-ring hot-face pelletizing line
1.Water-ring Pelletizer
2.Water-ring cover
3.Centrifugal dewaterer
4.Vibrating screen with cooling
Packaging & Shipping
Our Services1.Quality guaranteed
2.Support factory visit
3.Technology supports
4.We are the manufactuer

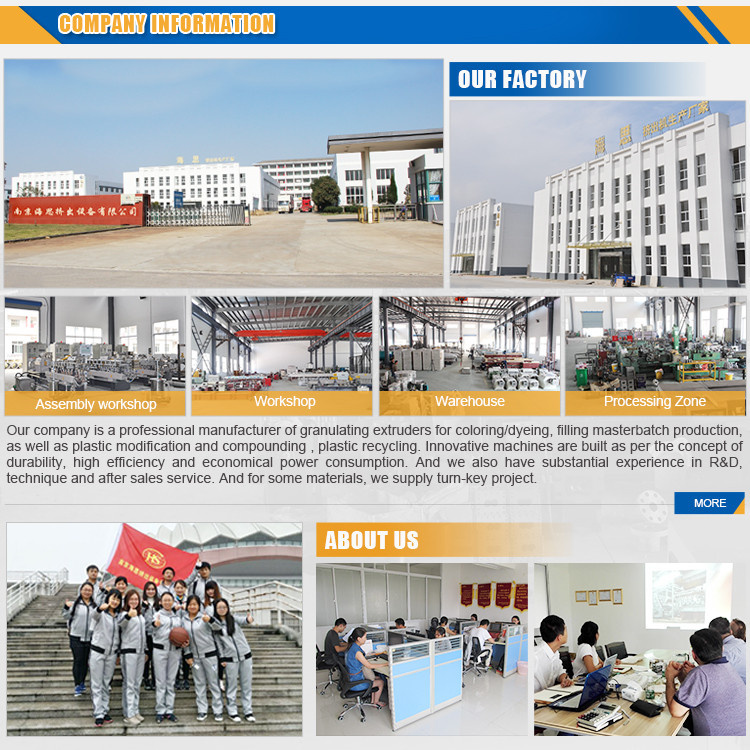

Company InformationWelcome to Nanjing Haisi Extrusion Equipment CO., Ltd.
Nanjing Haisi Extrusion Equipment Co., Ltd. is a High-Tech company. Our firm is composed of a strong team which has substantial experience in R&D, manufacture, technique and sales service and
has specialized in extruder industry for ten years. We are now devoted to highly active single / twin screw compounding extruders and interrelated techniques. According to the material system and technical process, we have achieved the optimization of structural design for mixing equipment and combine electromechanical and technique systems together, which show our many years' experience and
comprehensive techniques.
Our products are single screw extruders, co-rotating twin-screw compounding extruders,two-stage compounding extruders, auxiliary equipment, etc.
Believe yourself, and cooperating with HAISI is your wise decision; believe us ,since "high quality and service" is our promise forever!
FAQ
1. Q: How about Haisi?
R: Nanjing Haisi Extrusion Equipment Co., Ltd. is a High-Tech company. Our firm is composed of a strong
team which has substantial experience in R&D, manufacture, technique and sales service and has
specialized in extruder industry for ten years,leading screw barrel manufacturer in China.
2. Q:What's Haisi capacity?
R:Company is in strict accordance with CE and ISO9001 quality certification system.There are over 200
models of extruders and spare parts.
3. Q:What's the delivery time?
R:for regular size, we have finished stock and semi-finished stock, 2weeks max enough
for customized, normally 3~4weeks.
4.Q:How about Haisi screw extruder quality and price?
R:Germany Technical invested, top quality in China with competitive price and globle after-sale service
5. Q:what's the life time and guarantee buy from Haisi screw extruder?
R:3~5years life time for nitriding ones and bimtallic ones will be longer
One year min. Guarantee.
Introduction and history:
Nanjing Haisi Extrusion Equipment Co., Ltd is a high-tech manufacturing and trading company in China. "Family" is our benchmark. We work efficiently and help each other whenever anyone is in need due to the same target, that is, to make best quality of extruders in China.
Our company is a professional manufacturer of granulating extruders for coloring/dyeing, filling masterbatch production, as well as plastic modification and compounding, plastic recycling. Innovative machines are built as per the concept of durability, high efficiency and economical power consumption. And we also have substantial experience in R&D, technique and after sales service. And for some materials, we supply turn-key project.
Company is in strict accordance with CE and ISO9001 quality certification system for production management. There are over 200 models of extruders and spare parts. Factory has CNC center, grinding machines, cutter, puncher, etc. To meet customers' requirements on extruders and spare parts.
Business scope and achievements:
All kinds of plastic extruder.
Our machines are widely used in China mainland, and have been exported to 20 countries and places over the world. Our annual production capacity is 240 sets plastic extruder in domestic countries and abroad! OEM service offered in granulating plastic extruder industry in consistence with specific requirement from both national and international customers.
Prospects:
Surely you will also get professional machines and characteristic services here. Let's create more together!
Characteristics of our machine:
Euro-style rectangle barrel, reflux refrigeration channel is optimized and disposed, which makes temperature difference in D areas smaller.
Innovated design of heater tightened style insures high efficiency of heat transfer and high longevity of heater.
According to the material and special technics demands, the material of cyliner can use high quality nitrided steel, corrosion proof or antifriction with corresponding process.
Various modes of pelletizing, such as water-cooling strand, air-cooling pelletizing, water-ring pelletizing, under water pelletizing, etc.
The screw elements and kneading blocks are designed, by precise processed, agile combination, with interchangeability, which can fulfill efficient self-cleaning, transmission, compounding, pressure-forming, etc. The screw is made of high tool steel 38 CrMoAlA or W6Mo5Cr4V2 by special heat-treatment, which is possessed with high corrosion-resistand and high functions.
The machines are designed by using the "toy bricks" principle, the screw configuration, barrel setup, L/D or mode of feeding and venting, screen changing, way of granulating, and the control mode can be optimally adjusted according to different material properties and requirements in consideration of the versatility in each general applications.
Metering feeders are equipped with single screw, twin screw, hollow screw, forced-feeding, side-feeding system, etc. To meet different requirements of feeding, such as powder, pellet, pump and liquid material.
New-style gear transmission system:
New-style project of parallel three-axises driving makes the convey axis, convey chain, decelerate and torque get together, which keep it compact, and the key bearings are imported.
The computer designs to potimize gear parameters and strenghthen safe overmeasure.
The selected material of drive components is dainty. Including super intention alloy cementiteing steel, cementiting and grinding technics, strengthening of tooth face. So they can ensure high torque, high precision and low noise.
Soakage and spraying lubriation integrate smoothly.
