| Prod Model: |
pallet rack |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Surface Treatment: |
Plastic Spray or Baked Paint Finishing |
| Color: |
as Required |
| Pitch: |
75mm |
| Feature: |
Corrosion Protection |
| Connecting Way: |
Bolted |
| Operation: |
by Forklift or Stacker |
| ODM: |
Yes |
| OEM: |
Yes |
| Type Of Company: |
Manufacturer |
| Loading Port: |
Nanjing |
| Material: |
Steel |
| Structure: |
Rack |
| Serviceability: |
Common Use |
| Mobility: |
Adjustable |
| Closed: |
Open |
| Development: |
New Type |
| Weight: |
up to 4500kg |
| Height: |
Selective |
Product Description

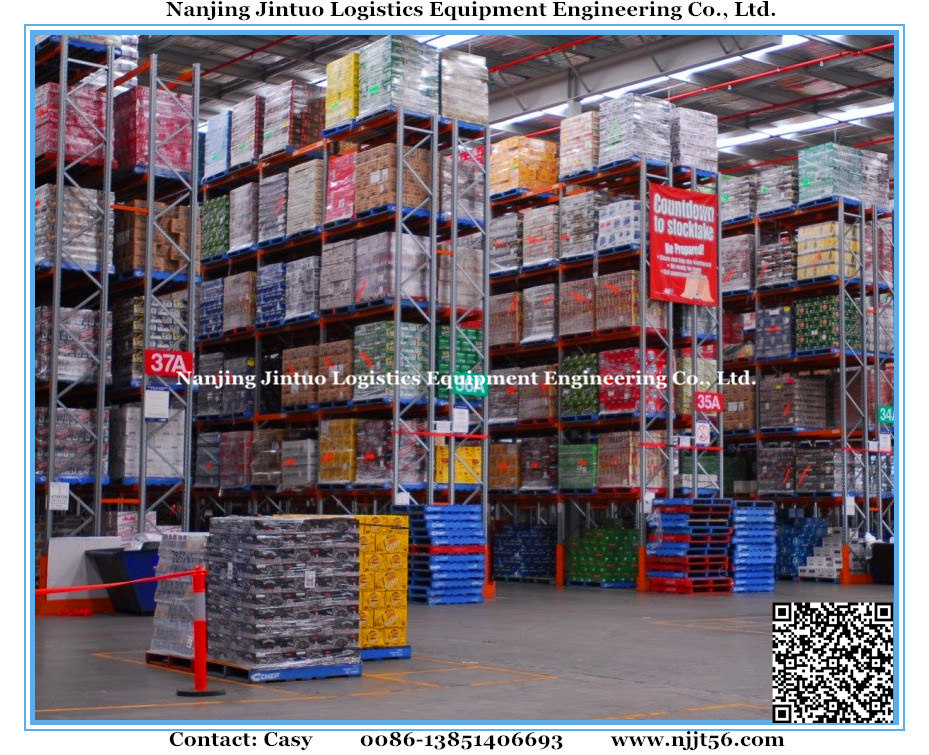

Muti-Levels Warehouse Storage Steel Beam Racking for Industry
This pallet rack is the most cost effective storage system with the lowest equipment and capital costs. It provides direct access to all pallets for 100% accessibility and good stock rotation.
Features:
(1) Excellent in quality and beautiful in appearance with high quality steel.
(2) Surface: Power coating. Smooth surface, do not rust, be anti-corrosive, non-toxic.
(3) Available with large loading capability: 1000KG-5000KG/Layer,
Large load bearing: 8000KG-12000KG/Bay.
(4) Beam levers are adjustable in 75mm pitch interval.
(5) Different sizes, various specifications and colors are available according to
Customers' different needs.
(6) Popular in South America, Europe, Australia and Asia etc.
(7) OEM orders are welcome.
Our Storage Rack Advantages
1. Color and size can be adjusted according to your requirements.
2. Upright and beam is formed by high-quality cold rolled steel, with an omega shaped section to make sure they are very strong.
3. Box beam or step beam used. Beam can be freely adjusted by pitch 50mm or 75mm.
4. Connection of the upright and beam is by wedging, equipped with safety pin to make sure of the safety.
5. Rich accessories: Upright protector, guide rail, frame barrier, row spacer, wire decks, steel shelf, etc.
6. Stable structure, large loading capacity, convenient sorting.
7. Compatible with most type of handling equipment and building structures.
8. First level pallets can be placed on the floor.
9. Easy to install and dismantle.
Our Advantages
1. High and stable quality.
2. Delivery timely.
3. Excellent rolling technology and patents
Contact information
Name: Casy
Tel: (+0086)-13851406693, (0086)-025-85363177
Fax: 0086-025-86109278
Remark:
We are very professional in producing various pallet racking, long span shelving, cantilever racks, rivet shelving, drive in racks, steel mezzanine, carton flow racking and other related storage equipments.
Frame | Height (2-13m) | Depth (600-1,400mm) |
| Upright section: 80x60; 90 x 70; 100 x 65; 120 x87mm |
| Thickness: 2.0/2.3/2.5/3.0mm |
| Beam | Length (1200-4000mm) , popular size: 2300,2500,2700,3200,3600mm |
| Beam section: 80 x 50; 100 x 50;110x50; 120 x 50; 140 x 50mm |
| Thickness: 1.4--1.5mm |
| Load capacity | 1-4Tons/Layer |
| Others | - Pitch: 75mm
- Delivery time: 14-20 days according to quantity
- Payment term. T/T or L/C at sight
- Necessary accessories: free(bolts & nuts, base plate, etc)
- Packing: stretch film & carton
- Surface treatment: powder coated, galvanization
- Production capacity: 50,000T/month
- Available in various colors/specifications/sizes |
Nanjing Hengtuo Storage Equipment Co., Ltd. is an enterprise who always commits herself to develop convenient logistics equipment and efficient storage equipment. Our goal is to build a leading company in logistics. The enrollment of our company capital is more than USD 140, 000 and the total investment is over USD 2, 700, 000. We have customers from all over the world, such as southeastern Asia, Japan, Europe, Africa and so on.
Our company covers an area of over four hectares with a building space of over 5800 square meters. We have more than 160 staff, among whom more than 10 people are professional senior engineers. Based on the foreign advanced technology and combining Chinese storage equipment with features of automatic production line, we have developed
1) Logistics containers, such as a variety of storage cages, pallets and packing materials;
2) a series of rack products such as Install-able Assemble Racks, Through Type Racks, Supermarket Racks, Attic Type Racks, Flow-through Racks,;
3) Station Equipment: Pallets, Metal Boxes, Tool Cabinets, Case Racks, Trucks, Stacking Frames;
4) Handing Equipment: Pallet Truck, Trolley, and Handcart.
Our products are widely used in exhibitions, supermarkets, companies, banks, hospitals, factories, libraries, warehouses and so on.
We insist on the scientific management principles: "Live with best quality and develop with good reputation". Emphasizing on quality and reputation is our weapon to keep up with the status in this field.
We will be glad to provide good products and perfect service to you and welcome your visit and cooperation.
