| Prod Model: |
3001C\3001D\3001E |
| Length: |
2000+-50mm |
| Width: |
480+-20mm |
| Elevation(up/Down): |
(750-1000)+-50mm |
| Back Board Fold Upward: |
>=75 Angle |
| Style: |
Modern |
| Material: |
Metal |
| Folded: |
Folded |
| Wood Style: |
Metal |
Product Description

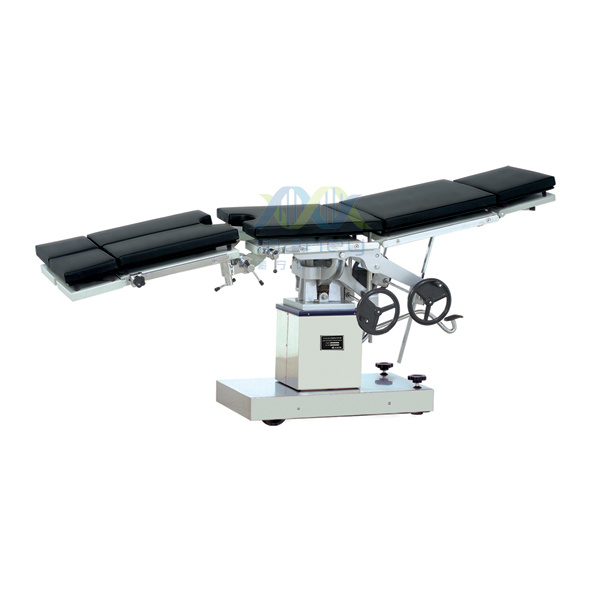

3001 series operating table features with integrated multi-function is suitable for various operations conducted by medical unit.
Features:
1.3001D type base seat and upright column covering are made of high quality 304 stainless steel with double beds , which is anti-corrosive and can be easily cleaned.
2.3001E type base seat and upright column covering are made of 304 stainless steel with double beds, split leg type.
3. Imported Y type sealing ring with good sealing performance and is durable.
4.Rotary brake device which is easy for moving operating table.
5.All actions are controlled on both sides.
Technical Specifications
| Length | 2100±50mm |
| Width | 480±20mm |
| Maximum and minimum height of the platform | 750-950±50mm |
| Back board fold upward | ≥75° |
| Backboard fold downward | ≥18° |
| Forward | ≥20° |
| Backward | ≥15° |
| Leftward and Rightward | ≥18° |
| Head board fold upward | ≥45° |
| Head board fold downward | ≥90° |
| Leg board fold downward | ≥90° |
| Leg of the board split(3001C,3001E) | ≥180° |
| Waist board lifting | ≥120mm |
Accessories:
A pair of shoulder support frame,a pair of waist support frame,a pair of arm resting frame,a pair of leg support frame,a screen frame,a pair of pedal foot board,a waistband.
Note:
3001C,the base is made ofcoldboard which is treated by static spray, split leg type and dischargeable.
3001D,the base seat and upright column covering are made of high quality 304 stainless steel with double beds.
3001E,the base seat and upright column covering are made of high quality 304 stainless steel with double beds, split leg type and dischargeable.
