| Prod Model: |
THR-EB5105 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Certificate: |
ISO, TUV, CE |
| Bed Head And Foot Board: |
ABS Material with Nurse Controller |
| Bed Side Rail: |
ABS Material with Nurse Controller |
| Motor: |
4 Units Linak Motor |
| Power: |
110-220V, 50-60Hz |
| Manual Controller: |
1 PC Hanging on The Bedside Rails |
| Weight Capacity: |
250kgs |
| Warrnaty: |
18 Months |
| Package: |
Wooden Case |
| OEM: |
Available Electric Hospital ICU Bed |
| Material: |
Metal |
| Type Of Hospital Bed: |
Electric Bed |
| Folded: |
Folded |
| Using Ambient: |
Hospital |
| Certification: |
CE |
Product Description

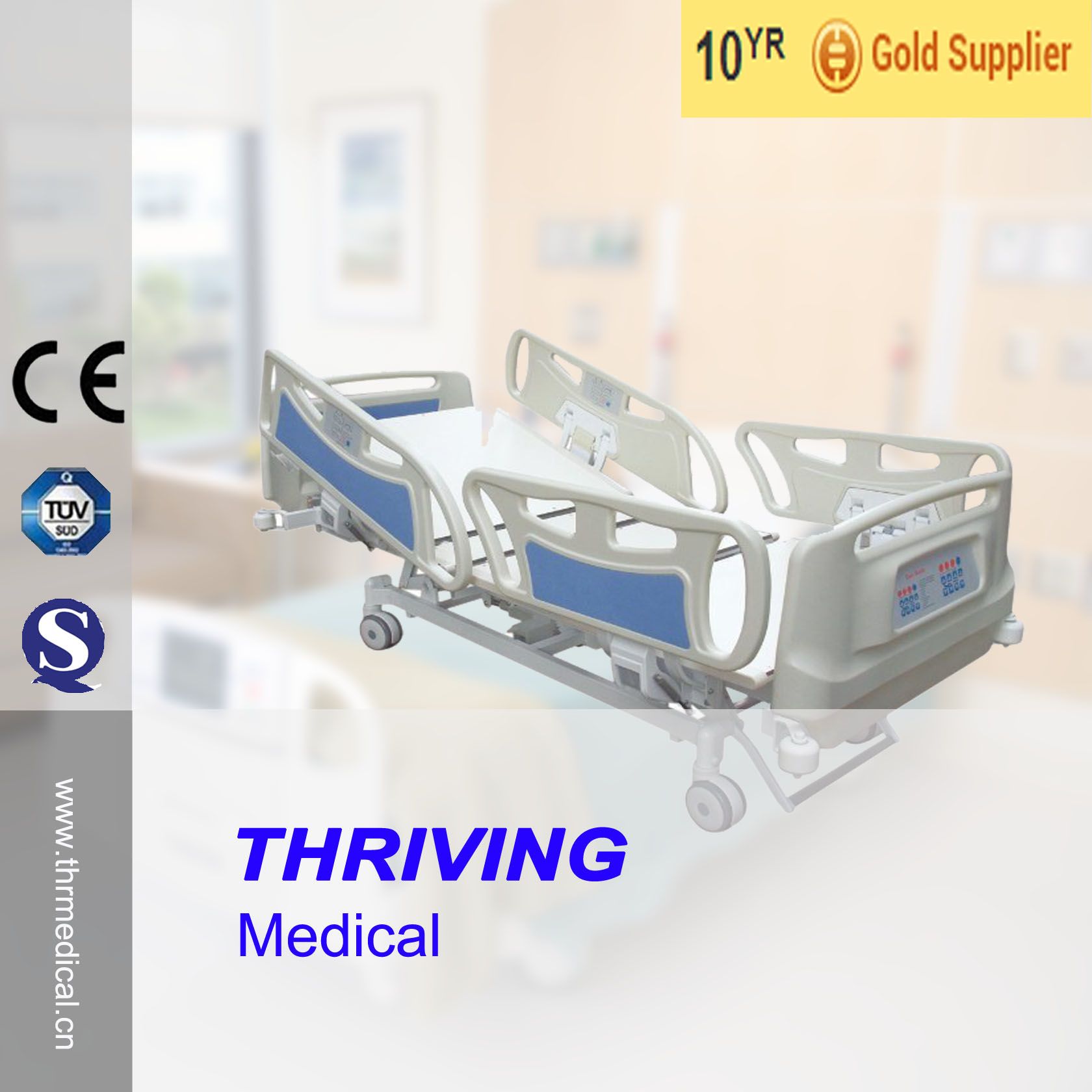

THR-EB5105 Multi-function electric hospital ICU bed
Specification:
Dimension: 2230*990*450/720mm
Patient touching surface 90*196cm
Top Coat: Electrostatic Powder coating
Bed Frame: Cold-Rolled Steel Tube
Bed Base: Cold-Rolled Steel Sheet
Bed base may X-ray
Maximum safe load 250kg
Nurse Controller at bed end board (key-press)_1 unit
Rail Controller (key-press)_4 units
Imported Linak Electrical Motor-4 units
Angle Scale---2 units
Manual CPR Handle_1 unit
Drainage Hook_2 units
I. V. Pole with 4 hooks_1 unit
Diameter 125mm Central Silent Castors_4 units
Detachable ABS Head and Foot Board_1 pair
ABS Side Rail Move with Bed Base Simultaneously_2 pairs
Waterproof ventilative mattress (optional)
Function:
1. Height adjustment (450mm-720mm)
2. Angle of backrest's upward 0° - 75°
3. Angle of legrest's upward 0° - 45°
4. Trendelenburg/Anti-trendelenburg ± 10°
5. Auto contour function:
Allows back board and thigh board to adjust simultaneously into a chair position.
6. Emergency stop function: The bed can be stopped at all times and positions for one button.
| SPECIFICATION |
| Dimension | 2230*990*450/720mm |
| Patient touching surface | 90*196cm |
| Top Coat | Electrostatic Powder coating |
| Bed Frame | Cold-Rolled Steel Sheet, may X-ray |
| Maximum safe load | 250kg |
| ACCESSORY |
| Nurse Controller at bed end board | I unit |
| Rail Controller | 4 units |
| Angle Scale | 2 units |
| Manual CPR Handle | 1 unit |
| Drainage Hook | 2 units |
| I. V. pole with 4 hooks | 1 unit |
| Diameter 125mm Central Silent Castors | 4 units |
| Detachable ABS Head and Foot Board | 1 pair |
| ABS Side Rail Move with Bed Base Simultaneously | 2 pairs |
| Waterproof ventilative mattress(optional) |
