| Prod Model: |
SII-HDMS05 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Putty, Light Grey, Beige, White |
| Surface Trement: |
Epoxy Powder Coating |
| Quality Warranty: |
3 Years |
| Delivery Time: |
2-3 Weeks |
| Port: |
Shen Zhen Port |
| Door: |
4 Doors |
| Material: |
Metal |
| Open Type: |
Push-Pulling |
| Usage: |
Office |
| Customized: |
Customized |
Product Description

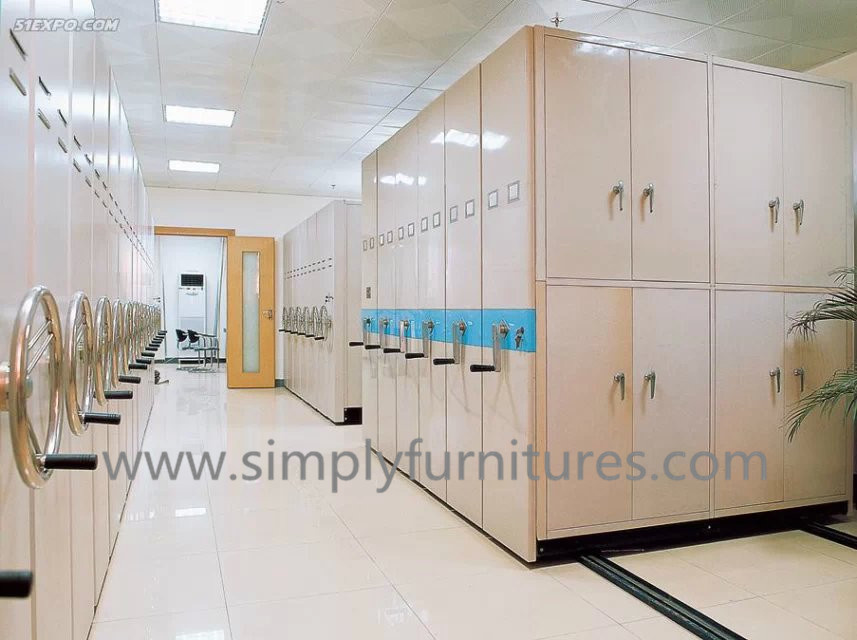

What is Mobile shelving
Mobile Shelving is a shelving system which mounted on moving carriages. It is a perfect & high efficiency storage solution maximum uses of your limited floor space.
All archive shelving units can be locked & packed when access is not required, but when needed, an aisles can be created. All the rolling shelving units have dust proof device, make sure the whole units are dust free
The benefits you can get by using mobile aisle shelving systems
. the compacts nearly saves you 40% spaces while the storage capacity remains same. That means it saves you 40% space real estate cost.
. If business growns and needs more spaces/rooms, movable shelving is a better, easier & economical way than moving
. Make sure that all your documents are catalogued making it much easier to be find when needed
Mobile shelving systems supplier, high density mobile shelving manufacturer from Simply
Why choose simply?
1. All filing shelving can be customized/tailored, sizes/dimensions & the designing, we can do as per you requested
2. Industry Solid bearings & tracks are what we are using
3. A variety of accessories for your choice
4. more than 10 years manufacturing experience
we have been manufacturing compact filing system more than 10 years, our professional teamswill offer you suitable & perfect solutions
we are not offering products, we are offering storage solution
Get the tailored & most suitable storage solutions at a price you'll love, please contact us now
Compactor Storage Systems provides a solution to your storage needs and increase storage efficiency with systematic filing and retrieval of storage materials.
Product Festures
1. mobile shelving t is Effortless push-pull operation
2. Economical way to maximise your valuable storage space
3. Units can be easily extended, altered or relocated to support your changing storage needs
4. Available in single or tandem configurations
5. Low profile tracks are trolley and wheelchair friendly
6. Each system is lockable with a central lock when packed together
7. The built-in safety locks for mechanical type cabinets to safeguard users from accidentally trapped in aisles
Mobile shelving system mechanical operation wheel ,basement and rail details
Main parts and Optional accessories: Multi-purpose shelf, cabinet, pull-out desk top, hanging rod, pull-out frame, pull-out drawer, divider, , disk drawer, platform, sliding door
Benefits of Mobile filing cabinet / mobile shelving systems
Mobile filing cabinet / mobile shelving all the shelves together to one side and leaving only the required gangway, mobile shelves eliminate unused aisle space.
Compared to static shelves, Mobile filing cabinet/shelving systems increase filing storage capacity by up to 100% and save up to 45% of the floor space occupied by the equivalent quantity of static shelving.
Mobile filing cabinet/shelving systems can offer a convenient solutions in small office
environment to improve the overall document management system.
Document Protection: access and retrieval in mobile shelving can be made secure blocking the units together and by use of lockable doors on the external units;
Security: Lockable hand wheels in mobile shelves filing systems ensure that the opened aisle is locked and the adjacent mobile shelves units cannot close, whilst operator is accessing the gangway.
Steel Mobile Filing Storage Cabinet/ Movable Mass Shelf /Compact shelving System details:
| Parameter Specification : |
| Types: | Manual | Mechanical Wheel | Mechanical Handle |
| Material : | Electyolytic Galvanized Steel |
| Surface treatment: | Epoxy Powder Coating |
| Dimension : | Height : | 2150mm |
| Width : | (905*N)+165mm (N=number of Bays) |
| Depth : | Fixed Unit : 450mm |
| Movable Unit : 450/650/850mm |
| Shelf Size : | W845xD395xH38mm(for 450/850); | W845xD295xH38mm(for 650); |
| No. of Shelf | Single Fixed /Single Movable =4n |
| Double Movable =8n |
| Aisle Size : | 600-1000mm |
| Loading per Shelf: | Reinforced Shelf : | D295mm/85kg ; D395mm/100kg |
| Multi-purpose Shelf : | D395mm/70kg |
| No. of Rails : | 1-3Bays : | 2pcs | 4-5Bays : | 3pcs |
| 6-7Bays : | 4pcs | 8Bays : | 5pcs |
| Thickness: | Base | Back panel | Top panel | Front panel | Side panel | Shelf | Post | Rail |
| 2mm | 1mm | 1mm | 1mm | 1mm | 0.8mm | 1.5mm | 2mm |
| Lock : | Steering wheel with brake lock ,more safety |
| Post | 50x50mm square tube post of double plate with slots in 25mm increment |
| Bumper : | Natural rubber of 30x16mm |
| Rail : | Made of 25mm concrete steel with 0.8mm stainless steel sheet coating |
| Wheel : | Iron die casting with anti-rust zinc coating |
| Loading : 1000kg / Wheel |
| Standard model of mobile filing shelving |
| Type | Bay numbers | Single fixed | Single movable | Double movable | Double Movable |
| Manual | 1 | SFP450-1 | SMP450-1 | DMP650-1 | DMP850-1 |
| 2 | SFP450-2 | SMP450-2 | DMP650-2 | DMP850-2 |
| Mechanical | 1 | SFM450-1 | SMM450-1 | DMM650-1 | DMM850-1 |
| 2 | SFM450-2 | SMM450-2 | DMM650-2 | DMM850-2 |
| 3 | SFM450-3 | SMM450-3 | DMM650-3 | DMM850-3 |
| 4 | SFM450-4 | SMM450-4 | DMM650-4 | DMM850-4 |
| 5 | SFM450-5 | SMM450-5 | DMM650-5 | DMM850-5 |
| 6 | SFM450-6 | SMM450-6 | DMM650-6 | DMM850-6 |
| 7 | SFM450-7 | SMM450-7 | DMM650-7 | DMM850-7 |
| 8 | SFM450-8 | SMM450-8 | DMM650-8 | DMM850-8 |
| Standard Depth: ( D ) | 450mm | 450mm | 650mm | 850mm |
| Standard Hight: ( H ) | 2150mm |
| Standard Width: ( W ) | 905*N (N=number of Bays) |
| Thanks for your concern ! |
To be a subsidiary of Simply International Industrial, Dongguan Chengmei Hardware Co., Ltd. Established in 2008, specialists in versatile Steel & Stainless Steel storage furniture which widely used in the office, home, pharmacy, food preparation and many other industries. Simply manufactures top quality storage systems using the high quality electrolytic galvanized steel & Stainless Steel and highly skilled professionals.
We have invested a lot on modern Machines, include: 300 meters long automatic power coating production line, "AMADA" Automatic punch machines, CNC punching machine
The material we are using is Electrolytic galvanized steel for all office furniture products, which ensures the products have much longer life-circle.
With modern machines and high quality raw material our products give a high-standard impression to customers. And have gained a good reputation among customers.
With our extensive range of Steel storage Furniture, Simply can manufacture as per your designing & requirements.
For more information about our storage furniture, and to request a free quotation email sales@simplyindustrial. Net or call us on 0086-769-22200111.
