| Prod Model: |
JY-768 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Optional |
| Size: |
Bespoke |
| Structure: |
Steel |
| Operation: |
Manual or Motor-Driven |
| Certificate: |
Ce ISO SGS |
| Place Of Origin: |
Chongqing |
| General Use: |
Telescopic Seating System |
| Model Number: |
Jy-768 |
| Specifi Use: |
Telescopic Seating System |
| Seat Material: |
Fabric |
| Material: |
Fabric, Steel |
| Kind: |
Grandstand |
| Usage: |
Auditorium, Stadium, Gym, Race Course |
Product Description

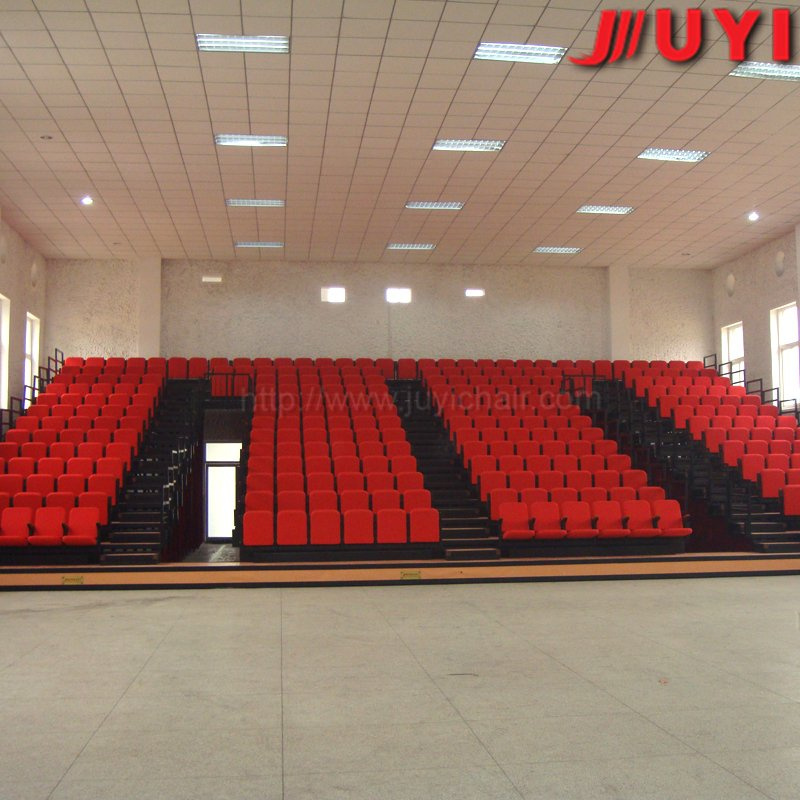

Motor Driven Telescopic Seating System with Ergonomic Foldable Chair for All Sports Court
PRODUCT DESCRIPTION |
Product Name |
Telescopic Seating |
Model No. |
JY-768 |
General Use |
Auditorium, Theatre, Cinema, School, Retractable grandstand ,School, TV Station Showroom , Stadium, race court, etc. |
Color |
Optional |

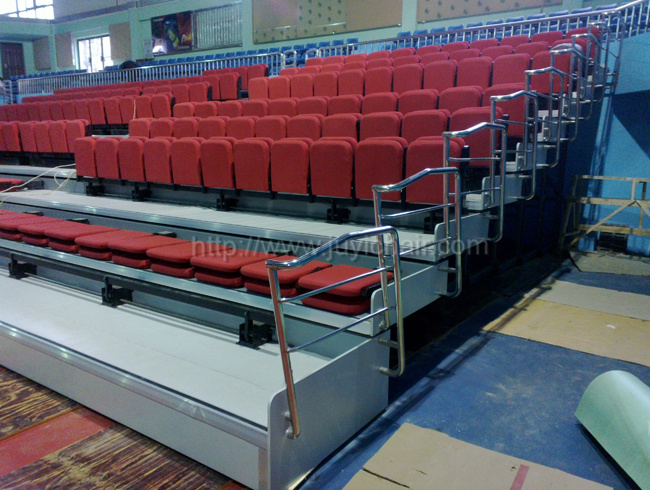

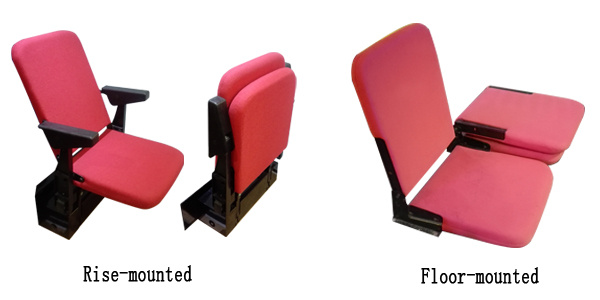

Specifications | Telescopic grandstand platform with soft chair, floor mounted system. The guardrail on the two sides is made round bar with surface galvanized and powder coated. Special design, it turns to be a ladder after pull out, and superposed after push in. It can improve the using rate of the space. The platform adopts the high-quality steel while the front edge adopts the duralumin. Motor-driven and manual operation could be chosen. Step material: 18mm thick strong plywood. Step frame and structure: strong aluminum frame, European (Germany) quality. Supporting structure: strong steel tube with power coating. Lower backrest, Medium backrest and higher backrest can be chosen. Cushion seat and plastic seat are optional. Chair with armrest. Foldable chair, foldable seat. |
Parameter | Walk speed : 75mm/s Fixed position : ±10mm Power of motor : 0.37kw Power source : AC 380V 50HZ Width of each row board : 900mm Loading pressure : 300kg/M2 Loading of wheel : ≥ 250kg/pc |
Packaging Details |
CKD in carton,120pcs/20GP 300pcs /40HQ |
MOQ |
100pics |
Delivery Time |
25-30 Days |
Output |
5000pcs/Month |
Loading Port |
Chongqing |
Payment |
T/T L/C |

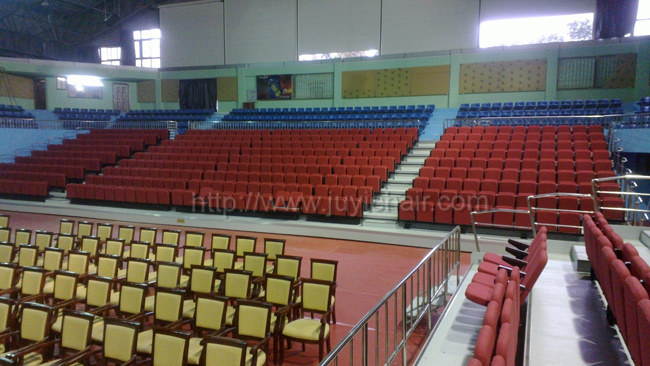

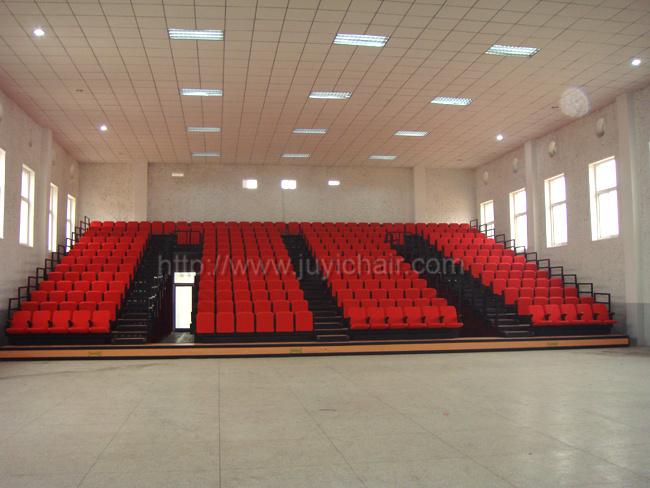

JY-7series telescopic stand is pulled and extended into a shape of steps. The audience can use it to enjoy programmes comfortably. When it is folded into a shape of stack up. It occupies a small part of space and makes room for pther uses. Therefore, it is widely used in stadiums, TV studios and all kinds of multi-functional activity places.
The Telescopic stand contains manpower and electric Telescopic stand.
Structure design, beatiful style, big load, reliable safety measures and accurate locatin.
They have advantages like easy operation, convenient repair, low noise
Our Company:
JUYI metal structure grandstands systerm meet the stander of green environmental protection,energy conservation,emissions reduction and recycling economic policy,the structure systerm has the factory manufacture,light weight,low cost,installation fast,safe and reliable,beautiful modelling,little environmental pollution and other advantages.
Whole Structures of the telescopic seating system
1. Accordingly to grandstand dimensions, different types of steel profiles are used.It can be manual or motorized through electric engines working at 380V or 220V or by means of small tractors hooked to the structure.
2. The load distributor is a device specially created to reduce the concentrated load transmitted to the flooring system. A special spring system allows to the "unloaded" grandstand to "float" over the wheels.
3. When the grandstand is "loaded" the springs are compressed and the load distributor start working resting over the floor. Detail of the ground fixing system of the last row by means of floor or wall fixing dowels.
4. Traveling wheel shelf is made of 100mmx50mmx3mm rectangle tube, metal material: Q235A; Pillar is made of 3mm Cold-Roll Steel Sheets and Cold Roll Forming, metal material : Q235A.
Chongqing JUYI Theater Equipment CO.,Ltd is Located in the mountain City of chongqing which is a new beautiful and vaitalized place
Our Company has become an advanced enterprise in recent years producing
superior quality chairs and now has the high capacity of producing
medium and top class theater chairs ,telescopic bleachers and stage machines.
In the last several years,We have applied ancillary facilly to some
important national and reginal projects.Such as 2008 Beijing Olympic
Games Press Certer Hall,2014 Olympic Winter Games in Russia ,PLA General Armament Department Conference Hall,Tianjin Binhu Theater,
Gansu JiaYuGuan Theater ,Jiangsu Taizhou Theater,2011 Shenzhen Universiade Yan Tian Stadium and so on.
We are great welcome kinds of countries business people come to us,
join our business for gain Various of project of seat equipment,
stage equipment,Light equipment,audio equipment.
FAQ
Q:What is the MOQ?
A:Normally MOQ would be one 20 GP or one 40 HQ,subject to the type of seating products you order.Orders less than MOQ are still accepted base upon different shipping terms
Q:What are the shipping terms?
A:If your quantily reach to one container,we will use FOBshenzhen per unit for shipping term,If your quantily does't reach a container,we will use EXW per unit.(FOB Chongqing or Shanghai)
Q:How long will it take for delivery?
A:It will take about 20-25days,subject to type of product and quaitily you order.Normally 100 sets takes 7-10 days,More than 100 sets takes 20 days.
Q:What are the payment terms?
A:30% down payment before production,70 % balance upon reproduction completion.30 days free storage will be offered in case of any delay on shipping.
Q:How long will the product be warranted?
A:JUYI provide 5 years warranty to our original purchaser of products from the date of purchase
Q:What is the size about the bleacher?
A:The bleacher size is customised according to your project dimension. We can help with the seat arrangment as long as you provide the project layout drawing.
Q:Is your fabric fire resistent?
A:It's optional, it's up to the clients'requirements.
