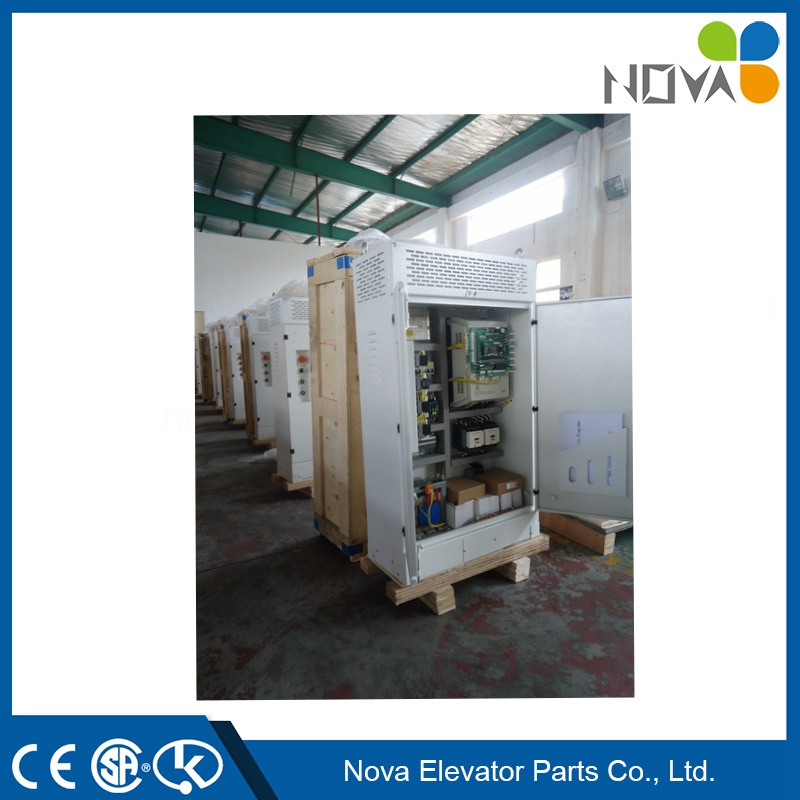

Monarch Nice3000 Integrated Control Cabinet for Pssenger Elevator

Name: Monarch Nice3000 Integrated Control Cabinet for Pssenger Elevator
Brand: thisfurniture.com
SKU: 799300995
Availability: InStock
Rating: 4.9 (126 reviews)

Price:	US $ 800-3000/Set
Min Order:	1/Set
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	Control Cabinet
Material:	Metal
Brand:	Monarch
System:	Serial System, Parallel System
Voltage:	220V or 380V or Others
Size:	Nova Stanard
Usage:	for Mr and Mrl
Color:	White
Warranty Time:	One Year
Delivery Time:	15 Working Days
Driving Type:	AC Elevator
Capacity:	500-1000kg
Control Mode:	Signal Control
Position Of Computer Room:	with Machine Room
Elevator Door:	Center Open or Side Open
Door Knife:	Single
Deceleration Device:	With Deceleration Device
Attendant:	Without Attendant
Type:	Nice3000 New, As380
Persons:	6 - 10
Speed:	1.00 - 2.00m/s

Product Description

NV3000 Series Step Elevator Controller
1.380/400/415V, 3 Phase
2.220V Single & Three Phase
3.Optional cards & parts

Elevator Integrated Controller, Lift Integrated Controller, Elevator Controlling System, Elevator Integrated Control Cabinet, Elevator Controller, NV3000 Series Step Elevator Controller

NV 3000 RATINGS
380/400/415V, 3 Phase Ratings (-15% to 20%: 30Ph, 323Vac to 456Vac)

Model Code	Frame	Input Current (A)	Output Current (A)	Typica Motor(kW)	Dimension			Braking Resistor			Braking Unit
Model Code	Frame	30Ph	30Ph	Typica Motor(kW)	Height (H)	Width (W)	Depth (D)	n	kW	Part no.	Braking Unit
NV-L-A/B-4002	c	6.5	5.1	2.2	355.0mm	220.0mm	150.0mm	220	0.6	MCTC-DBR-4002	In-Built
NV-L-A/B-4003		10.5	9.0	3.7				130	1.1	MCTC-DBR-4003
NV-L-A/B-4005		14.8	13.0	5.5				90	1.6	MCTC-DBR-4005
NV-L-A/B-4007	D	20.5	18.0	7.5	347.5mm 322.0mm*	223.0mm 208.0mm*	167.5mm 212.0mm*	65	2.5	MCTC-DBR-4007
NV-L-A/B-4011		29.0	27.0	11.0				43	3.5	MCTC-DBR-4011
NV-L-A/B-4015		36.0	33.0	15.0				32	4.5	MCTC-DBR-4015
NV-L-A/B-4018	E	41.0	39.0	18.5	554.5mm	289.6mm	223.0mm	25	5.5	MCTC-DBR-4018
NV-L-A/B-4022		49.5	48.0	22.0				22	6.5	MCTC-DBR-4022
NV-L-A/B-4030		62.0	60.0	30.0				16	9.0	MCTC-DBR-4030
NV-L-A/B-4037	F	77.0	75.0	37.0	To be advised			13	11.0	MCTC-DBR-4037	External
NV-L-A/B-4045	F	93.0	91.0	45.0	To be advised			10	13.5	MCTC-DBR-4045	External

220V Single-Phase, Three-Phase Ratings (-15% to 20%: 10Ph, 30Ph, 187Vac to 264Vac)

Model Code	Frame	Input Current (A)		Output Current (A)		Typical Motor (kW)	Dimension			Braking Resistor				Braking Unit
		Input Current (A)		Output Current (A)			Dimension			10Ph		30Ph
		10Ph	30Ph	10Ph	30Ph		Height(H)	Width(W)	Depth(D)	Q.	kW	n	kW
NV-L-A/B-4002	C	13.2	11.0	5.2	9.6	1.1 12.2	355.0mm	220.0mm	150.0mm	130	0.9	130	1.1	In-Built
NV-L-A/B-4003	C	17.0	17.0	7.5	14.0	1.5/3.7	355.0mm	220.0mm	150.0mm	90	1.3	90	1.6
NV-L-A/B-4007	D	29.0	29.0	10.3	18.0	2.2/4.0	347.5mm 322.0mm*	223.0mm 208.0mm*	167.5mm 212.0mm*	90	0.9	90	1.1
NV-L-A/B-4011		36.0	36.0	15.5	27.0	3.7/5.5				65	1.1	65	1.6
NV-L-A/B-4015		41.0	41.0	19.0	33.0	4.0/7.5				43	1.6	43	2.5
NV-L-A/B-4018		40.0	40.0	22.5	39.0	5.5/11.0				32	1.6	32	3.5
NV-L-A/B-4022	E	49.0	49.0	27.7	48.0	11.0/15.0	554.5mm	289.6mm	223.0mm	25	2.5	25	4.5
NV-L-A/B-4030		61.0	61.0	34.6	60.0	15.0/18.5				22	3.0	22	5.5

Nova welcomes you to visit our website or email us to get elevator door operator and landing door preliminary inquiry sheet for your selection to meet your specific requirements.

NOVA ELEVATOR PARTS Co., Ltd. Was established in 2002 by people with long term technical experience both in China and International elevator market.

We are the modern manufacturer of lift components, well equipped with advanced machinery capable of producing high quality products including Guide Rails, Cabin, Counterweight, Door System, Eletrical System etc. Our more than 10 years of hands-on manufacturing experience have allowed us to steadily fine-tune our production techniques, improving every single process involved and optimizing the fitness of each and every component to the final product. Combining the manufacturing with the trading activities we are in place to supply full range of components for modernization lifts or complete new lift, while always retaining high quality and reliability.

Our policy is to offer our customers direct and complete support, in terms of materials, components and services provided before and after every sale.

As we move forward, we will continue our commitment to excellence and offer best value for our esteemed customers.
