Prod Model: |
T4A-04SW |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Size :5 Bay * 6 Unit: |
4960(W)*6100(D)*2150 (H) Mm |
Aisle Size: |
1000 Mm |
Color: |
White |
Quality Warranty: |
10 Years |
Delivery Time: |
15 Days |
Port: |
Shen Zhen Port |
Material: |
Metal |
Open Type: |
Sliding |
Door: |
0 Door |
Usage: |
Warehouse |
Customized: |
Accepted |
Product Description

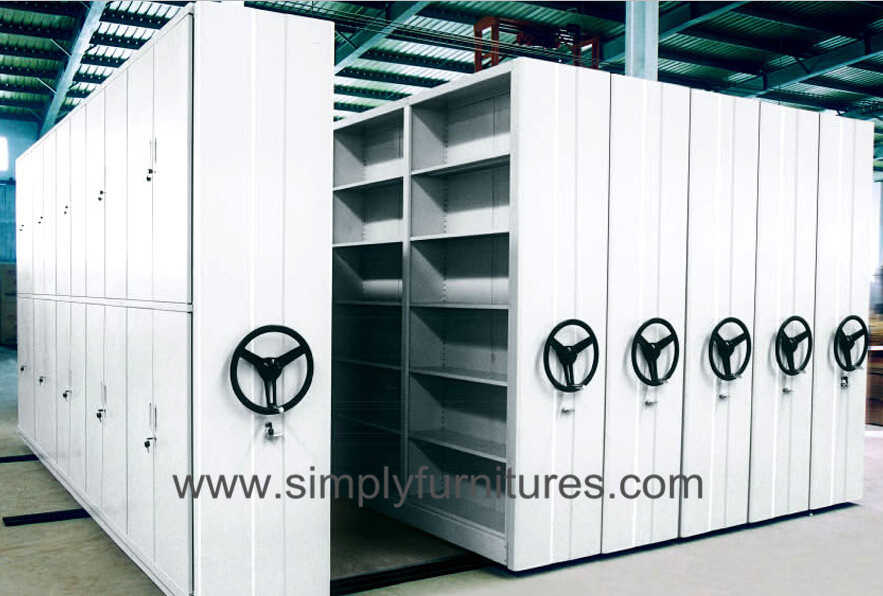

Mobile Warehouse Storage Cabinet for Online Retailers (T4A-04SW)
Mobile high density shelving advantage:
1. Convenient and secure
Heavy duty tracks and ergonomically designed handles to ensure that sliding bays can be moved effortlessly.
Control locks provide basic security, and limit unauthorized user access to an individual aisle, a group of aisles, or the entire system.
2. Easy retrieval and reference
Label holder for easy identification of bays to speed up retrieval and search of materials.
3. Save valuable space
Manual mobile storage system gives you a space-saving and cost-effective option.
Movable shelving systems have aisles that open only when and where they are needed, allowing you to reclaim unused aisle space.
Metal Mobile filing cabinet / storage cabinet features:
1. Filing cabinet is Effortless push-pull operation.
2. Economical way to maximise your valuable storage space.
3. Units can be easily extended, altered or relocated to support your changing storage needs.
4. Available in single or tandem configurations.
5. Low profile tracks are trolley and wheelchair friendly.
6. Each system is lockable with a central lock when packed together.
7. The built-in safety locks for mechanical type cabinets to safeguard users from accidentally trapped in aisles.
About this Mobile storage Cabinet: 4960(W)*6100(D)*2150 (H) mm
A. 5 Bays
B. 6 double faces movble unit (850mm)
C. 5 shelves adjustable for each bays
D. The two side swing door design.
E. Aisle Size 1000 mm
Welcome customsed size, Ral or Pantone color avaiable.
According your space, we can provide professional advice, really improve your storage capacity!
Steel Mobile Filing Storage Cabinet/ Movable Mass Shelf /Compact shelving System details: |
Types: | Manual | Mechanical Wheel | Mechanical Handle |
Material : | Electyolytic Galvanized Steel |
Surface treatment: | Epoxy Powder Coating |
Dimension : | Height : | 2150mm |
Width : | (905*N)+165mm (N=number of Bays) |
Depth : | Fixed Unit : 450mm |
Movable Unit : 450/650/850mm |
Shelf Size : | W845xD395xH38mm(for 450/850); | W845xD295xH38mm(for 650); |
No. of Shelf | Single Fixed /Single Movable =4n |
Double Movable =8n |
Aisle Size : | 600-1000mm |
Loading per Shelf: | Reinforced Shelf : | D295mm/85kg ; D395mm/100kg |
Multi-purpose Shelf : | D395mm/70kg |
No. of Rails : | 1-3Bays : | 2pcs | 4-5Bays : | 3pcs |
6-7Bays : | 4pcs | 8Bays : | 5pcs |
Thickness: | Base | Back panel | Top panel | Front panel | Side panel | Shelf | Post | Rail |
2mm | 1mm | 1mm | 1mm | 1mm | 0.8mm | 1.5mm | 2mm |
Lock : | Steering wheel with brake lock ,more safety |
Post | 50x50mm square tube post of double plate with slots in 25mm increment |
Bumper : | Natural rubber of 30x16mm |
Rail : | Made of 25mm concrete steel with 0.8mm stainless steel sheet coating |
Wheel : | Iron die casting with anti-rust zinc coating |
Loading : 1000kg / Wheel |
Standard model of mobile filing shelving |
Type | Bay numbers | Single fixed | Single movable | Double movable | Double Movable |
Manual | 1 | SFP450-1 | SMP450-1 | DMP650-1 | DMP850-1 |
2 | SFP450-2 | SMP450-2 | DMP650-2 | DMP850-2 |
Mechanical | 1 | SFM450-1 | SMM450-1 | DMM650-1 | DMM850-1 |
2 | SFM450-2 | SMM450-2 | DMM650-2 | DMM850-2 |
3 | SFM450-3 | SMM450-3 | DMM650-3 | DMM850-3 |
4 | SFM450-4 | SMM450-4 | DMM650-4 | DMM850-4 |
5 | SFM450-5 | SMM450-5 | DMM650-5 | DMM850-5 |
6 | SFM450-6 | SMM450-6 | DMM650-6 | DMM850-6 |
7 | SFM450-7 | SMM450-7 | DMM650-7 | DMM850-7 |
8 | SFM450-8 | SMM450-8 | DMM650-8 | DMM850-8 |
Standard Depth: ( D ) | 450mm | 450mm | 650mm | 850mm |
Standard Hight: ( H ) | 2150mm |
Standard Width: ( W ) | 905*N (N=number of Bays) |
Thanks for your concern ! |
To be a subsidiary of Simply International Industrial, Dongguan Chengmei Hardware Co., Ltd. Established in 2008, specialists in versatile Steel & Stainless Steel storage furniture which widely used in the office, home, pharmacy, food preparation and many other industries. Simply manufactures top quality storage systems using the high quality electrolytic galvanized steel & Stainless Steel and highly skilled professionals.
We have invested a lot on modern Machines, include: 300 meters long automatic power coating production line, "AMADA" Automatic punch machines, CNC punching machine
The material we are using is Electrolytic galvanized steel for all office furniture products, which ensures the products have much longer life-circle.
With modern machines and high quality raw material our products give a high-standard impression to customers. And have gained a good reputation among customers.
With our extensive range of Steel storage Furniture, Simply can manufacture as per your designing & requirements.
For more information about our storage furniture, and to request a free quotation email sales@simplyindustrial. Net or call us on 0086-769-22200111.
