| Price: | US $ 1500-5000/Set |
|---|---|
| Trade Terms: | FOB |
| Min Order: | 1/Set |
| Pay Type: | T/T,D/P,Western Union |
| Prod Model: | W0609S |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Xyz Working Area: | 600*900*100 |
| Resolutiong: | 0.03 |
| Max Consume Power: | 3kw |
| Spindle Power: | 1.5 |
| Controlling Mode: | CNC |
| Feed Mode: | Mechanical |
| Spindle Number: | Single-Spindle |
| Spindle Layout: | Spindle Over |
| Certification: | SGS |
Advertising CNC Router
1.5kw spindle
ballscrew transmission

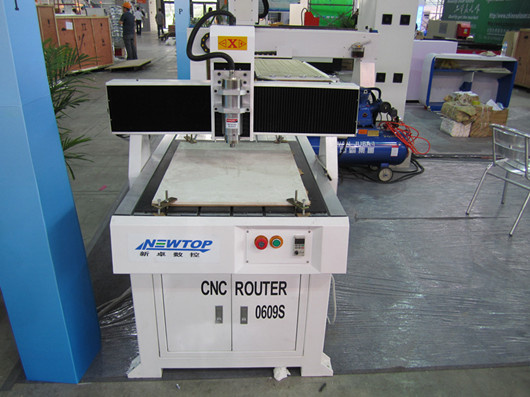

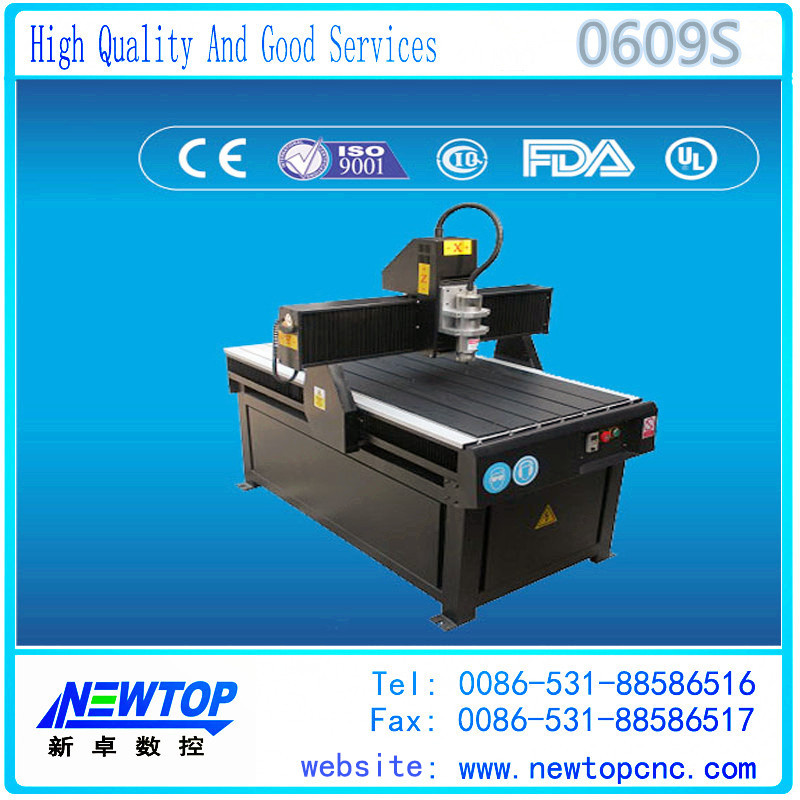

Mini CNC Router

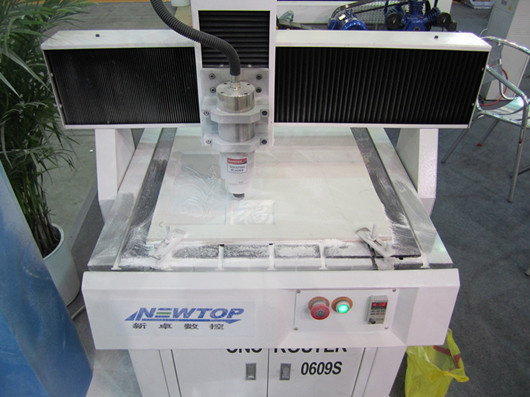

it is good choice for small piese woodworking, with dust hood on all three axies, it can stop dust away from the rails and ball screws, and to keep the machine working longer time.
We use accuracy LM linear (HIWIN) for all three axis, with options like water slot, mist spray system...etc.
the machine can work on wood, plastics, acrylic, even metal.
With T-slot table, holding the materials with clamps, High precision, you can do many jobs for sign mading, wood artwork....
All meterials for Sign making, even for wood working, molding.
2.Three axises are dustproof, the lathe bed is cast wholly. It is stable, durable, no deformation, high precision location.
3.International advanced DSP handle (Hcwy system optional, Welding system optional), a way to break memory, produce on accident (break) or next day.
4.Germany ball screw rod and hiwin guide rail, original screw nut, imported linear and square rail. Air cooled 1.5KW spindle motor.
Applicable Industries
1.Wooden areas: main used in redwood classical and antique furniture, wood carving, gifts wooden box, redwood jewelry boxes, ink-stone cutting, decorative products sculpture, fine jewelry carving.
2.Advertising: used in producing all models. Such as company plate, sings, building models, emblem, badge, display panels, fair signs, building numbers, signs of decoration, furniture and other decoration.
3.Others: the machine is also can be used in portraits, landscapes, calligraphy lettering, seal carving and other plane surface carving, basso-relieve.
| Model | Mini CNC ROUTER A0609 | |
| Item | Description | Parameter |
| 1 | X, Y, Z working area | 600*900*120mm |
| 2 | Table size | 780*1316mm |
| 3 | Resolution | ± 0.03/300mm |
| 4 | Repeatability | ± 0.02mm |
| 5 | Lathe structure | Cast steel with stand |
| 6 | X structure | Ball screw, shaft rails |
| 7 | Y structure | Ball screw, linear rails |
| 8 | Z structure | Ball screw, shaft rails |
| 9 | Max. consume power | 3kw |
| 10 | Max. rapid | 0-6000mm/min |
| 11 | Max. working speed | 0-3000mm/min |
| 12 | Spindle power motor | 1.5kw chinese self-coolant spindle, ER16 |
| 13 | Spindle speed | 0-24000RPM |
| 14 | Working mode | Stepper motor |
| 15 | Working voltage | Single phase AC220V/50HZ/60Hz |
| 16 | Command code | G Code(*uoo,*nc,*mmg, *plt) |
| 17 | Operating System | DSP system or Mach3 system |
| 18 | Interface | Printer port 50pins or USB |
| 19 | System memory | 128M (or pen driver) |
| 20 | Collet | ER16 |
| 21 | X, Y working delicacy | <0.01mm |
| 22 | Software | Type3 software, ucancam software, copy artcam software |
| 23 | Running circumstance | Temperature: 0°C~45°C |
| relative humidity: 30%~75% | ||
| 24 | Packing size | 910*880*8300mm |
| 25 | Net weight | 110KG |
| 26 | Gross weight | 1700KG |
