Mini CNC Glass Cutting Table

Mini CNC Glass Cutting Table
Price: US $ 5000-8000set
Trade Terms: FOB,CFR,CIF
Min Order: 1set
Pay Type: L/C,T/T,Western Union,Money Gram
Prod Model: SY-8080
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model: Sy-8080
Voltage: 380V/50Hz or Customised
Machine Size: 3700X2500X910mm
Type: Glass Cutting Machine
Certification: CE
Control System: PLC

Product Description

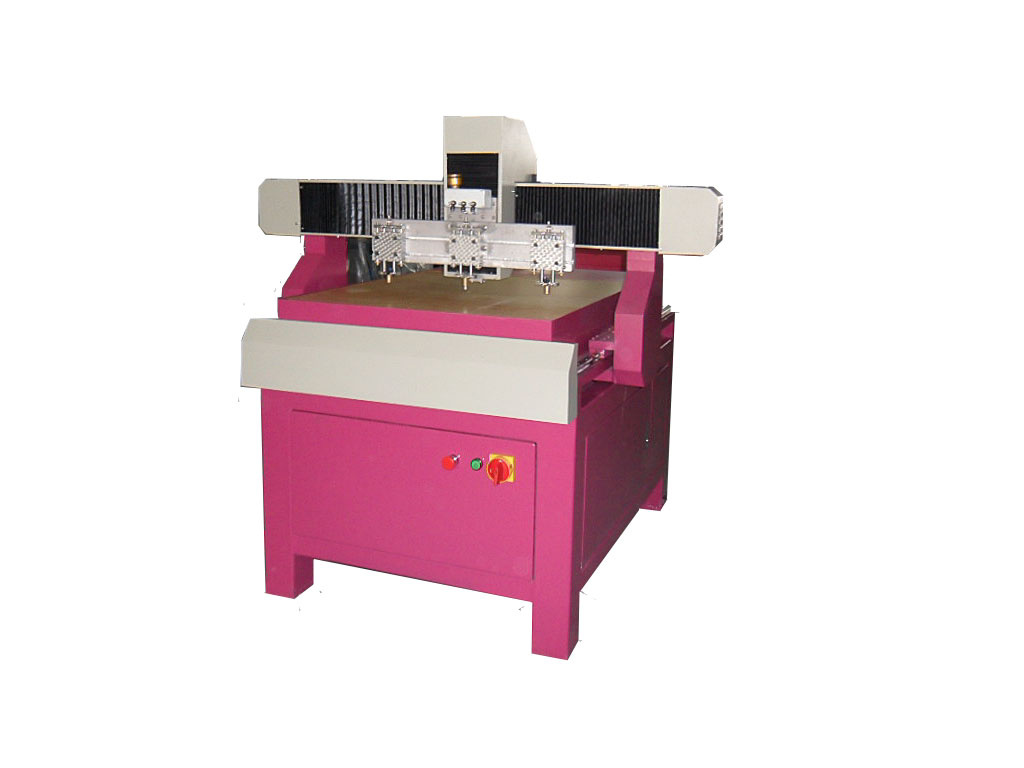

Mini CNC Glass Cutting Table SY-8080 CNC Glass Cutting Table:

Technical data:

Working table size: 800x780mm
Max. Glass cutting size: 800x780mm
Cutting glass thickness: 0.15-6mm
Cutting parallelism: ≤ ± 0.10mm
Cutting diagonal: ≤ ± 0.15mm
Cutting speed: 0-18m/min (adjustable)
Machine size: 1230x1300x1300mm
Power voltage: 380V/200V 50HZ or Customised
Power: 1.25KW (fan 750w; X axis 200w; Y axis 200w;
Z axis 100w)




Packing: Seaworthy packing

3. Payment: Telex Transfer (T/T), 30% be paid after confirming the order and the rest 70% is effected while delivering the goods.
Package: Each PC in wooden cases.
Port of Loading: Qingdao, China
Delivery Time: During 20 days after we receive your first payment

Guarantee & Aftersales service:

1)Guarantee the complete machine for 18 months, except the consumable parts.
2) 24hour technical support by email or calling.
3) User-friendly English manual for machine using and maintaining.


 Contact person: Ms. Sailing He

Office tel: 0086 531 66683398

Mobile: +86 18005318120





Since established the company, relying on its mighty real development strenght, advanced management mode, and excellent officers and workers, becomes gradually the professional enterprise with the produces, profession management, sale and after-sales services in a whole. Now our equipments has been exported to many foreign countries. New generation alumi doors and windows that company develops and research concentrates on the industrial development in building materials in Chinese chemistry, can produce the every kind of products with such good functions as elegant appearance, varied colors, soundproof, watertightness and etc. And it can satisfy aluminum and pve doors and windows and insulating glass machine's building requests, improved the Chinese living environment.
