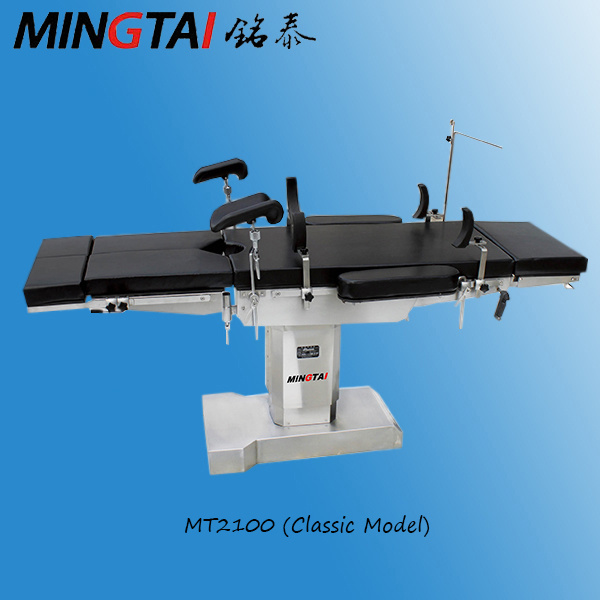

Mingtai Orthopedic Operating Tables Mt2100 with CE Certificate

Prod Model:	MT2100
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Length:	2100±50mm
Width:	555mm
Lowest And Highest Table Height:	(730-1100)±50mm
Table Lifting Scope:	200-450mm

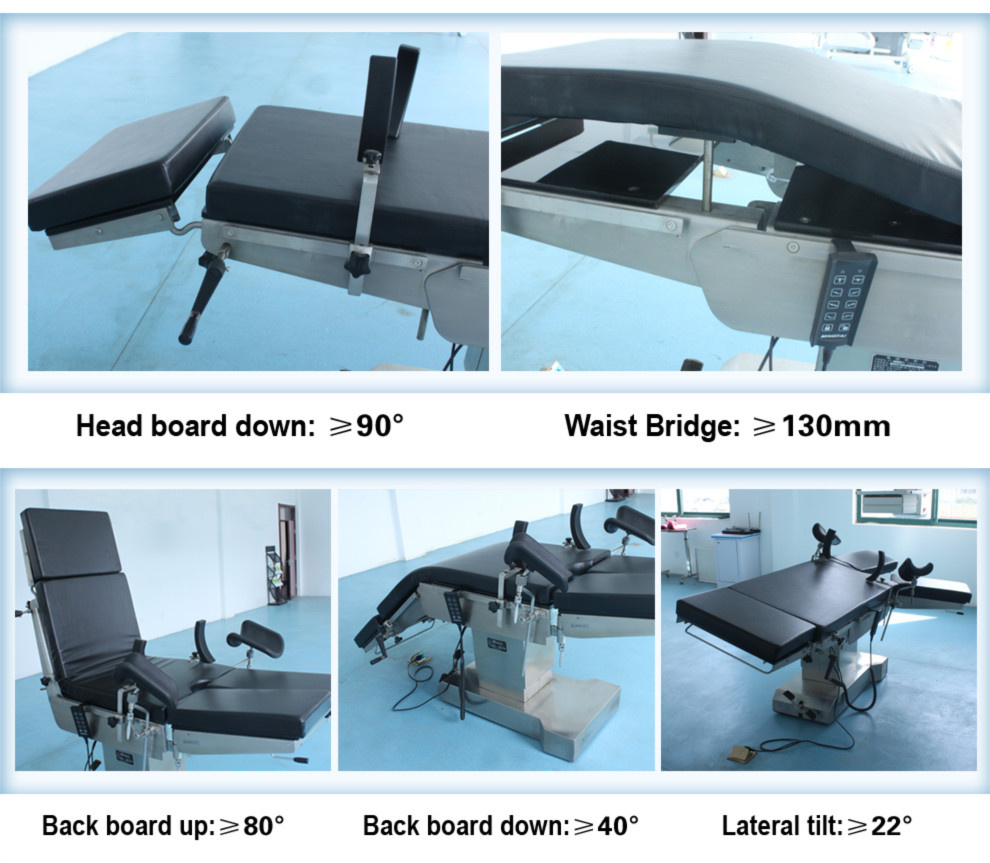

Head/Feet Board Slope:	≥32°
Table Longitudinal Scope:	350±50mm
Kidney Elevator:	≥132mm
Leg Evagination:	≥90°
Back Board Up:	≥82°
Back Board Down:	≥42°
Type:	Medical Table
Material:	Metal
Folded:	Folded

Product Description

Configuration:

Electrical hydraulic system from Germany(optional)
Electrical hydraulic system from Taiwan. (stand )
SUS#304 stainless steel from Korea
High precising straight slideway from Taiwan
Superior wide of operating table: 555mm
Double controlling pattern
"T"shaped base design, supply inside emergence power
Memory sponge matters
One-key-resetting function, one-key-locking function
Optional hanging orthopedics tractor
Electric braking and electric waist bridge

Main feature:

1. Full set of hydraulic control system with imported hydraulic components, enables it to achieve low noise, high security and reliability.
2. "t" shaped base design, providing an active space for medical staffs' feet, and reduce the fatigue of the long surgery.
3. Widen table width to fit the current clinical requirements. The table is divided into five activities: Head board, back board, built-in kidney elevator, hip board, leg board.
4. With bed movement adjustment automatically lock system, to improve the clinical safety.
5. With a key reset function, to facilitate operate the operating table.
6. Overall table is made of SUS304 stainless steel. Base and pillar cover also is made of 304 stainless steel, mattresses with low pressure, memory, fire-retardant features and can prevent pressure sores.
7. Leg panels can be replication, outreach and removable, convenient for adjusting and urinary surgery, kidney bridge does not affect the X-ray perspective, meanwhile convenient for the gallbladder and kidney surgery.
8. Translation function of the large size 550mm extra-wide bed design, through X-ray area large to facilitate small and medium-sized c-arm film.
9. Operation table base has fix or movement function, flexible movement and stable fix, different function accessories made by 304stainless steel can be provided for different surgery needed
10. Built-in high-capacity battery, no external power supply when used to increase the operation safety.
11. With non-slip floor side rail safety design to prevent the attachment falling, in case of injury., ,
12. Can be upgraded to configure the same brand hanging orthopedics tractor.
13. Machine design is in line with IEC60601-2-46, different accessories can be configured to suit the different needs of surgery.
14. Square lifting column is made by Germany, which has 4 times safety factor and 8 fasteners which can make it stable.
15optional mechanical brake and electric brake
16. Three lifting column which has got national patent makes the table lifting height can achieve the germany's high standard.
