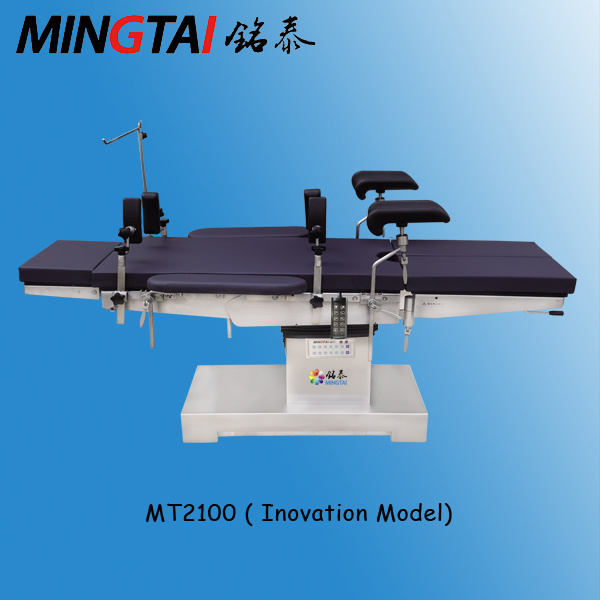

Mingtai-Mt2100 (Inovation Model) Orthopedic Comprehensive Electric Operating Table
| Price: |
US $ 1870-2320/Set |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T |
| Prod Model: |
MT2100 |
| Width: |
520mm |
| Length: |
2100±50mm |
| Motor: |
Denmark Imported |
| Type: |
Operating Table |
| Certification: |
ISO13485 |
| Group: |
Adult |
| LCD Display: |
Without LCD Display |
| Kind: |
Medical Equipment |
Product Description
Mingtai-MT2100 (Inovation Model) Orthopedic Comprehensive Electric Operating Table △ 9 motors, 2 of them control back rest△ Imported Korean POSCO SUS#304 stainless steel△ 555mm table width, much comfortable△ Imported Denmark Linak high quality motor△ Memory sponge preventing acne + SBR material high end mattress△ Advanced double control system, with back up battery, built-in base design△ Electric waist bridge, electric braking system, head board HS system△ Many patents are used to confirm the stability and advancement Technical parameters | Length | 2100 ± 50mm |
| Width | 520mm |
| Lowest and highest height of table board | (750-1000) ± 50mm |
| Optional table width | 480-550mm |
| Optional lowest height | 600mm |
| Table longitudinal scope | 400 ± 50mm |
| Optional table height of lifting up and down | 200-450mm |
| Forward/backward tilt | ≥32° |
| Left/right tilt | ≥22° |
| Head board up/down | ≥90° |
| Waist bridge lift up | ≥130mm |
| Leg board down | ≥90° |
| Leg evagination | ≥90° |
| Back board up/down | ≥80°/ ≥40° |
| Power | AC220V 50Hz |
| Input power | 500VA |

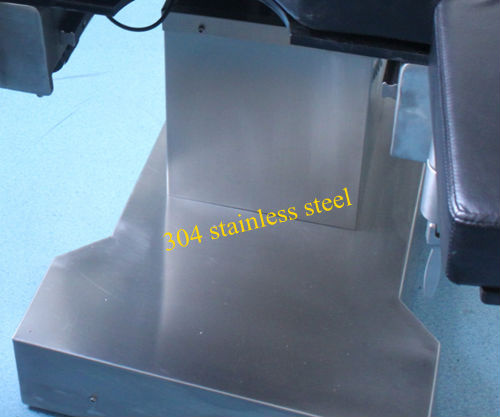

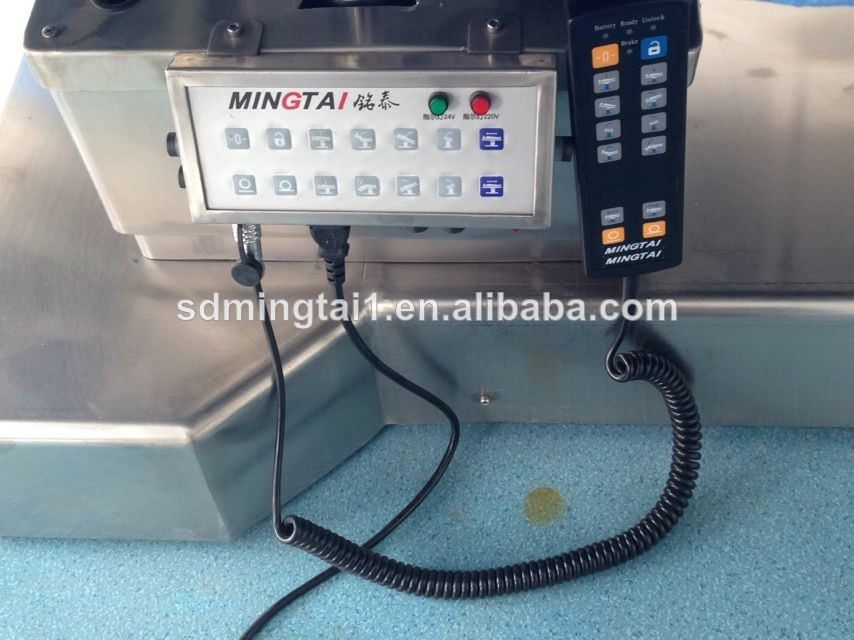

Main feature:1. Electric motor driving system: imported the Denmark LINAK motor, low noise, smooth table motion, it is reliable and durable2. 9 electric motors, 2 of them control the back board motion. High performance rechargeable battery can work ≥50 times, to make sure the operation table can work without power source. The rechargeable battery doesn't need maintenance, can be used for long time. Also with AC power source support power, guarantee the largest safety.3. The whole bed is made of high quality Korean POSCO SUS#304 stainless steel, super thick≥4mm (not stainless steel cover). The whole surgery bed, cover and accessories are made of high-quality nickel chromium alloy stainless steel, not rusting within 15 years, excellent sealing, polishing surface treatment, impact resistance, prevent scratch resistance, wear resistance, disinfection resistance, easy to clean, fully meeting disinfection after operation4. Built in stainless steel base with circular edge design, supply much more space for doctor, meet clinical requirement. 5 sections board design: head board, back board, waist bridge, hip board and leg board.5. Column part with patent design, Germany technology design, which has 4 times safety factor. Square column, 8 fasteners to make sure the stability.6. Braking system with patent design, 4 point locking function, when locking, operating table will not move, to make sure it stability and safety during surgery 7. Electric leg board function, can be up/down move, evagination and removable, convenient for urology surgery.8. Ultrasonic welding mattress: Memory sponge preventing acne + SBR material high end mattress, effectively relieve patients pressure point, prevent postoperative bedsore occurred; mattress material is conformed with the safety standard, the surface is antibacterial, easy to clean, seamless, meeting the operating room disinfection requirements.9. Operating table base with move or fix function, move flexible, fix reliable, different function accessories can be provided for different surgery needed10. Standard accessories:universal shoulder support*1 pair, universal waist support * 1 pair, arm support * 1 pair, leg support * 1 pair, hand controller * 1 pc, anesthesia screen frame * 1 pc.
MINGTAI--Expert of Medical Devices for OR&ICU
Mingtai, as a well-known medical equipment manufacturer of China, since its establishment, continues to develop, enterprising constantly, with better quality, better service, make it easy for public enjoy the health future of medical science.
Mingtai Medical Group was founded in 2 0 0 0, Is a global leading supplier of OR & ICU Products. Mingtai Medical adhere the technological innovation to create value for customers. She has a close strategic cooperative relations with the famous Germany medical company brand "Draeger"(Germany Draeger Medical GmbH) Wellknown Hydraulic System "HOERBIGER"(Germany HOERBIGER Automation Technology GmbH), Germany medical suspension system supplier "Ondal"(Germany Ondal Medical Technology GmbH).
Mingtai won the trust and cooperation of global customers by the increasing innovation ability, prominent flexible customization capabilities and the gradually perfected delivery ability.
All the products passed I S O 13485, I S O 9001, CE Certificate & SFDA. The company have a number of invention patents. Utility model patents and design patents. The Mingtai medical have the most complete end-product lines of industry, integration solutions and International brands MINGTAI MEDICAL series Surgical lamp, Operation table, Medical pendant, Electric care nursing bed. Flexibility to meet different global distributors and end customers' different needs, As well as the pursuit of rapid innovation.
In 2012, the company won the financial and technical support from UK WINDER WILSON medicine holding company. In many countries and regions in the world and the Chinese market to establish a perfect sales and service network, with scientific, professional service system quickly and timely to meet the diverse needs of customers, become their most valuable partners. In more than 88 countries and regions in the world, there are more than 8000 medical establishments bring health life to public by mingtai medical products.
Quality is the life of the product, the service is the continuation of life, from the first time shaking your hands, you will feel the most sincere service of mingtai person. All Mingtai colleagues will return your trust by the most enthusiastic service!
