Prod Model: |
MT2000 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Stainless Steel: |
SUS304# Stainless Steel |
Motor: |
Linak Linear Motor From Denmark |
Certificate: |
Ce, ISO9001, ISO13485 |
Product Description

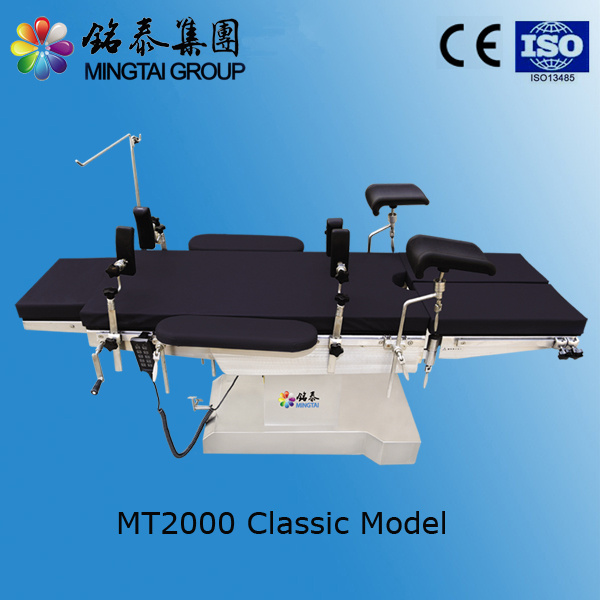

Mingtai-Mt2000 Multi-Function Electro-Motor Surgical TableConfiguration:- Multi-function use Denmark Linak electro-motor surgical table
- 304# stainless steel
- Memory sponge mattress
- Head board and leg board can be exchanged
Technical Parameter:Technical parameters | MT2000 |
Length | 2000±50mm |
Width | 500mm±20mm |
Height adjustment | (750-1000) ± 50mm |
Forward tilt | ≥28° |
Backward tilt | ≥18° |
Left/right tilt | ≥18° |
Head board up/down | ≥90° |
Waist bridge lift up | ≥100mm |
Leg board down | ≥90° |
Leg evagination | ≥90° |
Back board up | ≥80° |
Back board down | ≥35° |
Power | AC 100-240V, 50Hz |
Input power | 500VA |
Main Feature:1. All set of control system adopts high quality electric motor which made in China, get CE certification, low noise and much more safety.
2. Widen table width to fit the current clinical requirements. The table is divided into five activities: head board, back board, built-in kidney elevator, hip board, leg board.
3. Electric motor rise the back board; Leg board can be replication, outreach and removable, convenient for adjusting and urinary surgery.
4. Operation table base has fix or movement function, flexible movement and stable fix, different function accessories can be provided for different surgery needed.
5. Square lifting column is made by Germany, which has 4 times safety factor and 8 fasteners which can make it stable.
6. Machine design is in line with IEC60601-2-46, different accessories can be configured to suit the different needs of surgery.
7.The operation table has excellent function, elegant appearance, easy to operate. Memory mattress, smooth, moistureproof, antistatic, corrosion resisting, soft, comfortable and high resilience.
