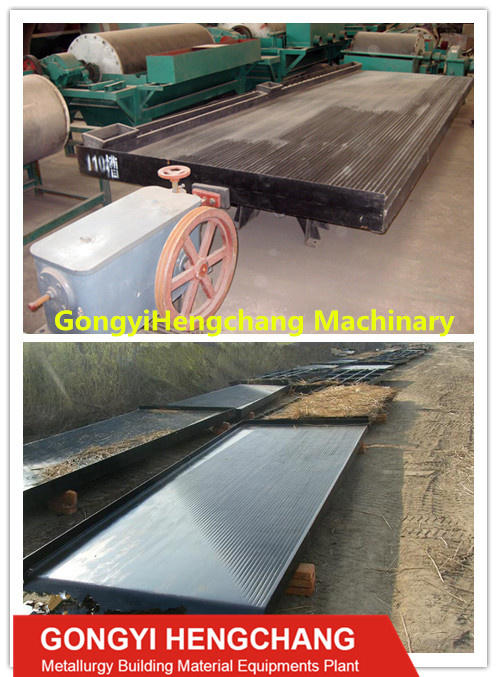

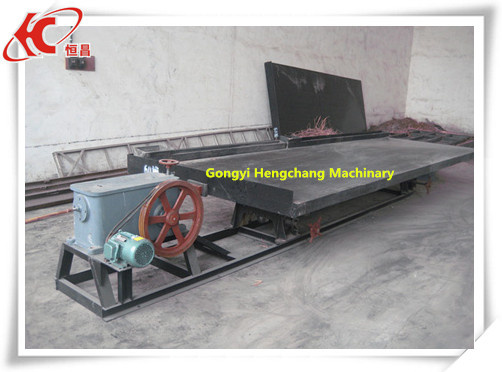

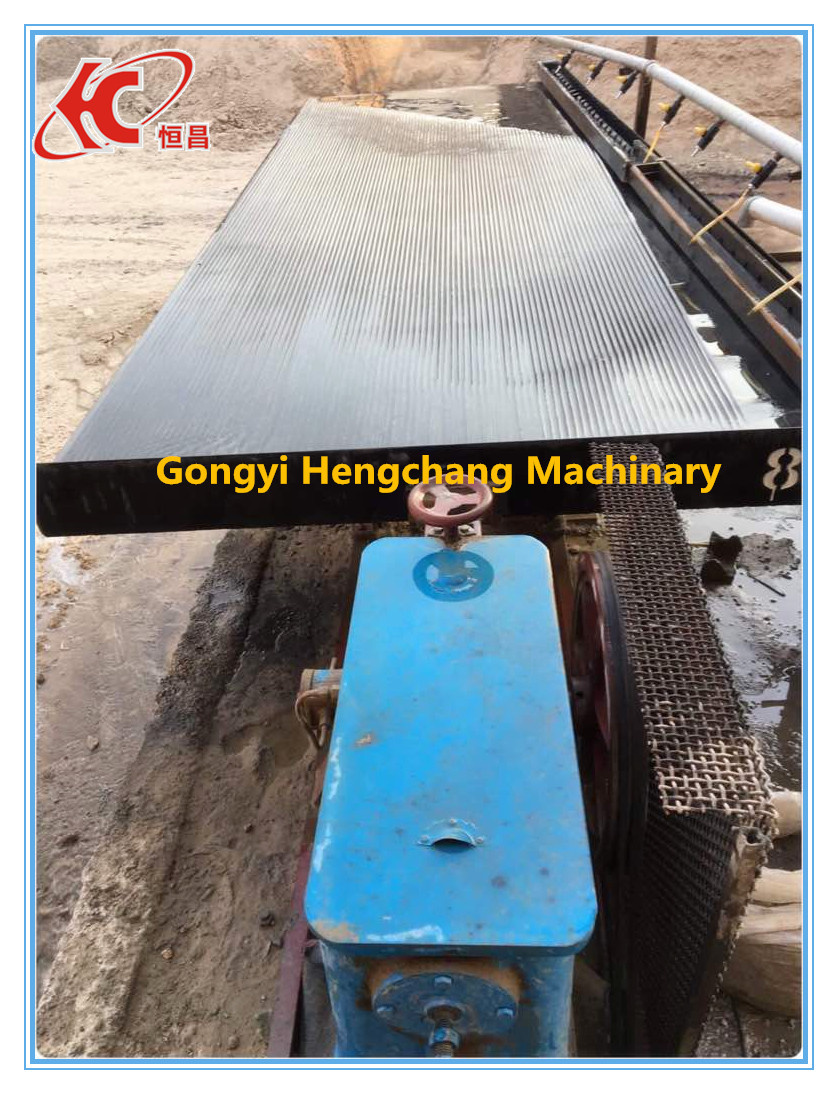

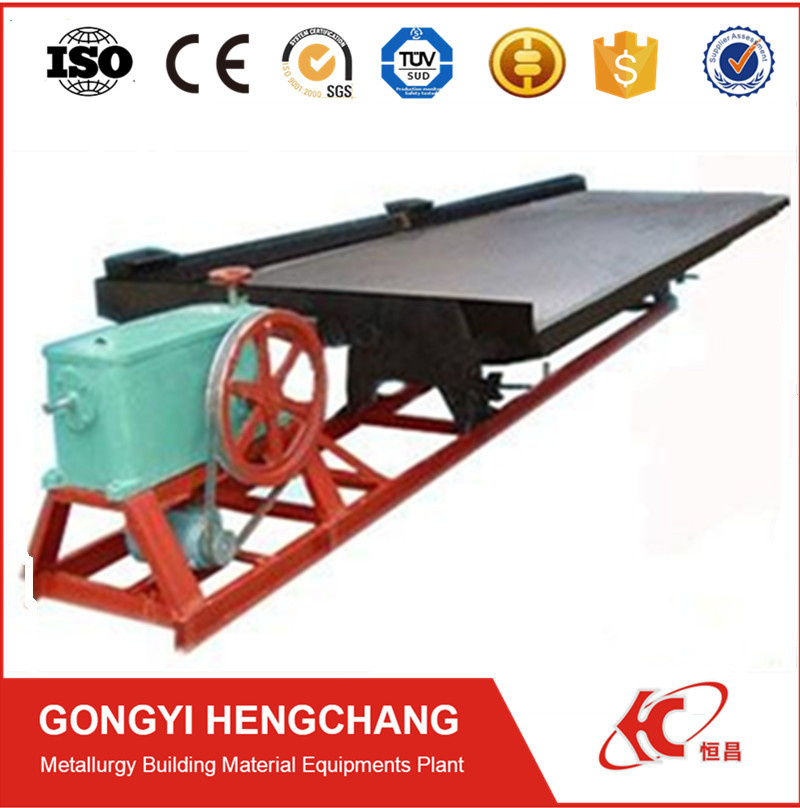

Mineral Manufacture 6-S Model Gravity Gold Shaking Table
| Price: |
US $ 2500-20000/Set |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
| Prod Model: |
6-S |
| Name: |
Mineral Manufacture 6-S Model Gravity Gold Shaking |
| Keywords: |
Gravity Gold Shaking Table |
| Max Feeding Size: |
2mm |
| Bed Length: |
4450mm |
| Head Width: |
1855mm |
| End Wisth: |
1546mm |
| Stroke: |
16-22mm |
| Water Consumption: |
80-150 T/D |
| Area: |
7.6 Square Meter |
| Bed Fracture Shape: |
Rectangle |
| Type: |
Gravity Separator |
| Weight: |
<1T |
| Certification: |
CE |
| Warranty: |
1 Year |
| Color: |
Multi Color |
| Customized: |
Customized |
| Condition: |
New |
| Voltage: |
220/380V |
Product Description
1.
Introductio of Mineral Manufacture 6-S Model Gravity Gold Shaking Table Mineral Manufacture 6-S Model Gravity Gold Shaking Table is one of the important dressing equipment depending on the gravity. It is widely used in to classify the granularity 2-0.02 millimeters ore and ore slime of tungsen, tin, niobium, manganese, chromium, titanium, lead , zinc, gold, iron(rediron, brown iron) and so on metallic minerals.
It is easy to be operated and can prduce high grade concentrated ore, secondary concentrated ore, middlings and gangue, etc at the same time, it is widely used to separate tungsten, stanum, niobium,gold, other rare metal and nobel metal ores, it can also be used to separate iron, manganese minerals, coal and so on.2 ,
Application of Mineral Manufacture 6-S Model Gravity Gold Shaking Table The raw materials on the shaking table are with mixed densities, the suspending particles of the materials will leak down from the shaking table for its bearing the larger force. When the shaking table works, the raw materials on the table will tumbling and sliding with the shaking table. The different speed of the particles will lead the table expanding, then the particles with smaller size will screening out. The raw mineral materials will be selecting by adjusting the speed of the table.
3.
Main Feature of Mineral Manufacture 6-S Model Gravity Gold Shaking Table (1)Big steel intensity
(2) Low water absorptivit, does not increase height
(3) Good wearability of the work surface
(4) Anti-chemical corrosion, acid do not avoid medicament in ore pulp
(5) Good weather resistance, good shape stability
(6) Good selection function, good index stability
4.Our service(1) Installation and guidance
When the machine arrives at your company, we will dispatch our technicians to your company to guide the installation and commissioning at site. User should pay for the following fees air tickets, boarding and lodging and traffic in client's factory.
(2)Technical training
We provide free technical training service to your stuff. Training content contains the main work principle of machine, operating regulations, maintenance methods and steps, safety, etc.
(3)Warranty:
Three guarantees of our product quality, warranty for one year (not include man-made damaged). We will maintain the machine for free for the quality problem. If the damage is caused by your improperly operation, the cost of the maintenance burden by you. we also provide you the life-long follow-up service.5.Technical Parameters of Mineral Manufacture 6-S Model Gravity Gold Shaking Table
Model
| Bed Size
| Max. Input Size
(mm)
| Stroke
(mm)
| Water consumption(t/d)
| Area
(m2)
| Bed Shape
|
Coarse Sand
| 4450*1855*1546
| 2 | 16-22
| 80-150
| 7.6
| Rectangle
|
Fine Sand
| 4450*1855*1546
| 0.5 | 11-16
| 30-60
| 7.6
| Sawtooth
|
Slime Sand
| 4450*1855*1546
| 0.15 | 8-16
| 10-17
| 7.6
| Triangular
|

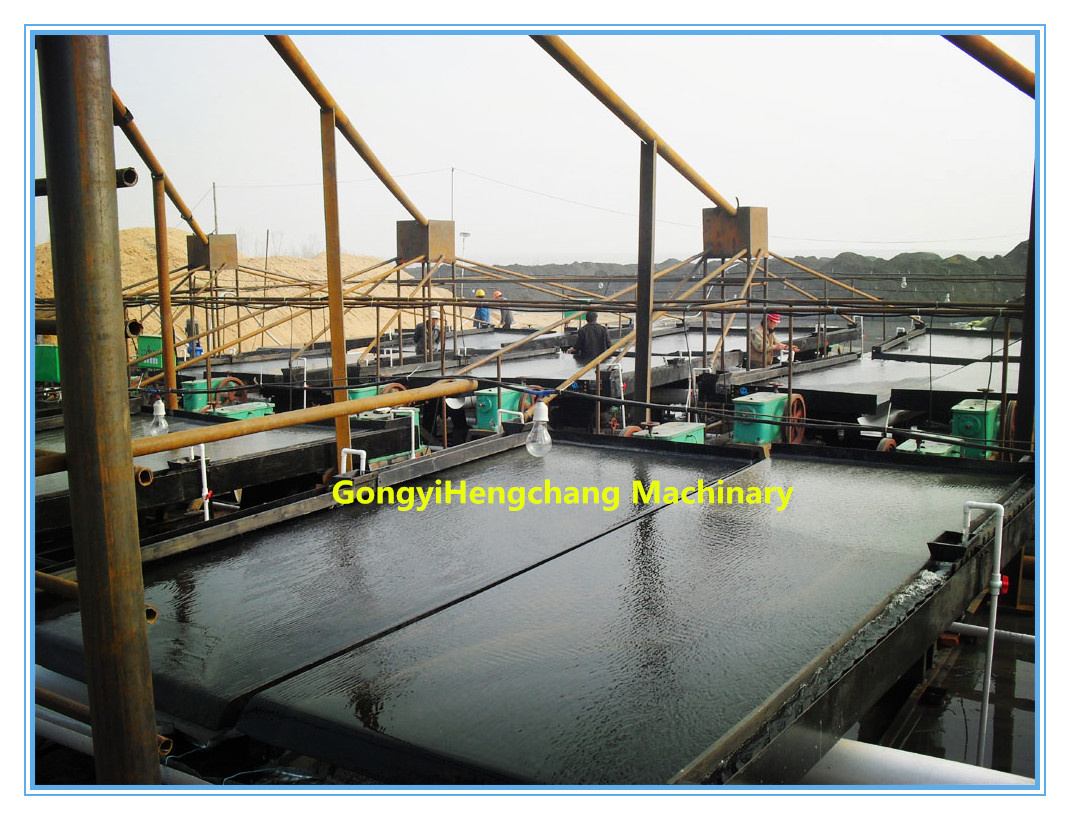

Construction site

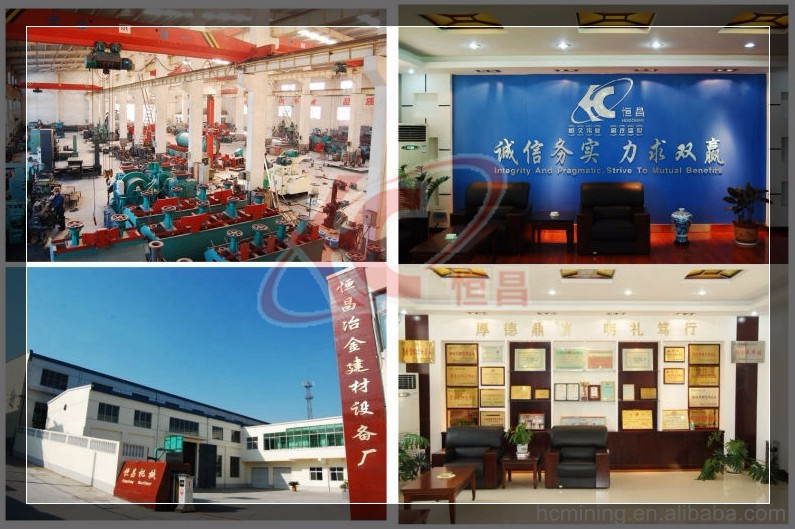

5.our copmanyGongyi Hengchang Metallurgy Building Material Equipments plant is a professional manufacturer specializing in the production of mineral beneficiation equipments, sand and stone crushing equipments, briquetting equipments, coal preparation equipments, drying and calcining equipments, cement plant equipments and compound fertilizer equipments.
Gongyi Hengchang Metallurgical Building Material Equipments plant is a professional manufacturer of complete set mineral beneficiation equipments, Briquette equipments, coal preparation equipments, ball press equipments, products widely used in mineral processing, metallurgy, building materials, chemicals, electricity, petroleum, coal, transportation, fertilizer, gas industry etc.
In the last two decades, we always persist on the philosophy of "scientific and technological innovation, quality first, users first", and cooperated with a number of research institutes to form collaborative units, like Anshan Iron and Steel Research Institute, Nanning of Guangxi Nonferrous Metals Design and Research Institute, Henan Polytechnic University, invite and employ many senior engineers specialized in different fields to the factory for technical designing and supporting.
Science and technology as guide, constantly develop new products, improve product quality and perfect after-sales service, our plant successfully applied ISO9001: 2008 quality certificate and manage to design 10 to 5, 000 t/d mineral beneficiation equipment series production lines, 5 to 500, 000 t/d industrial briquette production line, our floatation machine is successfully applied to Zhong Ping Energy Chemical Group; Ball press series machine can briquette minerals powder, coal powder, plaster powder and other materials into a balls/ briquettes, which can be directly applied to the applications and smelting.
Our plant have been awarded "Enterprise of Observing Contracts and Keeping Promise enterprise" prize by Zhengzhou industrial and commercial bureau in consecutive years, "good faith private enterprise" prize by both Henan Province and Zhengzhou City, top 30 of key enterprises of the Gongyi government and bureau, products are welcomed by more than 20 provinces, municipalities and autonomous regions in China, and exported to South America, South Asia, Africa and other regions, products quality, technical supporting and after sale service are highly praised by users both home and abroad.
We welcome friends all over the world to visit our plant, persist on the mutual benefits and developments!
