| Price: | US $ 25-100/Piece |
|---|---|
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,Paypal |
| Prod Model: | AL02 |
|---|
Specification of Type-02 Series Linear actuators:
| Input Voltage | 12/24/36VDC |
| Load Capacity | 6000N |
| Stroke | 30mm-1000mm special stroke are available according to customer's need |
| Speed | 4-35mm/s |
| Type Of Duty | S2-10min |
| Operation Temperature | -25°C (-14.8F) to +65°C (149F) |
| Standard protection class | IP44 |
| Limit Switches | Inner |
| Min. Install Dimension | S+157mm (Option) |
| Color | Silver or Black |

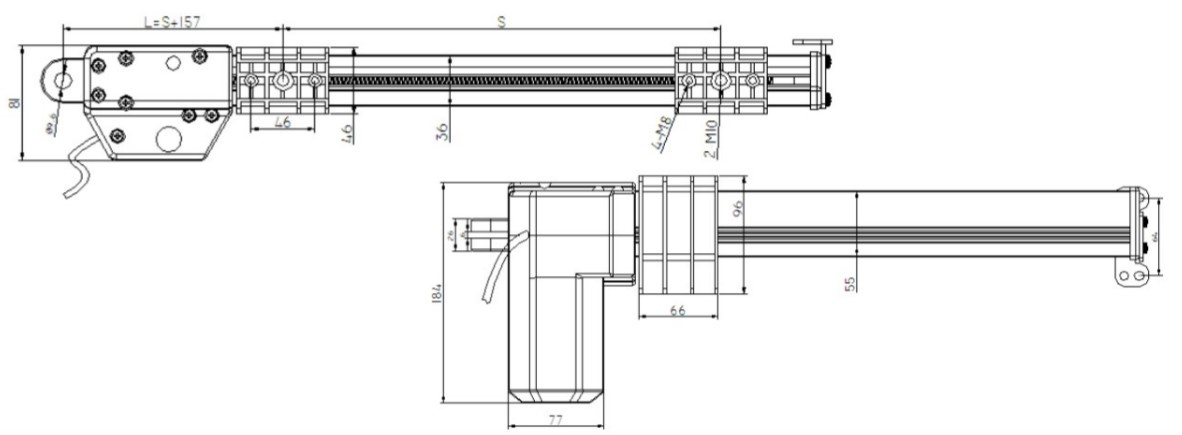

Technical Drawing

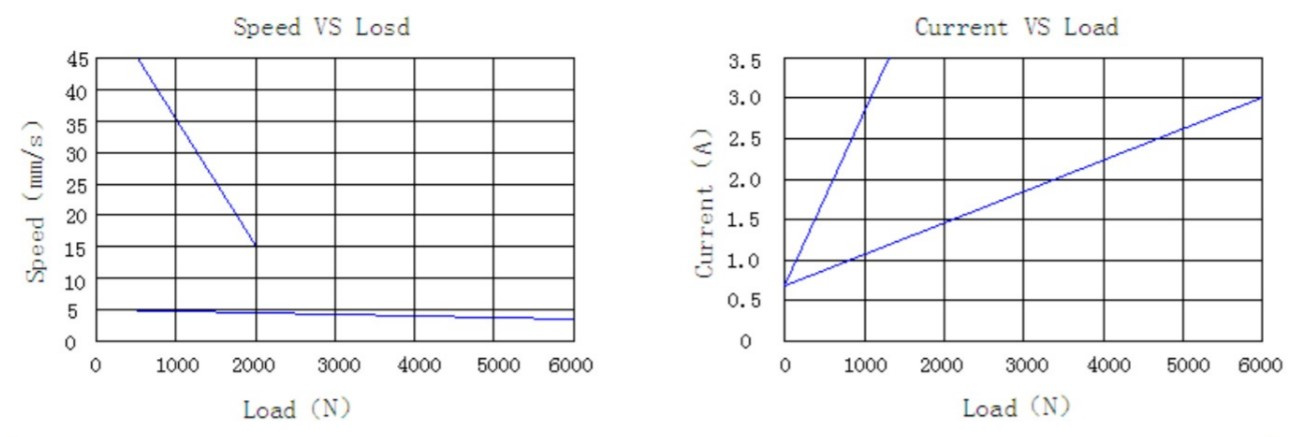

Graph of Relation
Application Fields
Our service purpose is" To gain your trust and support with our sincerity and excellent service, thus achieve mutual benefits and win-win business relations.
1. 24-hour Trademanager on line.
2. Professional and Patient introduction on products.
3. Quotation in time
4. fast and reliable delivery
5. sound after-service system
Company Information
We are a foreign trade company engaging in cutting-edge and high-end electronic products. Our company lies in the hometown of household appliaces--- cixi, zhejiang, China. Being the central of China's Yangtze River Delta regions, it enjoys exceptionally favourable geographic circumstances ---60 km to Ning Bo from East, 148km to Shanghai from North, 138km to Hangzhou from West.
Our main products: Multifunctional rotating bed control system, hybrid stepper motor,linear actuator, drive controller and micro motor.We are a integrated company with own R&D ,production ,sales and one- stop service.With professional automated production lines,perfect testing equipments ,experienced and qualified R&D team, our products are largely exported to European and America, and gain full recognition by mass customers around the world.
Linear actuator series products are widely used for Multifunctional rotating beds, industrial automation, Office Automation System, dental unit, massage chair, medical bed, nursing bed, eletric bed etc.
Micro motor series products are widely applicable for household appliances, such as, warm air blower, electric fan,micro-wave oven, electric baker, fireplace,etc.
