| Price: | US $ 3-20/Piece |
|---|---|
| Min Order: | 10/Piece |
| Pay Type: | T/T,Western Union,Paypal |
| Prod Model: | IR ceramic heater |
|---|---|
| Application: | Widely Used |
| Power: | Customized |
| Standard Voltage: | 120V 220V 230V 240V 480V |
| Color: | White / Black/ Yellow |
| Type: | with or Without Thermocouple |
| Max Output Temperature: | 700c |
| Density Of Power: | 3W/Cm2 |
MICC far infrared ceramic heater
Description
Ceramic Heater Elements is efficient, robust heaters which provide long wave infrared radiation. They are used in a diverse range of industrial processes such as heaters for thermoforming, and as heaters for paint curing, printing and drying. They are also used very effectively in infrared outdoor heaters and infrared saunas.
It has many kinds of shapes, contains flat elements, trough elements, hollow
Specification
1,Nickel chrome resistance wire(NiCr20/80)
2,Color: White/Black
3, Type K thermocouple mounted internally in center heater. Optional type J thermocouple is also available.
4,Heater Voltage: 120V 220V 230V 240V 480V standard (other voltages available on request)
5,Useful wavelength range: 2-10 microns
6,Operating temperature is 300°C to 700°C (572°F - 1292°F)
7,Average Operating Life-Up to 20,000 hrs depending on conditions.
8. Recommended radiation distance from heater is 100 mm to 250 mm.
9,Supplied with 100mm ceramic beaded power leads
Detailed Power Specifications
Size(mm) | Type | Power |
60*60 | Curved/flat/Hollow | Available in 125w and 250w |
122*60/120*60 | Curved/flat/Hollow | Available from 125w to 500w |
122*122/120*120 | Curved/flat/Hollow | Available from 150w to 750w |
245*60 | Curved/flat/Hollow | Available from 150W to 1000w |
245*80 | Curved/flat/Hollow | Available from 150w to 1000W |
Applications
Ceramic heater can be widely used in vacuum forming, dry food, medical treatment sanitation etc kinds of places of infrared dry firing, solidify etc. It has perfect saving energy effect in electron, textile , light industry, chemical , medicine ,food industry etc, has obvious social profit and economy profit.

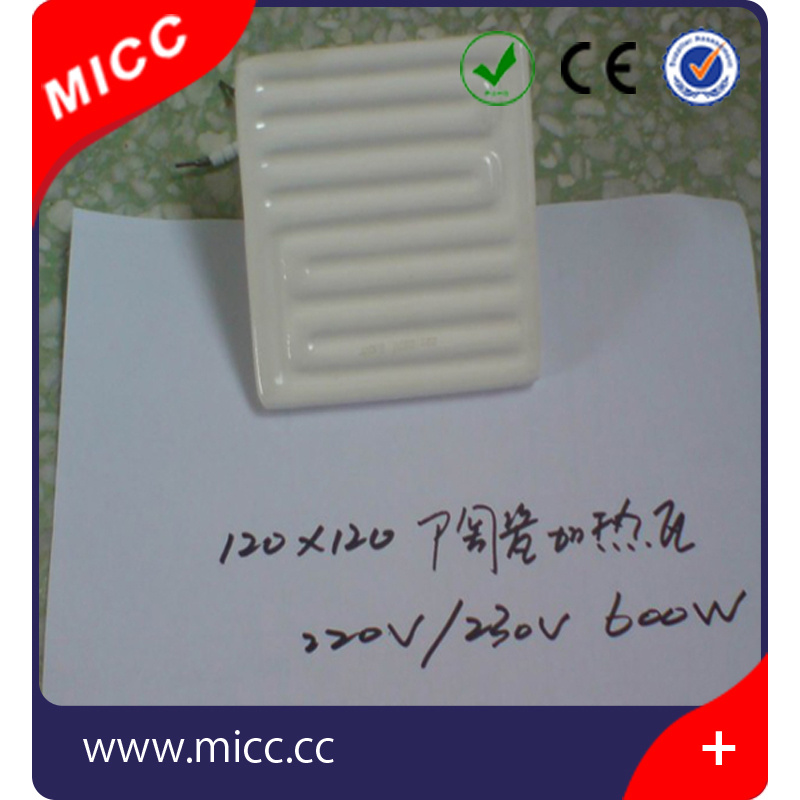

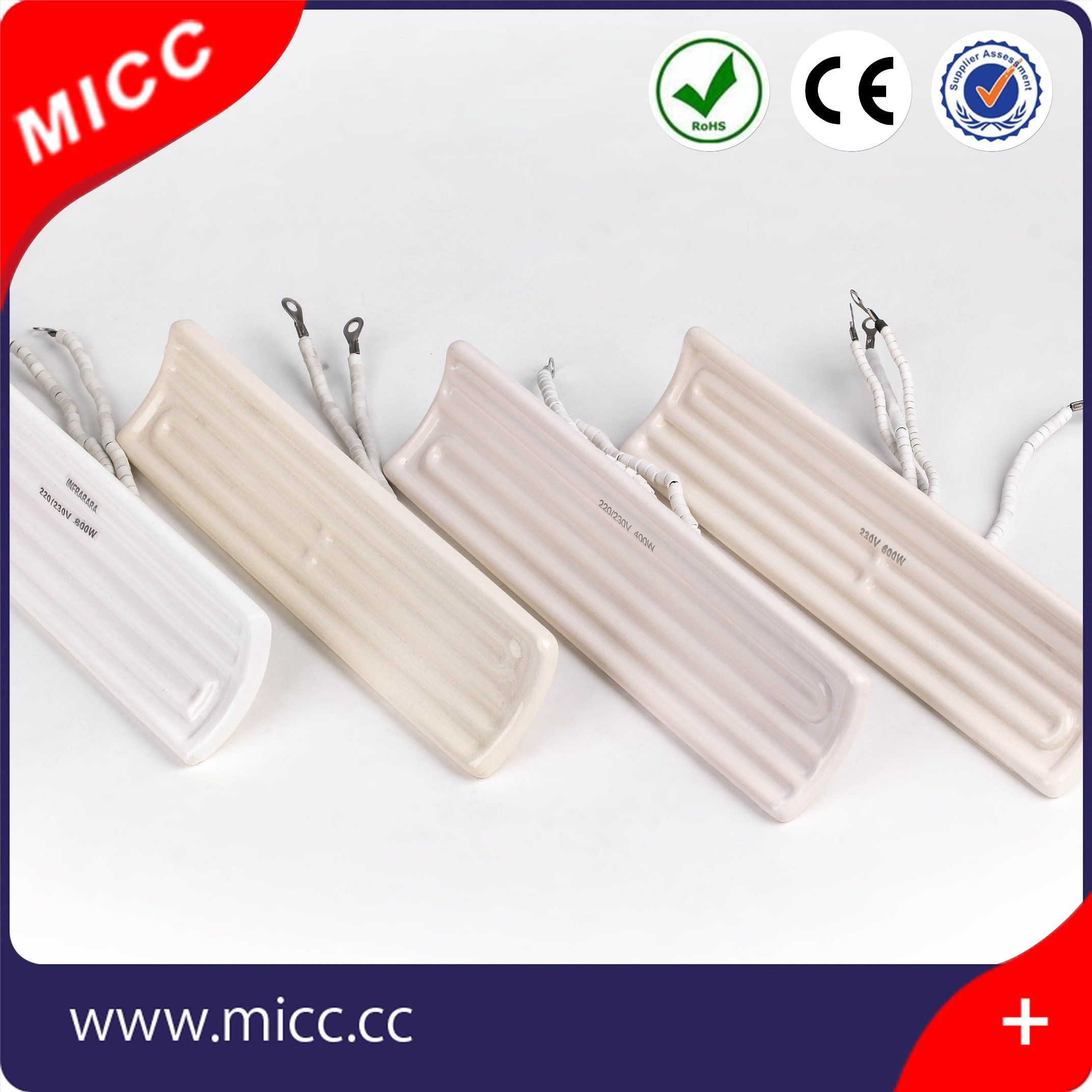

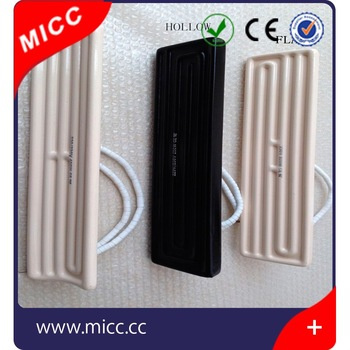

Product show
Advantage
1.Low MOQ: It can meet your promotional business very well.
2.OEM Accepted : We can produce any your design as long as you provide us the drawing.
3.Good Service : We treat clients as friend.
4.Good Quality :We have strict quality control system .Good reputation in the foreigner market
5.Fast & Cheap Delivery: We have big discount from forwarder (Long Contract)
Order Guide
Check below for more information on placing
1. Inquiry-Professional and accurate quotation. |
2. Confirm the price, trade term, lead time, artwork, payment term etc. |
3. MICC sales send the Proforma Invoice with MICC seal. |
4. Customer arranges the payment for deposit and sends us bank slip. |
5.Initial Production step-Inform the clients that we have got the payment. And will make the samples according to your request, send you photos or Samples to get your approval. After approval, we inform that we will arrange the production & inform the estimated time. |
6. Middle Production-send photos to show the production line which you can see your products in . Confirm the estimated delivery time again. |
7. End Production-Mass production products photos. |
8. Clients make payment for balance and MICC ships the goods. Inform the tracking number and check the status for clients. |
9. The order is finished perfectly when you receive the goods and get satisfied with them . |
10. Feedback to MICC about Quality , Service, Market Feedback & Suggestion. And we will do better .
|
Shipment for MICC Products
International express for sample or small orders. Air transportation and sea transportation for big orders.
