| Prod Model: |
ST |
| Dimensions: |
1000X1000X250mm to 1400X1200X400mm |
| Number Of Doors: |
Double |
| Lock & Key: |
Included |
| Mounting Plate: |
Included |
| Plating Board Thickness: |
2.0mm |
| Body Thickness: |
1.5mm |
| Protection Degree: |
IP66 |
| Color: |
Ral7032 or as Per Request |
| Packing: |
1 PC Per Box |
| Type: |
Distribution Metering Box |
| Structure: |
Protection |
| Certification: |
Ce |
| Shell Protection Grade: |
IP66 |
| Brand: |
Tosunlux |
Product Description
Dimensions of ST Waterproof Panel Board| Single Door External Dimensions (mm) | Thickness (mm) |
| Height | Width | Depth | Door | Body | Mounting Plate |
| 250 | 200 | 150 | 1.2 | 1.2 | 2 |
| 300 | 250 | 150 | 1.2 | 1.2 | 2 |
| 300 | 250 | 200 | 1.2 | 1.2 | 2 |
| 300 | 300 | 150 | 1.2 | 1.2 | 2 |
| 300 | 300 | 200 | 1.2 | 1.2 | 2 |
| 400 | 300 | 150 | 1.2 | 1.2 | 2 |
| 400 | 300 | 200 | 1.2 | 1.2 | 2 |
| 400 | 400 | 200 | 1.2 | 1.2 | 2 |
| 400 | 600 | 250 | 1.2 | 1.2 | 2 |
| 400 | 600 | 300 | 1.2 | 1.2 | 2 |
| 500 | 400 | 150 | 1.2 | 1.2 | 2 |
| 500 | 400 | 200 | 1.2 | 1.2 | 2 |
| 500 | 400 | 250 | 1.2 | 1.2 | 2 |
| 500 | 500 | 250 | 1.2 | 1.2 | 2 |
| 600 | 400 | 150 | 1.2 | 1.2 | 2 |
| 600 | 400 | 200 | 1.2 | 1.2 | 2 |
| 600 | 400 | 250 | 1.2 | 1.2 | 2 |
| 600 | 500 | 150 | 1.2 | 1.2 | 2 |
| Single Door External Dimensions (mm) | Thickness (mm) |
| Height | Width | Depth | Door | Body | Mounting Plate |
| 600 | 500 | 200 | 1.2 | 1.2 | 2 |
| 600 | 500 | 250 | 1.2 | 1.2 | 2 |
| 600 | 600 | 250 | 1.2 | 1.2 | 2 |
| 600 | 600 | 300 | 1.2 | 1.2 | 2 |
| 700 | 500 | 200 | 1.2 | 1.2 | 2 |
| 700 | 500 | 250 | 1.2 | 1.2 | 2 |
| 800 | 600 | 200 | 1.5 | 1.5 | 2 |
| 800 | 600 | 250 | 1.5 | 1.5 | 2 |
| 800 | 600 | 300 | 1.5 | 1.5 | 2 |
| 800 | 800 | 200 | 1.5 | 1.5 | 2 |
| 800 | 800 | 300 | 1.5 | 1.5 | 2 |
| 1000 | 600 | 250 | 1.5 | 1.5 | 2 |
| 1000 | 600 | 300 | 1.5 | 1.5 | 2 |
| 1000 | 800 | 250 | 1.5 | 1.5 | 2 |
| 1000 | 800 | 300 | 1.5 | 1.5 | 2 |
| 1000 | 1000 | 300 | 1.5 | 1.5 | 2 |
| 1200 | 800 | 300 | 1.5 | 1.5 | 2 |
| 1200 | 1000 | 300 | 1.5 | 1.5 | 2 |
| Double Door External Dimensions (mm) | Thickness (mm) |
| Height | Width | Depth | Door | Body | Mounting Plate |
| 1200 | 1200 | 400 | 1.5 | 1.5 | 2 |
| 1400 | 800 | 400 | 1.5 | 1.5 | 2 |
| 1600 | 800 | 400 | 1.5 | 1.5 | 2 |
| 1600 | 1000 | 400 | 1.5 | 1.5 | 2 |
| 1600 | 1200 | 400 | 1.5 | 1.5 | 2 |
| 1800 | 800 | 400 | 1.5 | 1.5 | 2 |
| 1800 | 1200 | 400 | 1.5 | 1.5 | 2 |
| 1800 | 1600 | 400 | 1.5 | 1.5 | 2 |
| 2000 | 800 | 400 | 1.5 | 1.5 | 2 |
| 2000 | 1000 | 400 | 1.5 | 1.5 | 2 |
| 2000 | 1200 | 400 | 1.5 | 1.5 | 2 |

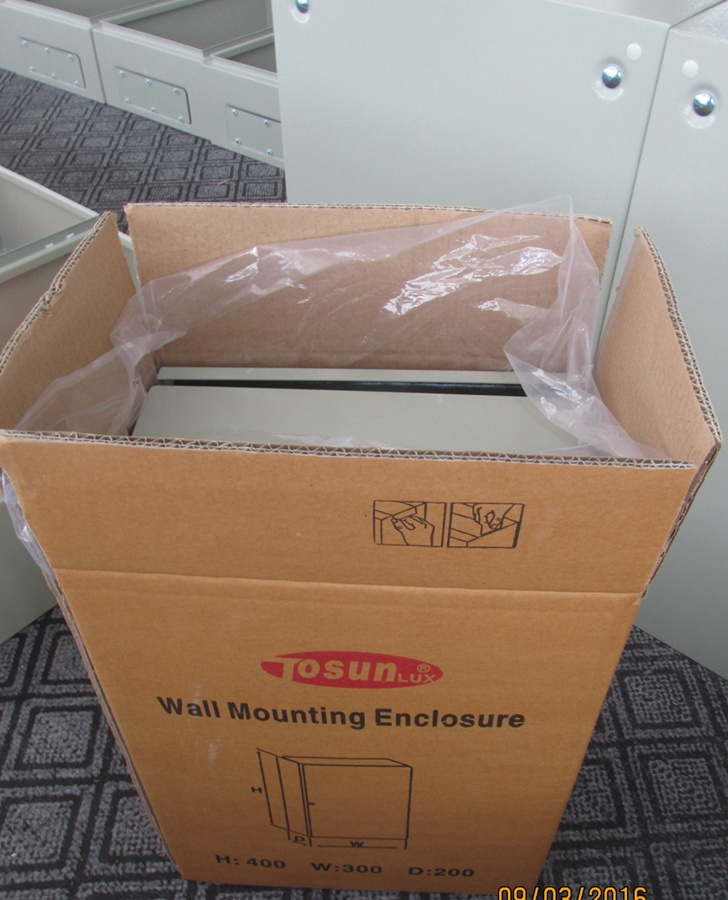

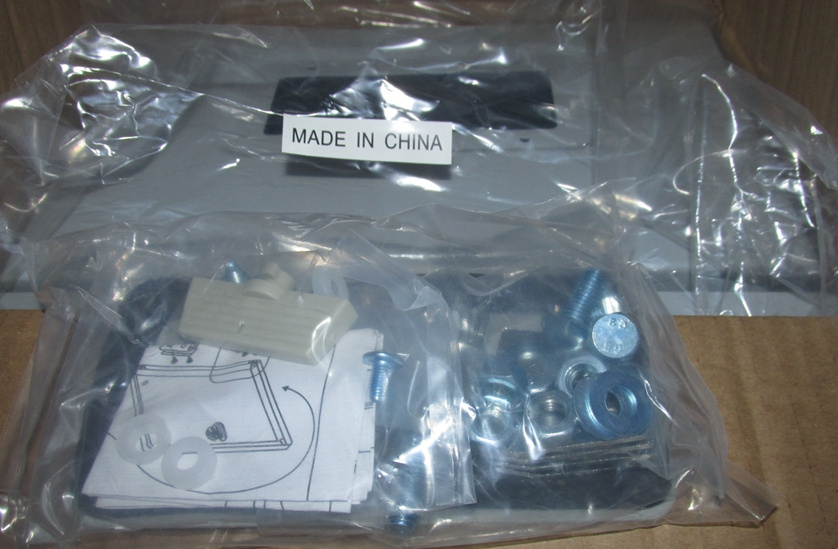

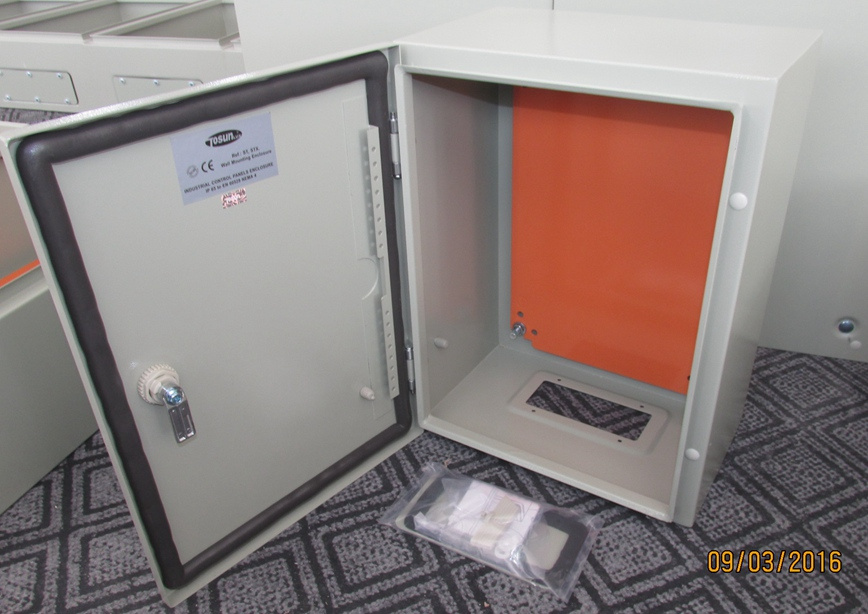

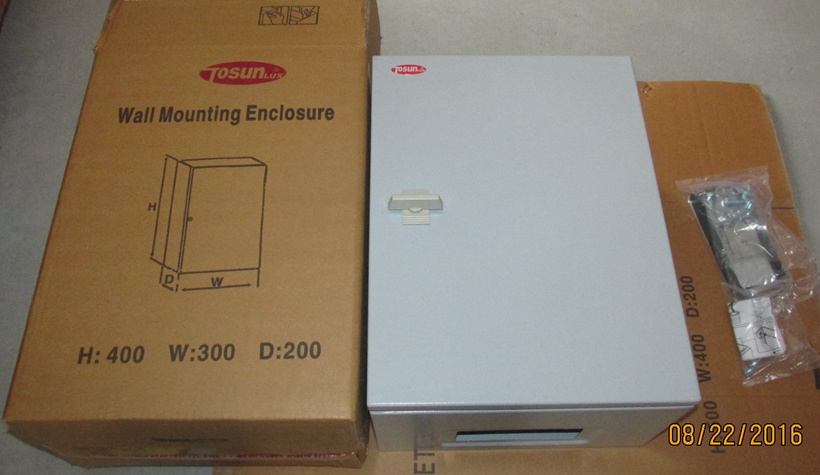

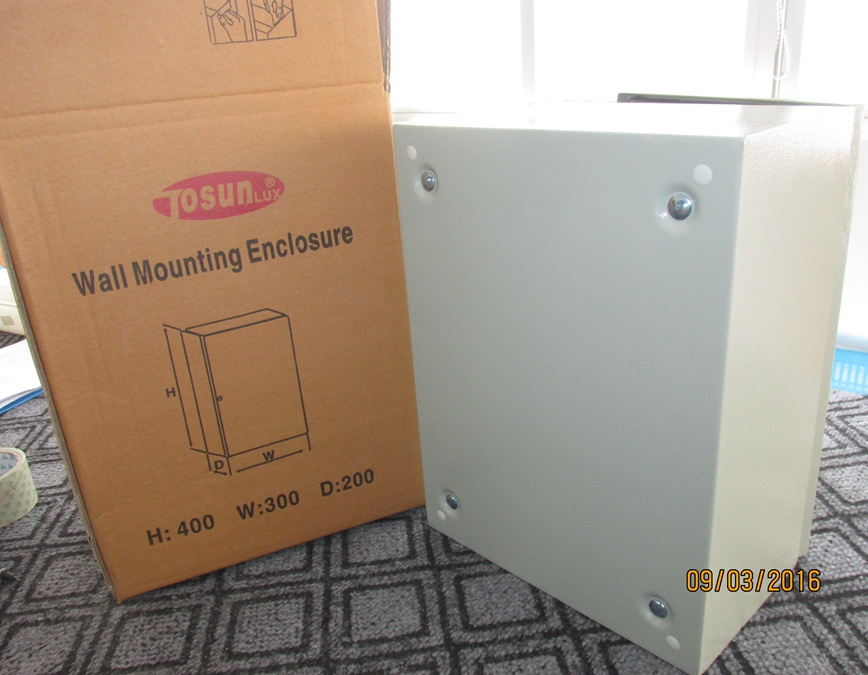

Pictures of ST Waterproof Panel Board
