Metal Cantilever Rack for Warehouse Storage with Ce Approval

Prod Model:	FL-94
Surface Treatment:	Plastic Spray or Baked Paint Finishing
Operation:	Automatic Addressing Artificial Loading
Certificates:	ISO 9001
Features:	Corrosion Protection
OEM:	Yes
ODM:	Yes
Upright Height:	Max 5000mm
Arm Support:	Max 1200mm
Warranty:	at Least 5 Years
Delivery:	Within 15 Days
Material:	Steel
Structure:	Rack
Mobility:	Adjustable
Height:	5-15m
Closed:	Open
Development:	New Type
Serviceability:	Common Use
Weight:	500-3000kg

Product Description

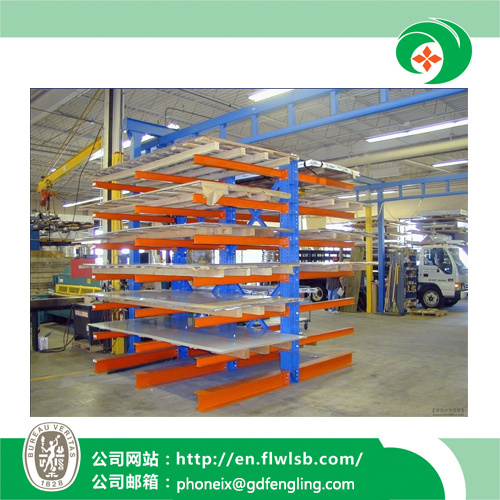

Metal Cantilever Rack for Warehouse Storage with CE Approval

Cantilever Racking

- Specially designed for long or varying lengths materials
- Ideal for products such as metal beams, pipes, wooden boards, steel sheets etc.Widely used in building material stores, mechanical processing industries.
- Hot dipped galvanized cantilever is great for outdoor use
FL Storage, Cantilever Rack, Storage Rack, Racking

Features:
1.Cantilever racking uses special shaped column, high-strength cantilever is connected by high-strength bolt pin (insurance), the height is adjustable, conveniently assemble and disassemble.
2.Both sigle sided base and double sided base are available, each arm can bear up to 1900kgs.
3.Adjustable diagonal flats and connecting bar is designed to improve the whole stablity.
4.Powder coat finish and color can be done as your requirements.

Specification

1.Upright Height:Up to 6000mm
2.Arm Length:Up to 1800mm
3.Capacity:Up to 1200kg each arm
4.Arm level height adjustable by every 100mm
5.Material:High quality raw materials from big steel manufacturers
6.Finish:Powder Coating Standard color blue, orange, grey yellow, green, red.
Hot Galvanized for outdoor use
7.Lead Time:3 weeks.(Icho Storage)
FL Storage, Cantilever Rack, Storage Rack, Racking

Pallet Racking Parts & Accessories:
* Upright sections: 80*60*2.0mm, 90*65/70*2.0mm, 100*70*2.0mm, 120*90/95*2.0-3.0mm, etc
* Box beam sections: 80*50*1.5mm, 100*50*1.5mm, 110*50*1.5mm, 120*50*1.5-2.0mm, 140*50*1.5-2.0mm, 160*50*1.5-2.0mm, etc.,
* Horizontal & diagonal braces, row spacer, upright footplates, safety locking pins,
Bolts & nuts, anchors and all necessary components.

Package & Shipping:
--Wrapped by poly sheets and reinforced by steel straps
--Fixed on the polywood pallets
--Small parts are packed in the boxes or according to customers' requirements.
Container load: 10-15 ton per 1x20ft container, 20-25 ton per 1x40ft container

FAQ

1.Q:Are you a factory or trading company?

A:Factory, which was established in 2002. Specialized in providing expert service, including design, manufacture, installation & maintenance for the logistic industries,warehouse equipments and sheet metal products.

2.Q:What is the term of payment?

A:T/T,L/C,Western Union, MoneyGram are available. As usual, pre-paid full payment or 30% deposit then pay the balance before delivery.

3.Q:What is your delivery time?

A:It depends on the order quantity and racking types. Generally, within 20 work days for ordinary order quant after receiving the deposit.

4.Q:Which port will be used as loading port?

A:Guangzhou port, the closest port to us, is recommended strongly as loading port.

5.Q:May I know the status of my order?

A:Yes.We will send you information and photos at different production stage of your order.Every step will be send to you in time.
