Prod Model: |
C Series |
OEM&ODM: |
Yes |
Protective: |
Rain-Proof |
Color: |
Black/White |
Protection: |
Overcurrent |
Type: |
Distribution Metering Box |
Structure: |
Protection |
Brand: |
Upsen |
Product Description

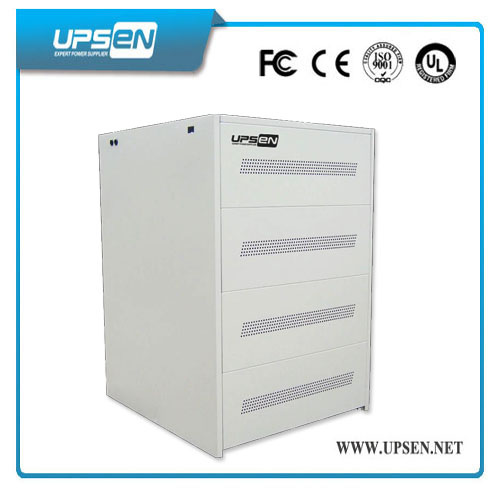

Metal battery cabinet for inverter and ups
Key Features;
1.wheels optional
2.Light steel stuff , firm & flexible
3.Circuit breaker for over current protection optional
4.Components design makes transferring & removing easy, fast and safe
5.Provide OEM Service, design the Battery Cabinet size as customers' request
Technical Specification
Model | Dimensions(W*D*H) (mm) | Battery | Weight(kg) |
C1B | 280*190*220 | Standard 24AH/17AH | 2/3pcs | 2.5 |
C1 | 435*210*270 | Standard 24AH/38AH | 2pcs | 4 |
Standard 65AH/100AH | 1pc |
C1A | 540*210*230 | Standard 24AH/38AH | 3pcs | 4.5 |
C2 | 470*390*310 | Standard 24AH/38AH | 6/4pcs | 7.5 |
Standard 65AH/100AH | 2pcs |
C3 | 585*450*310 | Standard 24AH/38AH | 8/6pcs | 9.5 |
Standard 65AH/100AH | 3pcs |
C4 | 470*390*600 | Standard 24AH/38AH | 8pcs | 14 |
Standard 65AH/100AH | 4pcs |
C6 | 585*450*610 | Standard 24AH/38AH | 12pcs | 18 |
Standar 65AH/100AH | 6pcs |
C8 | 780*450*610 | Standard 24AH/38AH | 20/16pcs | 23 |
Standard 65AH/100AH | 8pcs |
C10 | 950*450*610 | Standard 24AH/38AH | 20pcs | 29 |
Standard 65AH/100AH | 10pcs |
C12 | 780*470*910 | Standard 24AH/38AH | 24pcs | 32 |
Standar 65AH/100AH | 12pcs |
C16 | 780*470*1190 | Standard 24AH/38AH | 32pcs | 45 |
Standard 65AH/100AH | 16pcs |
C20 | 950*470*1190 | Standard 24AH/38AH | 40pcs | 55 |
Standard 65AH/100AH | 20pcs |
C24 | 1150*470*1190 | Standard 65AH/100AH | 24pcs | 58 |
C32 | 800*880*1190 | Standard 65AH/100AH | 32pcs | 70 |
Competitive Advantages:
1: Good after-sales service, we will be full responsible for any faults caused by our side
2: Professional experience in power field more than 10 years
3: Professional technical support before and after sales
4: Timely response, fast delivery time and flexible operations to satisfy any customers' special requests.
5: Free OEM & ODM Service
6: Competitive price, quality and mature products
Shenzhen UPSEN Electronic Co., Ltd. Which is located in south of China, Shenzhen City, close to Pearl of the Orient HK, with beautiful environment and convenient transport.
We are a private high-tech enterprise integrating researching & development, production & operation and technical services as a whole, which is specialized in Electric, Electronic and Energy fields for a long time. Our main products are UPS Power, Inverter Power, Battery Power, Solar&Wind Power. We are dedicated to offer quality power and power solution for Data-center, Telecom, Bank, Hospital, Transportation, Industry, Army, Security, and civil & office area etc. Moreover, we have mastered the core technology of power products through our independent research, we are one of few domestic enterprises which can meet the customers' customized requirements, and provide professional power solutions.
We already past ISO9001 international quality system certification, and established a complete quality system ranging from material source, process, assembling to testing. All our products are with CE Certificate, which exported to more than 30 countries and areas, like Australia, Europe, Africa, North America, South America, the Middle East, central Asia, southeast Asia etc.
We will always offer excellent quality and products to customers. Hope to make Integrity and Double-Win business with you, and to be your professional power supplier and solve your any power problems. We are sure UPSEN can achieve more successes with our efforts and your support.
