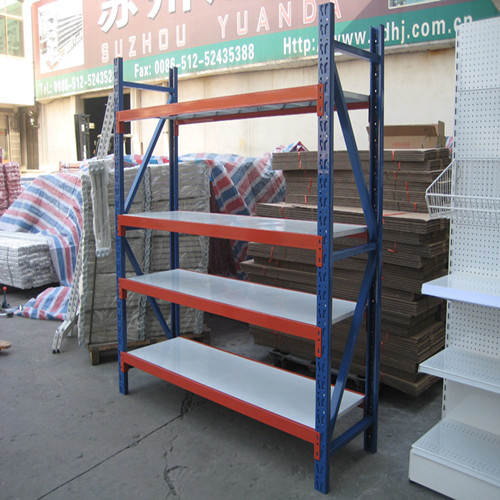

Metal Adjustable Shop Storage Display Warehouse Rack

Prod Model:	YD-S026
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Metal Rack:	Metal Rack Shelves
Size:	L2000*W600*H2000mm
Shelf:	2~6 Layers
Color:	Any Color
Capacity:	500~800kg/Layer
Finish:	Good Powder Coated
MOQ:	10PCS
Loading Port:	Shanghai
Certification:	ISO9001:2008&Ce
Material:	Steel
Structure:	Rack
Mobility:	Adjustable
Height:	0-5m
Closed:	Open
Development:	New Type
Serviceability:	Common Use
Weight:	1000~3000kg/Layer

Product Description

Metal Adjustable Shop Storage Display Warehouse Rack Shelves

*  any color and size can be available
*  high quality and factory  price
*  ISO standard and large capacity
*  rich experience in trade for 15 years
*  get a variety of international quailty certisification

Detailed Product Introduction:
1) specification: L2000*W600*H2000mm;
2) main size:
*post: 47*55*1.5mm;
*beam: 40*60*1.1mm;
*board: 0.5mm;
3) material: cold roll steel;
4) color: any color;
5) layer 2~6 layers;
6) capacity: 500~800kg/layer;
7) finish: Good powder coating;
8) features: *pallets can be located, accessed and moved individually
                     *rapid handling of almost all types of pallet goods.
                     *infinitely adjustable and offering a wide range of options and components to accommodate specialized needs.
                     *maximizes space use in any warehouse configuration while retaining optimum product accessibility.
                     *strength and rigidity prevents compression damage to goods.
                     *bottom level of pallets can be stored on the floor, lowering structure costs
9) MOQ: 10 pieces;
10) certification:ISO9001:20008&CE;
11) loading port:Shanghai;
12) transportation: select different ways refers to the quantity or the opinion of trade company;
13) delivery: within 15 days after we get deposit, much depends on the quantity your order;
14) packing: knockdown packaging according to part dimensions with plastic bubble film/carton;
15) samples: sample supply is Ok, but you need to pay for the sample cost and freight cost;
16) contact(Lemon): Company Tel:  +86-579-85585738
                                     Company Fax:  +86-579-85583428
                                     Phone:+86-15088282637



We produce a wide variety of warehouse equipment, and we can make the production according to your requirements, such as color, size, and so on.Here we have a wide variety of styles, and welcome to our factory.

item	specification L*W*H(mm)	post	beam	layer board	layer	load-bearing
heavy duty rack	L2400*W1000*H2500mm(adjustable)	70*90*2.0mm(adjustable)	50*80*2.0mm(adjustable)	0.7*0.8*1.0*1.5mm	2-5	1000-3000kg/layer
middle duty rack	L2000*W600*H2000mm(adjustable)	40*80*1.0mm(adjustable)	40*60*1.1mm(adjustable)	0.5*0.4*0.35mm	4	300-500kg/layer
light duty rack	L1800*W500*H2000mm(adjustable)	30*50*1.0mm(adjustable)	30*50*1.0mm(adjustable)	0.5*0.35*0.27mm	4	100-200kg/layer

Product Advantage:
1) Every layer of the board can be adjusted freely;
2) Color and size can be adjusted according to your requirements;
3) The heavy-duty standing posts is good looking and anti-rust with fine powder-coating;
4) Different thickness, size, layers, and colors are available for you to choose;
5) Popular design and perforated back panel, easy to assemble and dismantle, is safe to keep heavy goods with strong construction.

Company Introduction:
We hve been exporters of supermarket & warehouse equipment for more than 15 years, which have enjoyed grest popularity in world market. And our products have passed CE&ISO9001: 2000 certificate. We also can design according to customers' requirements. If you interested in our producs, you can contact with me. And welcome to vist our 1000 square meters of exhibition hall or our factory.

Contact with me (Lemon):
*Company Tel: +86-579-85585738
*Company Fax: +86-579-85583428
*Phone: +86-15088282637

specification	L2000*W600*H2000mm(adjustable) special sizes also available to specific storage needs .
main size	1)post: 47*55*1.5mm; 2)beam: 40*60*1.1mm; 3)layer board: 0.5mm; 4)horizontal & diagonal braces, upright footplates, safety locking pins, bolts & nuts, anchors and all necessary components.
layer	2~5 (adjustable)
load-bearing	500~800kg/layer
materials	cold roll steel
color	different color can be available
finish	good powder-coated
certification	CE&ISO9001:2008
MOQ	10 pieces
loading port	Shanghai
transportation	select different ways refers to the quantity or the opinion of trade company
delivery	within 7-15 days after we get deposit, much depends on the quantity your order. We promise delivery on time
terms of payment	T/T(30% T/T in advance, balance should be paid before shipping) Western Union
packing	board in carton, upright and beam in plastic bubble film (quality packing make sure goods safety)
samples	sample supply is Ok, but you need to pay for the sample cost and freight cost;
features	1) pallets can be located, accessed and moved individually 2) rapid handling of almost all types of pallet goods. 3) infinitely adjustable and offering a wide range of options and components to accommodate specialized needs. 4) maximizes space use in any warehouse configuration while retaining optimum product accessibility. 5) strength and rigidity prevents compression damage to goods. 6) bottom level of pallets can be stored on the floor, lowering structure costs
remark	please offer us the following information in details when you place you order 1)full details of the size L*W*H and the layer board; 2)the color you required; 3)how many pieces you want; 4)the surface treatment.
