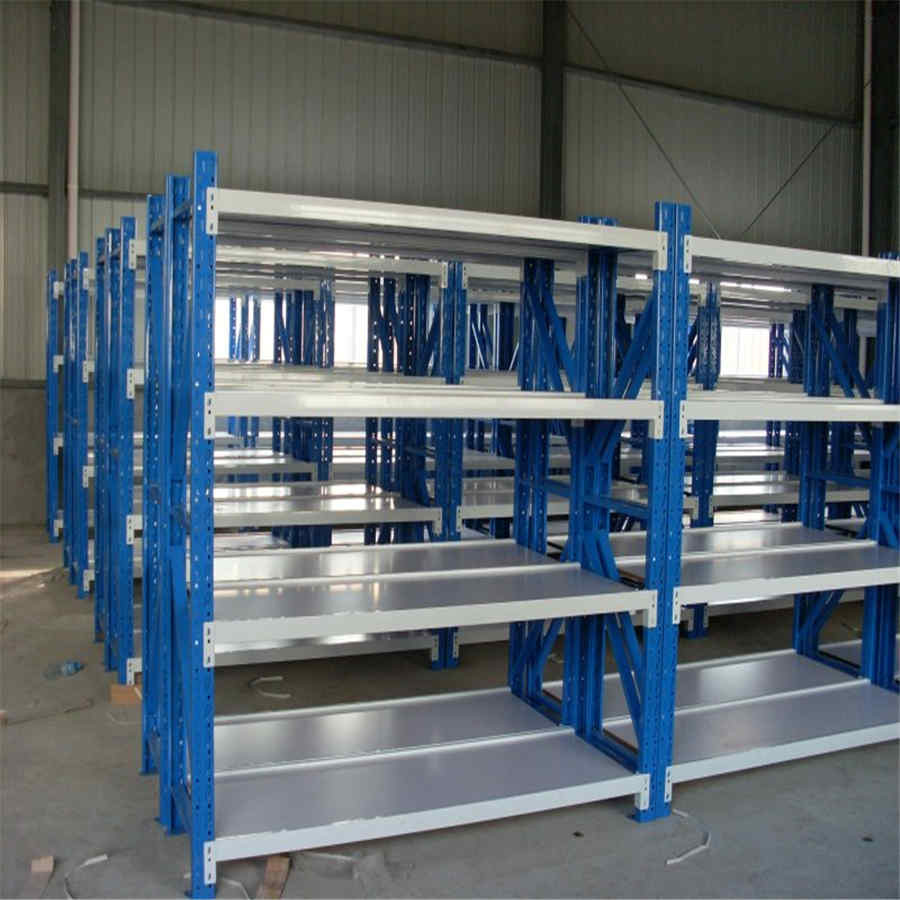

This kind of rack is also called Long Span Shelving, medium rack, tire rack or others. It is constructively similar to Light Pallet Rack, but designed to store non-palletized goods. This is an intermediate application between Light and Heavy Duty applications. It is designed for loading/unloading goods manually without mechanical equipment. Stored goods can be from smallest components to large and awkwardly shaped items.
Features and the Advantage:
A. It is used widely and suitable for automotive components, supermarkets, libraries, hospitals and pharmacies etc.
B. The systems is available from single-tier for simple requirement to multi-tier applications (up to 5 tiers), utilizing full warehouse height.
C. High bay Long span racks are also available (above 3 meters high) with man-up stacker crane or order picking trucks.
D. Pick & Deposit is done manually.
E. The upright is perforated at a pitch of 75 mm allowing boltless mounting of the beams. The tapered shape of the hook guarantees a stable and rigid design, even without back bracing.
F. "First in first out" of goods are realized . It is convenient to access and suitable for such places as the two sides of the assembly lines, distribution centers, etc.
G. The loading capacity of each layer is 500kg at the most.
The Specification and Parameters: | Loading capacity | 100-300kgs | 300-500kgs |
Popular Size
(mm) | L1800*W600*H2000 | L1800*W600*H2000 |
| L2000*W600*H2000 | L2000*W600*H2000 |
| L2000*W600*H2500 | L2000*W600*H2500 |
| Upright Spec: | 50*30*1.2mm 80*40*1.2mm 55*47*1.5mm |
| Beam Spec: | 50*30*1.5mm / 60*40*1.5mm / 80*50*1.5mm |
| Remarks: | 1.Surface treatment: powder coating or galvanized |
| 2.Each lever height adjustable freely with pitch 50mm |
| 3. Accessories: We provide Horizontal & diagonal braces connecting Upright Frames for stronger structure, row spacer, upright footplates, safety locking pins, Bolts & nuts, anchors and screw, U-shape, L-shape Post Protector, Frame Barrier, Pallet Supporting Bar, Steel Pallets, Plastic Pallet, Special custom-made Pallets, Cage, Mesh Container, Mesh Deck, and all necessary components. |
Quotation requirements, kindly inform us the info as below
- Drawing of racking or warehouse (if available)
- Size of your warehouse (Length x Width x Clear height)
- Size (W*D*H) & weight of pallet (after loading)
- How many layers do you need?
Package and Performance Pictures Showing

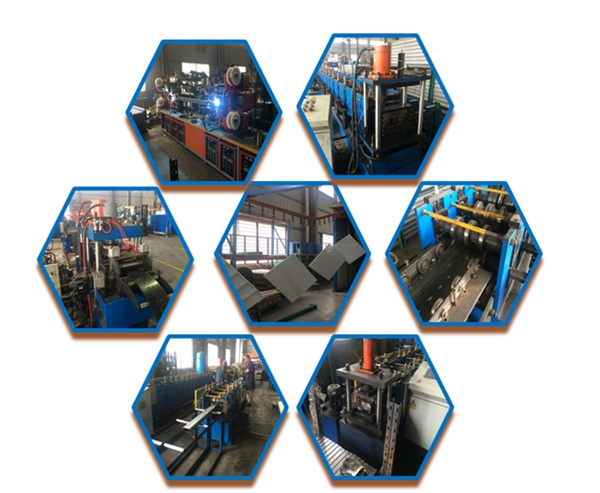

Production Equipment
FAQ
Q: What is your trading terms?
A:
1) Payment term: T/T 30% deposit after order confirmed, 70% balance paid against bill of lading . or L/C.
2) Lead time:normally in 30 days after deposit received.
3) Sample policy: Samples are always available for each model. Samples can be ready in 7-15 days once payment received.
4) Shipping port: Shanghai China.
5) Discounts: We offer discount for large quantity.
Q: How I can delivery my goods?
A:
1) Sea Freight: we will update sea freight once we know your sea port where goods will be delivered.
2) Agent designated by client: please tell us the contact detail of your shipping agent and we will arrange to deliver the items.
Q: what is your service?
A:
1) Your inquiry related to our products or prices will be replied in 24 hours.
2) Well-trained and experienced staffs to answer all your enquires in fluent English.
3) OEM&ODM, any your customized racks we can help you to design product.
4) We have very experienced professional engineers to make best solutions.
Q: How to purchase your product?
A:
Design drawing → Confirm drawing →Quotation → PI → Confirm PI → Arrange 30% deposit →Manufacturer→QC inspect → Pay balance → Shipping
Q: what is your advantage?
A:
1) Warranty: two years warranty, the broken parts will be replaced and sent to you.
2) Factory price: Factory direct sale competitive price.
