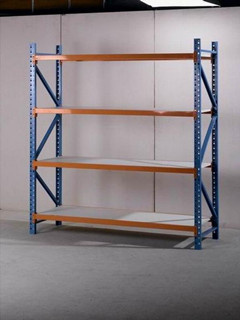

Medium Duty Steel Storage Solutions Systems Ajustable Longspan Shelfs

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Certificates:	ISO, CE, SGS,RoHS
Surface Treatment:	Plastic Spray or Baked Paint Finishing
Pitch:	50mm
OEM:	Yes
Export Markets:	Global
Material:	Steel
Structure:	Layer Frame
Serviceability:	Common Use
Weight:	150-500kg
Mobility:	Adjustable
Height:	0-5m
Closed:	Open
Development:	Conventional
Type:	Longspan Shelving

Product Description

Medium Duty Racking/Shelving/Shelf/Shelves is a strong, durable, versatile and economical shelving system that looks good and minimises lost space from uprights making it ideal for a wide variety of applications from archives to automotive, factories, warehouses, retail, wholesale and commercial.

1. Made of special mode steel
2. Make the best of space, increase the store capability
3. With high safety factor
4. Height between floors can be adjusted with the pitch of 50mm
5. Good performance, easy to disassemble and Install
6. Its surface is treated by electrostatic powder coating;
7. The neighboring racks can be linked together to improve strength. (Note: The Load capacity of each rack cannot be improved)
8. Three clapboard for your choice: Flake board, netting board and Galvanized board.
9. Applicable to the goods which are long and heavy.
10. Suitable for the spare parts of factory, storage, fitting line.
11. Can be made according to the need of the customers.
12. Multi-purpose, they are the idealist new generation of racks.
13. The unit of racking load bearing could reach 800kg-1500kg, with high-strength laminates to meet various storage requirements.

Could you pls let us know the following information to make a quick quotation?
1. AUTOCAD drawings(if not available, we could provide your requirement to our designer to design the racking system for you)
2. Size of your warehouse
3. Width, Depth of your shelf
4. Height of your racking system and how many bays and layers you want?
5. Loading capacity of each layer?
6. RAL Color you would like to order

Material:
High-quality steel from BAO Steel Co. Ltd., the largest steel manufacturer in China.
Coating:
High-quality Powder Coating.

Our Storage Rack Advantages

1. Color and size can be adjusted according to your requirements.
2. Upright and beam is formed by high-quality cold rolled steel, with an omega shaped section to make sure they are very strong.
3. Box beam or step beam used. Beam can be freely adjusted by pitch 50mm or 75mm.
4. Connection of the upright and beam is by wedging, equipped with safety pin to make sure of the safety.
5. Rich accessories: upright protector, guide rail, frame barrier, row spacer, wire decks, steel shelf, etc.
6. Stable structure, large loading capacity, convenient sorting.
7. Compatible with most type of handling equipment and building structures.
8. First level pallets can be placed on the floor.
9. Easy to install and dismantle.

Our Advantages

1. High and stable quality.
2. Delivery timely.
3. Excellent rolling technology and patents

Services:

Our free services include consultations and sample CAD layouts of your proposed rack system. Don't hesitate to consider reviewing the racking systems on site or at our headquarters. Get the racking system you need at the best price guaranteed.


Remark:

We are very professional in producing various pallet racking, longspan shelving, cantilever racks, rivet shelving, drive in racks, steel mezzanine, carton flow racking and other related storage equipments.

Please don't hesitate to contact us, we are very confident to provide you with satisfying products!

Features	1. All racking shall be fixed onto the ground by means of Expansion bolts 2. Each beam is secured by 2 safety pins 3. Loading capcity: 150-800kg/level 4. Apperance is the Electro Static Dusting Spray 5. The layer can be steel plate, ply-wood
	1. Easy assemble and disassemble; 2.75mmcan be freely adjusted for beam 3. Can highly improve storage space 4. Units can be connected to limitless lengths according to site space.
Levels	2-8 levels
Loading Capacity /layer	150kg-500kg/level Also can design according your requirement
Specification of rack	Length	1000mm-2700mm
	Depth	500mm-1200mm
	Height	2000mm-5000mm
	Note: Also can design and produce according to your special requirements
Upright specification	55*45*1.5mm 55*45*1.5mm (Triple upright) 55*45*1.8mm 55*45*2.0mm
Beam Specification	50*40*1.5mm; 60*40*1.5mm; 70*40*1.5mm; 80*50*1.5mm. ect
Decking	Steel plate: 28/18H*T1.0 mm    OR      plywood: 2440L*1220W*18H mm
