| Prod Model: |
JT05 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Surface Treatment: |
Plastic Spray or Baked Paint Finishing |
| Color: |
as Required |
| Upright: |
55*47*2.0mm |
| Pitch: |
50mm |
| Loading Capacity: |
300-800kg |
| ODM: |
Yes |
| OEM: |
Yes |
| Type Of Company: |
Manufacturer |
| Loading Port: |
Shanghai |
| Delivery Time: |
10-20 Days According to Quantity |
| Serviceability: |
Common Use |
| Development: |
New Type |
| Closed: |
Open |
| Weight: |
150-500kg |
| Mobility: |
Adjustable |
| Structure: |
Rack |
| Material: |
Steel |
| Height: |
Selective |
Product Description

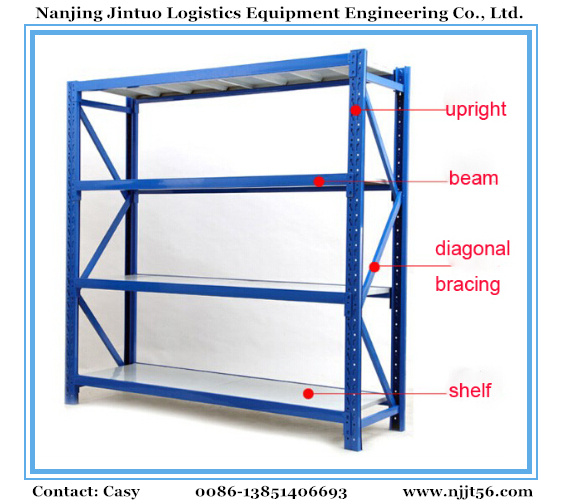

Medium Duty Rack with Steel Panel for Warehouse Storage
Features:
1. Rigid-structure, durable, versatile and economical shelving system, most widely used for storage of different items.
2. Available in wide range of shelving height, depth & length and loading capacities to clients' storage needs.
3. Fully adjustable shelf height.
4. Very easy to install and dismantle.
5. Rapid handling and direct access of almost all types of goods.
6. Maximizes space use in any storeroom configuration while retaining optimum productaccessibility.
7. Strength and rigidity prevents compression damage to goods.
Parameters:
Loading Capacity: 300-500kgs UDL/level as general, up to 1, 000kgs UDL/level as special request
Racking Height: 1, 800-3, 000mm as general, up to 11, 000mm as special request
Racking Depth: 300-600mm as general, up to 1, 200mm as special request
Beam Length: 1, 200-2, 000mm as general, up to 3, 000mm as special request
Racking Finish: Powder Coated Finish or Galvanised Finish for Steel Panels and upright Frame
Please inform us the listed questions in your inquiry for quick quotation:
A) The warehouse outline drawing
B) The size of shelf (length/mm*width/mm*height/mm)
C) How many bays you want
D) The loading capacity of each layer
E) The RAL color you want
F) The layers of each shelf
Welcome to Jintuo! !
Any more details, please feel free to contact me!
Contact Information
Casy
Tel: 0086-025-85363177, 0086-13851406693
Fax: 0086-025-86109278
| L: 1200 | L:1500 | L:1800 | L:2000 | L:2400 |
| W: 500 | 450 kg | 450 kg | 400 kg | 350 kg | 250 kg |
| W:600 | 450 kg | 450 kg | 400 kg | 350 kg | 250 kg |
| W:700 | 400 kg | 400 kg | 350 kg | 350 kg | 250 kg |
| W:800-I | 400 kg | 350 kg | 350 kg | 300 kg | 250 kg |
| W:900-I | 350 kg | 350 kg | 300 kg | 300 kg | 200 kg |
| W:800-II | 500 kg | 500 kg | 500 kg | 450 kg | 400 kg |
| W:900-II | 500 kg | 500 kg | 500 kg | 450 kg | 400 kg |
| W:1000-II | 500 kg | 500 kg | 450 kg | 450 kg | 400 kg |
| W:1100-II | 500 kg | 500 kg | 450 kg | 450 kg | 400 kg |
| W:1200-II | 500 kg | 500 kg | 450 kg | 450 kg | 400 kg |
| Upright: 55*47*2.0mm, Pitch: 50mm |
| Height: 2.0m-6.0m |
