Medium Duty Longspan Warehouse Storage Shelving Rack for Heavy Goods

Name: Medium Duty Longspan Warehouse Storage Shelving Rack for Heavy Goods
Brand: thisfurniture.com
SKU: 837039835
Availability: InStock
Rating: 4.7 (125 reviews)

Price:	US $ 150/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	HBE-SR-13
Finish:	Plastic Powder Coating
Color:	Pantone Color Available
OEM:	Available
Product:	Heavy Duty Pallet Storage Rack Warehouse Racking
Material:	Steel and Reinforced Concrete
Structure:	Layer Frame
Mobility:	Combined
Height:	5-15m
Closed:	Open
Development:	Conventional
Serviceability:	Common Use
Weight:	More Than 2 Tons

Product Description

medium duty longspan warehouse storage shelving rack for heavy goods

Features:

1) Height: 1800-2500mm
2) Width: 450-600mm
3) Length: 1200-2000mm
4) Load capacity: 200-500kg/layer
5) Material: Cold rolled steel tube
6) Separable
7) Can be connected with another shelf
8) Available in assorted colors
9) Practical, convenient and attractive
10) Customized orders welcomed

Outer packing:
Knockdown packaging according to part dimensions

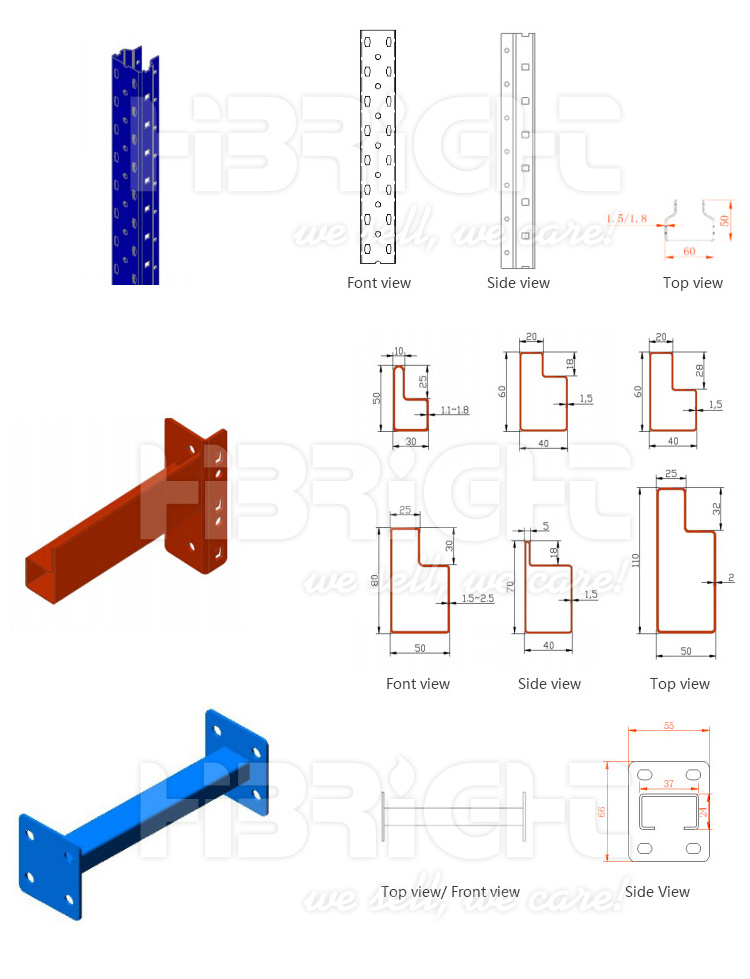

Upright frames Keyhole-style post Cross section 3" x 3"	Size (in inch)	Size (in mm)	Weight (kgs)
1( thickness 1.9mm )	36" X 96"	914.4*2438.4	27.591
2( thickness 1.9mm )	36" X 120"	914.4*3048.4	33.731
3( thickness 1.9mm )	36" X 144"	914.4*3657.6	38.607
4( thickness 1.9mm )	36" X 168"	914.4*4267.2	45.084
5 thickness 1.9mm )	36" X 192"	914.4*4876.8	49.929
6( thickness 1.9mm )	36" X 216"	914.4*5486.4	55.702
7( thickness 1.9mm )	36" X 240"	914.4*6096.0	62.679
8( thickness 1.9mm )	42" X 96"	1066.8*2438.4	28.999
9( thickness 1.9mm )	42" X 120"	1066.8*3048.0	35.210
10( thickness 1.9mm )	42" X 144"	1066.8*3657.6	39.984
11( thickness 1.9mm )	42" X 168"	1066.8*4267.2	46.594
12( thickness 1.9mm )	42" X 192"	1066.8*4876.8	51.306
13( thickness 1.9mm )	42" X 216"	1066.8*5486.4	57.232
14( thickness 1.9mm )	42" X 240"	1066.8*6096.0	64.709
15( thickness 1.9mm )	48" X 96"	1219.2*2438.4	30.529
16( thickness 1.9mm )	48" X 120"	1219.2*3048.0	36.740
17( thickness 1.9mm )	48" X 144"	1219.2*3657.6	42.871
18( thickness 1.9mm )	48" X 168"	1219.2*4267.2	48.195
19( thickness 1.9mm )	48" X 192"	1219.2*4876.8	53.091
20( thickness 1.9mm )	48" X 216"	1219.2*5486.4	58.813
21( thickness 1.9mm )	48" X 240"	1219.2*6096.0	66.769
