| Prod Model: |
JT02 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Surface Treatment: |
Plastic Spray or Baked Paint Finishing |
| Color: |
as Required |
| Upright: |
55*47*2.0 |
| Pitch: |
50mm |
| Loading Capacity: |
300-800kg |
| ODM: |
Yes |
| OEM: |
Yes |
| Type Of Company: |
Manufacturer |
| Loading Port: |
Nanjing |
| Delivery Time: |
10-20 Days According to Quantity |
| Material: |
Steel |
| Structure: |
Rack |
| Mobility: |
Adjustable |
| Weight: |
150-500kg |
| Closed: |
Open |
| Development: |
New Type |
| Serviceability: |
Common Use |
| Height: |
Selective |
Product Description

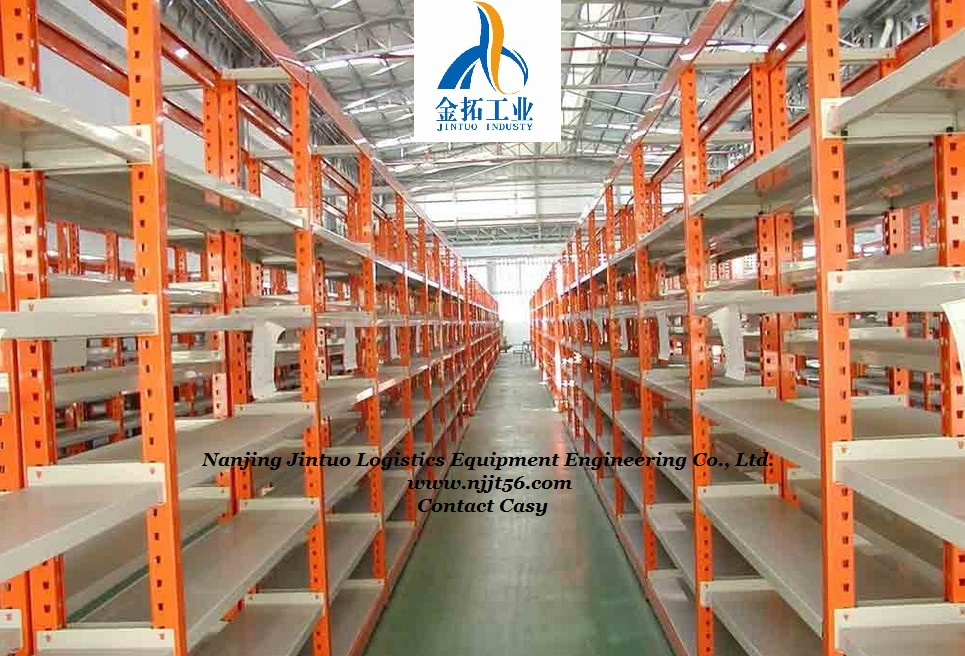

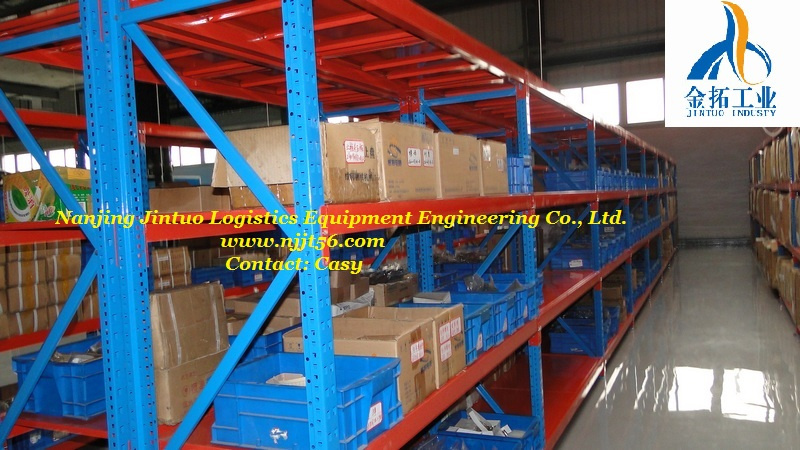

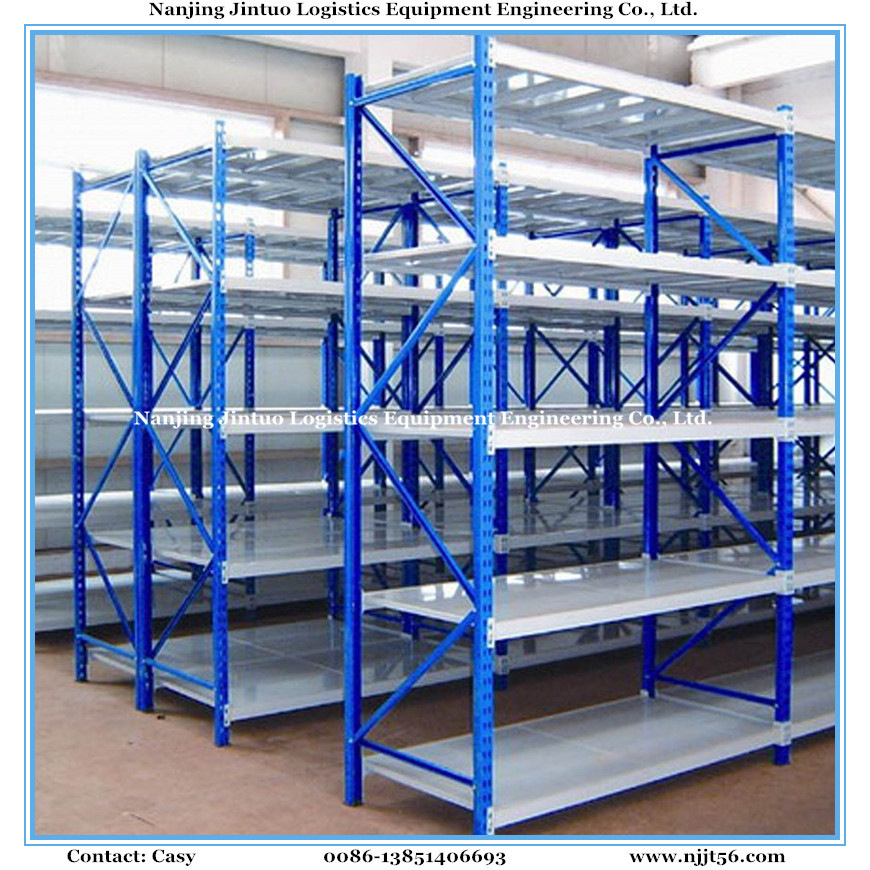

Medium Rack/ Middle Weight Shelving/ Medium Duty Type RackFeatures: 1. Rigid-structure, durable, versatile and economical shelving system, most widely used for storage of different items.
2. Available in wide range of shelving height, depth & length and loading capacities to clients' storage needs.
3. Fully adjustable shelf height.
4. Very easy to install and dismantle.
5. Rapid handling and direct access of almost all types of goods.
6. Maximizes space use in any storeroom configuration while retaining optimum productaccessibility.
7. Strength and rigidity prevents compression damage to goods. Parameters:Loading Capacity:300-500kgs UDL/level as general, up to 1,000kgs UDL/level as special request
Racking Height:1,800-3,000mm as general, up to 11,000mm as special request
Racking Depth:300-600mm as general, up to 1,200mm as special request
Beam Length:1,200-2,000mm as general, up to 3,000mm as special request
Racking Finish:Powder Coated Finish or Galvanised Finish for Steel Panels and upright Frame
B) The size of shelf (length/mm*width/mm*height/mm)
C) How many bays you want
D) The loading capacity of each layer
E) The RAL color you want
F) The layers of each shelf
| Section of Upright (mm) | Length (mm) | Depth (mm) | UDL (kg) |
| 55x55x1.5 | 1200 | 470 | 300 |
| 55x55x1.5 | 1200 | 600 | 350 |
| 55x55x1.5 | 1200 | 720 | 350 |
| 55x55x1.5 | 1200 | 920 | 450 |
| 55x55x1.5 | 1200 | 1180 | 450 |
| 55x55x1.5 | 1500 | 470 | 200 |
| 55x55x1.5 | 1500 | 600 | 300 |
| 55x55x1.5 | 1500 | 720 | 300 |
| 55x55x1.5 | 1500 | 920 | 400 |
| 55x55x1.5 | 1500 | 1180 | 400 |
| 55x55x1.5 | 1800 | 470 | 250 |
| 55x55x1.5 | 1800 | 600 | 250 |
| 55x55x1.5 | 1800 | 720 | 250 |
| 55x55x1.5 | 1800 | 920 | 400 |
| 55x55x1.5 | 1800 | 1180 | 400 |
Note: 1) Standard height are 1500mm, 1800mm, 2000mm, 2400mm, 3000mm, and the pitch is 50mm.
2) Please contact the supplier if you want non-standard specification. |
