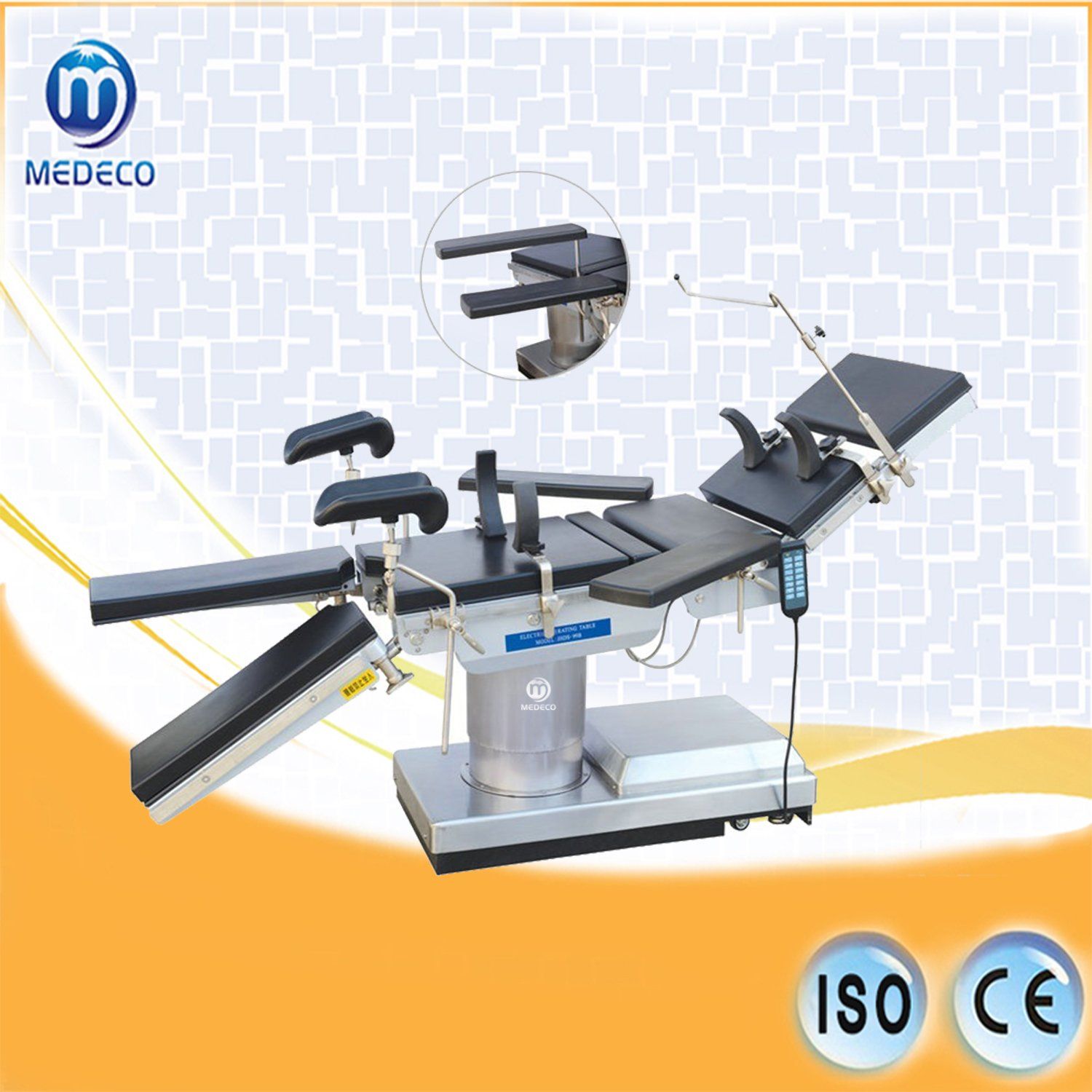

Medical Electric Hospital Table Ecoh002b
| Price: |
Negotiable/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
Medical Electric Hospital table ECOH002B |
| Table Height: |
580mm~930mm |
| Length And Width: |
2150mmx500mm |
| Reversed Trendelenburg/Trendelenburg: |
20o |
| Lateral Tilt (Left/Right): |
15o |
| Head Rest(up/Down): |
45o/90o |
| Back Rest (up/Down): |
75o/30o |
| Footboard(up/Down&Horizontal Position): |
90o/90o |
| Longitudinal Sliding: |
350mm |
| Horizonal Ratation Of Tabletop: |
0~180o |
| Type: |
Operating Table |
| Certification: |
ISO13485 |
| Group: |
Adult |
| LCD Display: |
Without LCD Display |
| Kind: |
Electric Hydraulic Operating Table |
Product Description

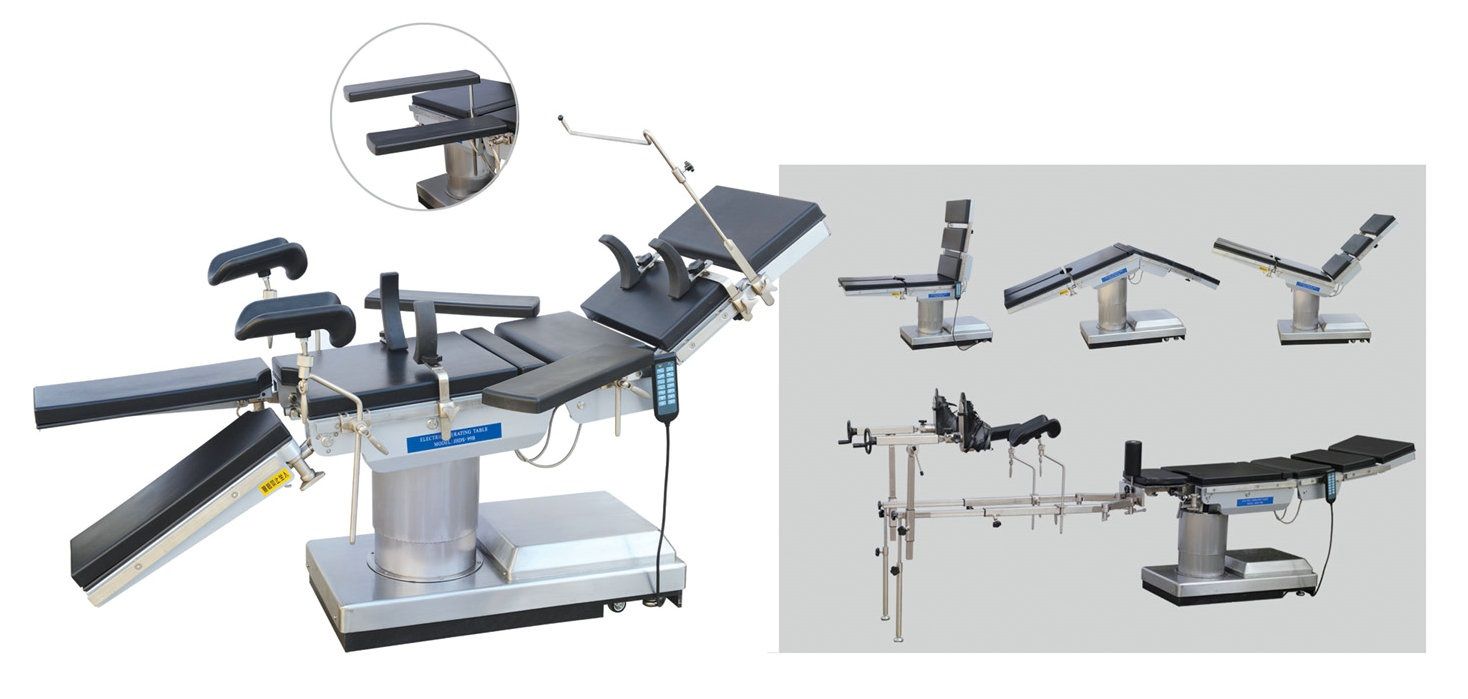

Medical Equipment Electric Hydraulic Operation Table(ECOH002B)
Main Usage & Structure:
Main Usage: Electric operation table can be operated for clinical use.
Structure:
Operation table consists of two parts: Mechanical and electro-hydraulic control system.
Depending on manual operation, the product can meet the requirement of posture in clinical operation.
Excellent performance, comprehensive functions, beautiful appearance, easy operation, the main body material is made from high-strength cast iron, aluminum, stainless steel; Mattress is made of antistatic senior PY foam materials. Imported parts in hydraulic system, stable performance, low noise.
Electric Hydraulic Operation Table ECOH002 developed independently by our company with innovative and advanced technologies.
In addition to above-mentioned performance, electric operating table ECOH002 integrates multi-purposes with advantages: Low position design of tabletop meets the requirement of needed low position in the operation; Adjustable tabletop, moveable in the longitudinal direction and rotation angle of tabletop Conducting full body imaging and perspective examination with C-arm without moving the patient for ample space, and providing doctors with comfortable positions for perspectives and surgical operations.
The table can be used in almost all kinds of operations such as abdominal surgery, neurosurgery, ENT, obstetrics and gynecology, urology, orthopedics and other types of surgery
The table is first-class comprehensive one with high-quality and multi-purposes, which takes the leading position in the domestic market.Specifications:Dimension of table top:
Overall Length: 2150mm
Width:500mm
Dimension of section:
Head Section:250× 500mm
Shoulder Section:250× 500mm
Back Section:250× 500mm
Seat section: 550× 500mm
Leg Section:600× 240mm
Table top of from floor
Min Height:580mm
Max Height:930mm
Adujst:350mm
Range of movements:
Reversed Trendelenburg:≥ 20°
Trendelenburg:≥ 15°
Lateral Tilt:.≥ 15°
Backward and Forward Movements:≥ 350mm
Adjustment of sections:
Head Section Raised from the horizontal:≥ 45°
Head Section lowered from the horizonta:≥ 90°
Shoulder Section Raised from the horizontal:≥ 25°
Shoulder Section lowered from the horizontal: ≥ 20°
Back Section Raised from the horizontal : ≥ 75°
Back Section Raised from the horizontal :≥ 30°
Leg Section Lowered from the horizontal : ≥ 90°
Leg section opened : ≥ 90°
Horizonal ratation of tabletop : 0~180°
Level reset zero (elected timing):.± 2°
Lifting speed : 4~16mm/s
Safe working load:135kg
Device safety sortI B
IPX4 Ingress Protection: IPX4
Power: (AC)220V, 50Hz
Battery capacity is 14 AH Battery capacity ≥ 2.4AH | Numberal order | Name of accessories | Number | |
| 1 | Head section | 1 | |
| 2 | Anaesthetic Screen | 1 | |
| 3 | Body support | Large 1.smart 1 | |
| 4 | Shoulder support | 2 | |
| 5 | Arm rest | 2 | |
| 6 | Knee crutch | 2 | |
| 7 | Cushion | 1 | |
| 8 | Body Restraint Strap | 1 | Optional |
| 9 | foot plate | 2 | Optional |
