| Prod Model: |
FY013 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Load Capacity: |
8000 N/6000n |
| Input Voltage: |
12V/24V |
| Noise Level: |
<50db |
| Warrtanty: |
2 Years |
| Material: |
Metal |
| Folded: |
Unfolded |
| Certification: |
RoHS |
| Type: |
Electrical Bed Industrial |
Product Description

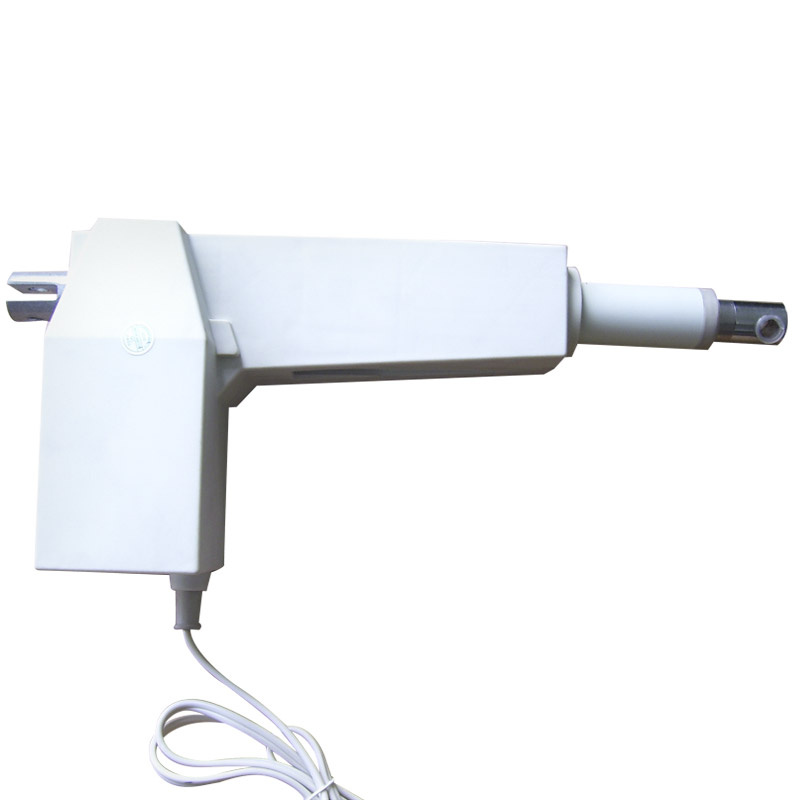

12V/24V bed linear actuator
1) Usages: Medical Equipment, Beauty, Furniture
2) Inner limit switch
3) Low noise
4) CE approved
Electric Linear Actuator FY013 for Medical Bed, Electric Sofa, Massage chair, Dental Chair and so on
FY012 series of linear actuators are popularize in various application in furniture, nursing bed, traction bed by advantage of its multipurpose linear motion and comprehensive functions, with the features: Low noise, built-in limited switch, and reliable. They are specially fit for hospital device.
Features:
1) Compact installation
2) Strong shell
3) High load capacity
Specifications:
1) 12V/24VDC permanent magnet motor
2) Thrust up to 8000N in push, and up to 6000 N in pull
3) Elegant and compact design with small instanllation dimensions
4) Built-in limit switches ( not adjustable after leaving factory )
5) Aluminium or zinc outer tube / inner tube
6) Electric chromate steel piston rod eye with slot
7) High-strength plastic housing protects motor and gears
8) Standard protection class: IP 54
9) Scratch and wear-resistant power painting
10) Noise level < 50 dB
11) Warranty: Two years
12) Duty cycle: 10%, or 2 munutes continous working followed by 18 minutes not in use
