Mechanical Mobile Shelving

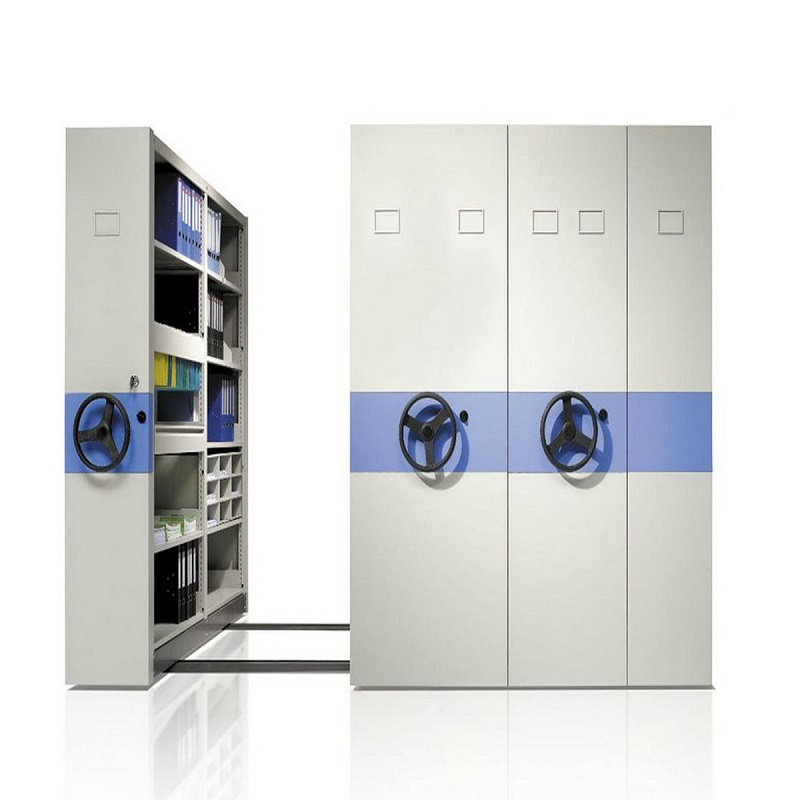

Name: Mechanical Mobile Shelving
Brand: thisfurniture.com
SKU: 797100345
Availability: InStock
Rating: 4.6 (76 reviews)

Price:	US $ 223.59-226.59/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	SII-MIPS050
Size:	Customized
Delivery Time:	2~3 Weeks
Color:	Customized by Your Needs
Material:	Metal
Open Type:	Sliding
Usage:	Office
Customized:	Customized

Product Description

With the cost and availability of workplace space at a premium, using space effectively is crucial. Simply can provide you with a range of flexible, high-density mobile storage solutions to meet your unique filing needs.

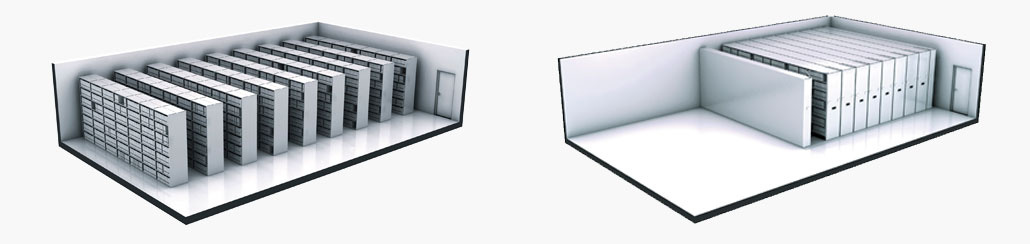

Our mobile office shelving systems are available in either manual, mechanical-assist or electrically operated styles, depending on the type and weight of media you need to store. Shelving units are mounted onto moving carriages that can more than double the storage capacity of your filing area or free up space for other uses.

Product features:

Mobile shelving is Effortless push-pull operation
Economical way to maximize your valuable storage space
Units can be easily extended, altered or relocated to support your changing storage needs
The built-in safety locks for mechanical type cabinets to safeguard users from accidentally trapped in aisles
Low profile tracks are trolley and wheelchair friendly
Available in single or tandem configurations
Easy assembly and dismantle

Details:

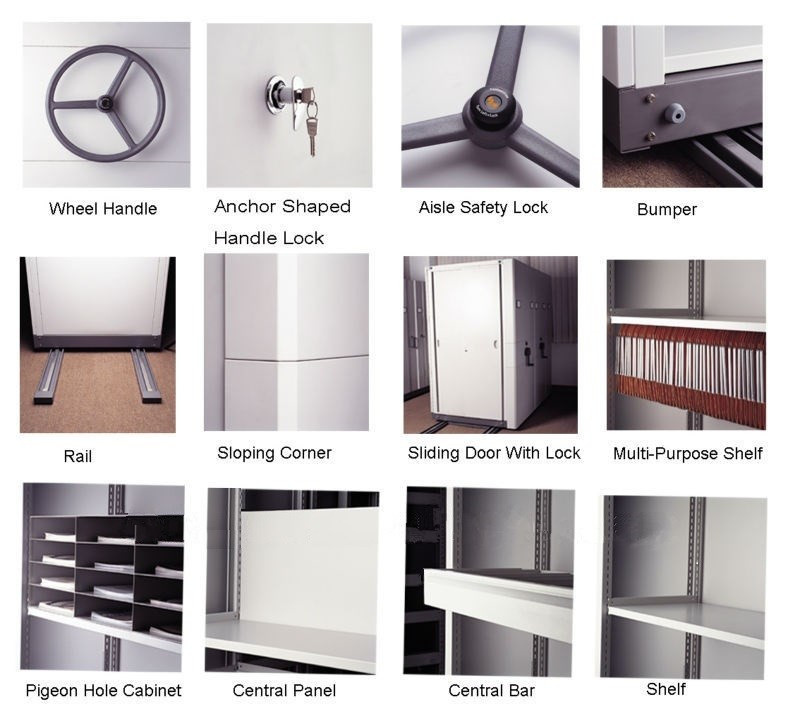

Main parts and Optional accessories: Multi-purpose shelf, cabinet, pull-out desk top, hanging rod, pull-out frame, pull-out drawer, divider, , disk drawer, platform, sliding door

Specification:

Parameter Specification :
Types:	Manual		Mechanical Wheel			Mechanical Handle
Material :	Electrolytic Galvanized Steel
Surface treatment:	Epoxy Powder Coating
Dimension :	Height :	2150mm
	Width :	(905*N)+165mm (N=number of Bays)
	Depth :	Fixed Unit : 450mm
		Movable Unit : 450/650/850mm
Shelf Size :	W845xD395xH38mm(for 450/850);				W845xD295xH38mm(for 650);
No. of Shelf	Single Fixed /Single Movable =4n
	Double Movable =8n
Aisle Size :	600-1000mm
Loading per Shelf:	Reinforced Shelf :				D295mm/85kg ; D395mm/100kg
	Multi-purpose Shelf :				D395mm/70kg
No. of Rails :	1-3Bays :		2pcs		4-5Bays :		3pcs
	6-7Bays :		4pcs		8Bays :		5pcs
Thickness:	Base	Back panel	Top panel	Front panel	Side panel	Shelf	Post	Rail
	2mm	1mm	1mm	1mm	1mm	0.8mm	1.5mm	2mm
Lock :	Steering wheel with brake ,more safety
Post	50x50mm square tube post of double plate with slots in 25mm increment
Bumper :	Natural rubber of 30x16mm
Rail :	Made of 25mm concrete steel with 0.8mm stainless steel sheet coating
Wheel :	Iron die casting with anti-rust zinc coating
	Loading : 1000kg / Wheel

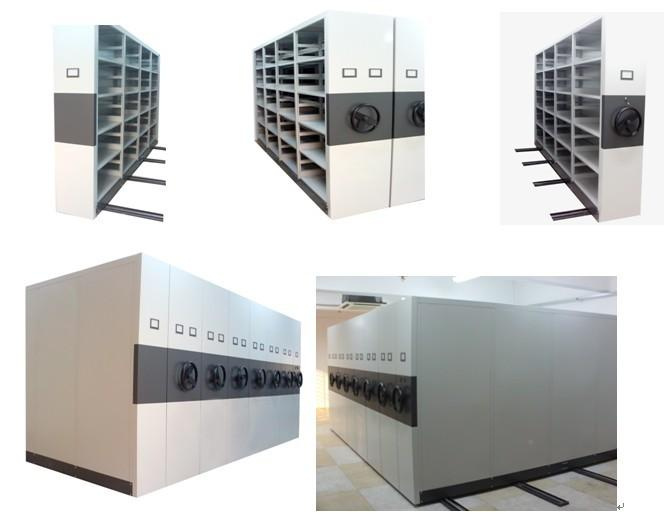

Standard model of mobile filing shelving
Type	Bay numbers	Single fixed	Single movable	Double movable		Double Movable
Manual	1	SFP450-1	SMP450-1	DMP650-1		DMP850-1
	2	SFP450-2	SMP450-2	DMP650-2		DMP850-2
Mechanical	1	SFM450-1	SMM450-1	DMM650-1		DMM850-1
	2	SFM450-2	SMM450-2	DMM650-2		DMM850-2
	3	SFM450-3	SMM450-3	DMM650-3		DMM850-3
	4	SFM450-4	SMM450-4	DMM650-4		DMM850-4
	5	SFM450-5	SMM450-5	DMM650-5		DMM850-5
	6	SFM450-6	SMM450-6	DMM650-6		DMM850-6
	7	SFM450-7	SMM450-7	DMM650-7		DMM850-7
	8	SFM450-8	SMM450-8	DMM650-8		DMM850-8
Standard Depth: ( D )		450mm	450mm	650mm		850mm
Standard Height: ( H )		2150mm
Standard Width: ( W )		905*N (N=number of Bays)
Thanks for your concern!

To be a subsidiary of Simply International Industrial, Dongguan Chengmei Hardware Co., Ltd. Established in 2008, specialists in versatile Steel & Stainless Steel storage furniture which widely used in the office, home, pharmacy, food preparation and many other industries. Simply manufactures top quality storage systems using the high quality electrolytic galvanized steel & Stainless Steel and highly skilled professionals.

We have invested a lot on modern Machines, include: 300 meters long automatic power coating production line, "AMADA" Automatic punch machines, CNC punching machine

The material we are using is Electrolytic galvanized steel for all office furniture products, which ensures the products have much longer life-circle.

With modern machines and high quality raw material our products give a high-standard impression to customers. And have gained a good reputation among customers.

With our extensive range of Steel storage Furniture, Simply can manufacture as per your designing & requirements.

For more information about our storage furniture, and to request a free quotation email sales@simplyindustrial. Net or call us on 0086-769-22200111.
