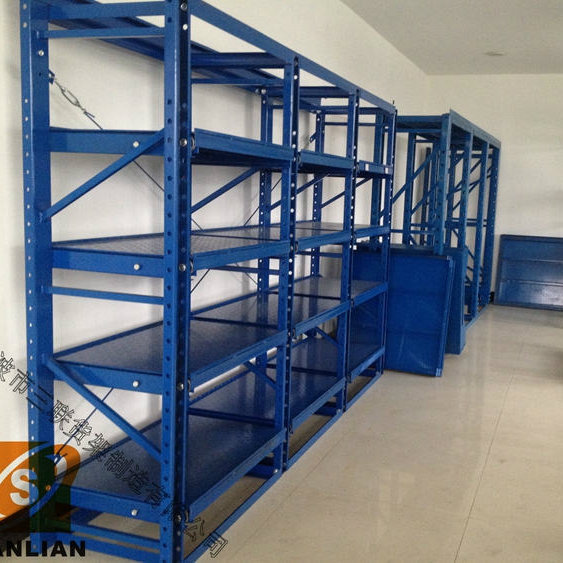

Material Adjustable Steel Long-Span Racking Shelf

Material Adjustable Steel Long-Span Racking Shelf
Price: US $ 57/Piece
Min Order: 100/Piece
Pay Type: L/C,T/T,Paypal
Prod Model: Medium Duty Rack
Color: Blue/as Your Requirement
Material: Steel
Structure: Rack
Mobility: Adjustable
Height: 0-5m
Weight: 150-500kg
Closed: Open
Development: New Type
Serviceability: Common Use

Product Description

Product Description

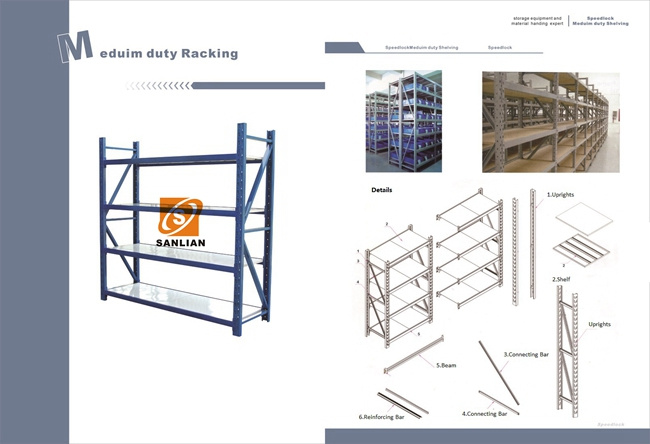

This kind of rack is also called Long Span Shelving, medium rack, tire rack or others. It is constructively similar to Light Pallet Rack, but designed to store non-palletized goods. This is an intermediate application between Light and Heavy Duty applications. It is designed for loading/unloading goods manually without mechanical equipment. Stored goods can be from smallest components to large and awkwardly shaped items.
Features and the Advantage:
 A. It is used widely and suitable for automotive components, supermarkets, libraries, hospitals and pharmacies etc.
B. The systems is available from single-tier for simple requirement to multi-tier applications (up to 5 tiers), utilizing full warehouse height.
C. High bay Long span racks are also available (above 3 meters high) with man-up stacker crane or order picking trucks.
D. Pick & Deposit is done manually.
E. The upright is perforated at a pitch of 75 mm allowing boltless mounting of the beams. The tapered shape of the hook guarantees a stable and rigid design, even without back bracing.
F. "First in first out" of goods are realized . It is convenient to access and suitable for such places as the two sides of the assembly lines, distribution centers, etc.
G. The loading capacity of each layer is 500kg at the most.

The Specification and Parameters:
Loading capacity100-300kgs300-500kgs
Popular Size
(mm)
L1800*W600*H2000L1800*W600*H2000
L2000*W600*H2000L2000*W600*H2000
L2000*W600*H2500L2000*W800*H2500
Upright Spec:50*30*1.2mm 80*40*1.2mm 55*47*1.5mm
Beam Spec:50*30*1.5mm / 60*40*1.5mm / 80*50*1.5mm
Remarks:1.Surface treatment: powder coating or galvanized
2.Each lever height adjustable freely with pitch 50mm
3. Accessories: We provide Horizontal & diagonal braces connecting Upright Frames for stronger structure, row spacer, upright footplates, safety locking pins, Bolts & nuts, anchors and screw, U-shape, L-shape Post Protector, Frame Barrier, Pallet Supporting Bar, Steel Pallets, Plastic Pallet, Special custom-made Pallets, Cage, Mesh Container, Mesh Deck, and all necessary components.

Quotation requirements, kindly inform us the info as below
- Drawing of racking or warehouse (if available)
Size of your warehouse (Length x Width x Clear height)
Size (W*D*H) & weight of pallet (after loading)
How many layers do you need?

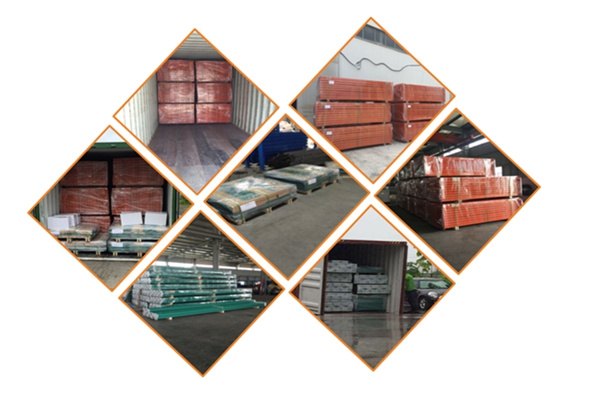

Package and Performance Pictures Showing

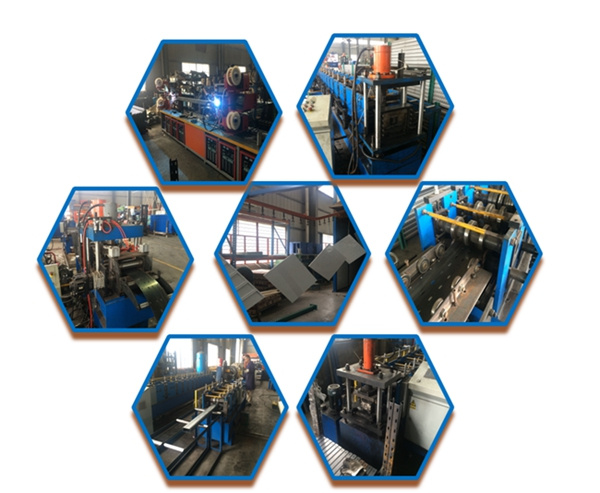

Production Equipment








Our company supplies different kinds of products. High quality and favorable price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "Quality first, service first, continuous improvement and innovation to meet the customers"For the management and "Zero defect, zero complaints"As the quality objective.
