| Prod Model: |
FY012 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Black or Ivory |
| Material: |
Metal |
| Type Of Hospital Bed: |
Nursing Bed |
| Certification: |
RoHS |
Product Description

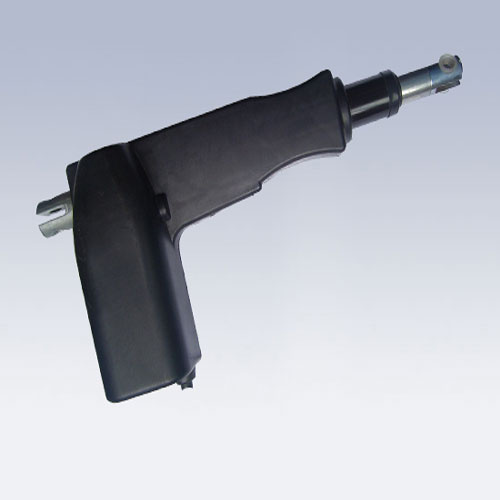

Medical Linear Actuator
1) Medical Linear Actuator
2) Used in Medical traction bed.
3) CE, RoHS approval
Specifications of FY012 Linear Actuator:
Name: Linear Actuator
Model: FY012
Input Voltage: 24V DC
Max Load Capacity: 4000N (400kgs)
Max Speed: 4mm/s (4000N), 9mm/s (2000N)
Standard Stroke: 1000mm
Limit Switches: Inner
Type of duty: S2-10min
Color: Black / Gray
Operation Temperature: -26 Centigrade ~ 65 Centigrade
Protection Class: IP454
Certification: CE/EMC+LVD, RoHS
Usage: Medical traction bed.
| Name | Linear Actuat |
| Mode | FY012 |
| Input Voltage | 12V or 24V |
| Max Load Capacity | 6000N(4mm/s) |
| Max Speed | 30mm/s(750N) |
| Stroke | 0~1000mm |
| Mini Install Dimension | stroke+175mm |
| Limit Switches | Inner |
| Type of Duty | 10% |
| Operation Temperature | -26~+65 |
| Noise | < 48db |
| Protection Class | IP54 |
| Certification | CE |
| Applications | Furniture, Medical bed
|
Wuxi JDR Automation Equipment Co., Ltd, established in 2008, . Is a professional manufacturer and trading unit integrating the research, production and marketing of DC linear actuator. JDR's predecessor is Wuxi Feiya Electronical Equipment Co., Ltd, which was established in 2004.
Our company owns several automatic production lines and enough experience in the production and research of linear actuators and controllers. Our products are popularized in many occasions when need to be implemented with rectilinear motion such as electrical nursing beds, operational beds, traction beds, massage chairs, dental chairs, electrical sofas and show-cases. These products can adjust heights, move between front and behind, as well as angle change, which take the place of gas springs as well as AC decelerators.
Dreams drive science, technology creates life. Based on domestic market and aiming at overseas market, JDR has gradually started to establish perfect marketing net both at home and abroad.
"Quality First, Customer Paramount" is our established guidelines. "Based on honesty, providing high quality products and innovative service, striving after perfection" is our management concept.
With over 80 people's efforts, JDR is becoming better and better. We have sound management system and very low stuff turnover, and every department cooperate greatly.
Now, we have successful foreign trading experience in South Europe, West Europe, North Europe, North America, South America, Middle East and Southeast Asia.
We, Wuxi JDR, sincerely welcome your advices, suggestions and inquiries.
