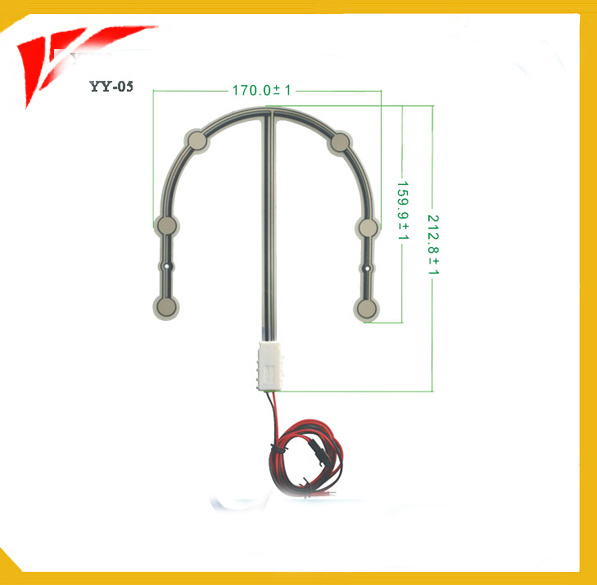

| Prod Model: |
yy-05 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Output Signal: |
Resistance |
| Material Surface Thickness: |
0.188mm |
| Permanence: |
>150000time |
| Application: |
Cars and Taxi Mini Buses |
| Material: |
PC |
Product Description
Dynamic pressure sensor
Pressure range: 0.1 N/cm2 - 100N/cm2
Output signal: resistance (R)
Thickfilm sandwich: 0.15mm - 1.0mm
Great durability: >10 million activations
Minimum active area: 5mm x 5mm
Customer specific design
nbsp; 130g 100% conducting
Connector: seal gum
Material: PC
Material surface thickness: 0.188mm
Output signal: resistance
Film thickness: 0.5-0.1mm
Bottom glue: PET 3M double-sided glue
Environment Temperature:-15ºC-80ºC
Permanence>150000 time
Pressure range single-spot test:70g 100% non-conducting
130g 100% conducting
Connector: seal gum
| Performance Parameters Table |
| Parameter | Condition | Sign | Numerical Value | Unit |
| | | | Min | Max | |
| Working Voltage | | U working | 0 | 20 | V |
| Working Current | | I Working | 0 | 50 | mA |
| Non-trigger resistance value | No load | Rx=R No load | 10.0K | | Ω |
| Trigger resistance value | Bearing body | Rx=R Trigger | 0 | 100 | Ω |
| Insulation impedance | No load | Rx=R No load | 10 | 20 | MΩ |
| Specification |
| Material | PC |
| Material surface thickness | 0.188mm |
| Output Signal | Resistance<100Ω |
| Film thickness | 0.5+-0.1mm |
| Bottom glue | PET 3MDouble-sided glue |
| Enviroment Temperature | -15°C-80°C |
| Permanence | >150000 Time |
| Pressure range single-spot test(Special Poise) | 70g | 100%non-conducting |
| | 130g | 100%conducting |
| Connector | Seal gum |
| To match as the seat |
1. Sample Policy: You can test the quality of our sample firstly before you purchase them in mass quantity.
2. Payment Way: T/T, L/C, Western Union, Paypal .
3. Delivery Date: 10-25 days after deposit paid. It depend on your order quantity.
4. Shipping Way: By Sea or By Air.
5. After Service: 12 months expiration date .
Trade Terms:
1.Price term: FOB, CIF, C&F, EXW
2.Delivery Port: Shanghai or Ningbo port , China
3.Payment term: T/T, L/C, Western Union, Paypal etc.
FAQ:
1, How I can know your seat will fit my machiney ?
We are the factory ,You can tell us your mounting size .we could provide OEM .
2,If I needn't 100 pieces ,Can place an order ?
Yes ,we could accept low MOQ .
3,what's the delivery time?
15-25 days after you deposit .
4,Can I buy 1-2 pieces for test ?
Yes ,you can ,if you place an big order ,will return the sample cost .
