| Prod Model: |
KLYT001 |
| Usage: |
Table, Massage Chairs |
| Color: |
Outside The Motor Shell Black,Silver |
| Pull Force: |
Max.5000n |
| Noload: |
3-60mm/S |
| Trip: |
30-800mm |
| Type Of Duty: |
Max.10% |

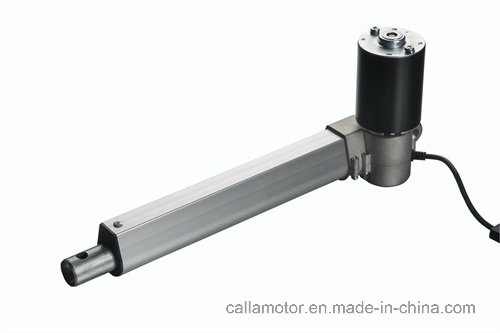

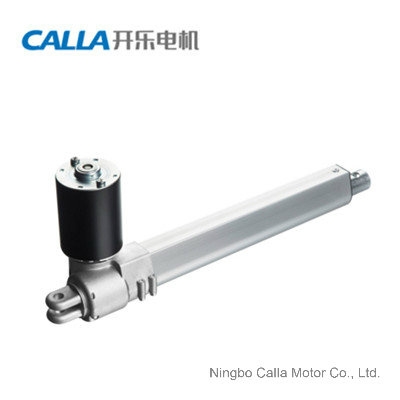

Product Description
PRODUCT SPECIFICATION/MODELS| Brand Name | Calla motor |
| Model | KLYT001-1 |
| Applications | Furniture, Industry; Medical Treatment,sofas |
| Input voltage | DC6-36V |
| Load capacity | Max .6000N (push) /5000N (pull) |
| Speed | 3-60mm/s (no load) |
| Min.Stroke | S=30-800MM |
| Duty cycle | Max.10%continuous dutty |
| Limit switches | One side or both side limit switch (built- in ) |
| Operation temperature | -5ºC~ +40ºC |
| Material | Aluminum |
| IP class | IP20 |
| Color | Outside the motor shell black,silver |
We can customize according to the requirements of different customers.APPLICATION1. Kitchen,furniture, sofas,machinery,chemicals,leisure and many other fields
2. Especially popularized such as cooker hood window opener ,medical care beds ,operating tables ,traction beds, massage chairs, dental chairs, sofas
3.Industrial electric equipment products.
FEATURE1. Optional Stroke Length
2. Built-in Limit Switch
3. Compact Construction
4. Quiet and Low Noise
5. Steady performance
6. long life and with antirust
7. High efficiency
9. Aluminum outer tube and stroke rod
10. Aluminum alloy housing
ABOUT US Calla motor is professional manufacturer of Linear Actuator, Control Box and Handset .Our products are exported worldwide and widely used in household , industrial, office and medical fields. Especially for cooker hood window-opener, massage chairs, electric sofas, dental chairs etc. Our company regards" reasonable prices, quality assurance , delivery on time, and good after-sales service " as our tenet. We hope to cooperate with more customers for mutual development and benefits. We believe it will have a vast market foreground.
NingBo CALLA Motor Co., Ltd, which is located in the New District of Ningbo Hangzhou Bay, close to Hangzhou Bay Cross-sea Bridge, two hour's drive away from Shanghai, Hangzhou, Suzhou and Ningbo, possesses a super geographical advantage. The company covers an area of 60acres with a construction area of 50000 square meters and total investment of 120 million yuan. The company specializes in the production of different kinds of motors and linear actuator with respectively annual outputs approximate to 2.5 million sets and 1milion sets. Now there are 300employees in the company, 15%of whom are engineers, technicians and management staff.
The company which is a professional motor manufacturer, has more than ten years of manufacturing experience and strong technical force, possesses advanced production equipment and all kinds of testing and laboratory facilities. What's more, the company has the capacity of independent research and development and manufacture. We are the designated suppliers of well-known companies both at home and abroad. Our products are exported to Europe, America and the Middle East. We believe it will have a vast market foreground. Our company has passed ISO9001-2008 Quality Management system Certification, and our product has authorized by CCC, Germany TUV, EU CE and American UL test system
NingBo CALLA Motor Co., Ltd. Is willing to create a better tomorrow with people from all circles of societyand our own staff.
