Marble Wash Basins Water Jet Cutting Machine
| Price: |
US $ 25000-50000/Set |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T |
| Prod Model: |
PX380 |
| Servo Contro: |
FUJI |
| Accuracy: |
+/-0.1mm |
| Power Supply: |
220/380/415/VAC,50/60Hz |
| Motor: |
22kw |
| Repeatability: |
±0.05 |
| Air Compressor Pressure: |
0.6-0.8MPa |
| Abrasive: |
Garnet Sand 60-100# |
| Computer: |
Win XP/Win7 |
| Type: |
CNC Cutting Machine |
| Usage: |
Marble |
| Application: |
Stone Industry |
| Source Voltage: |
380V |
| Automation: |
Automatic |
Product Description

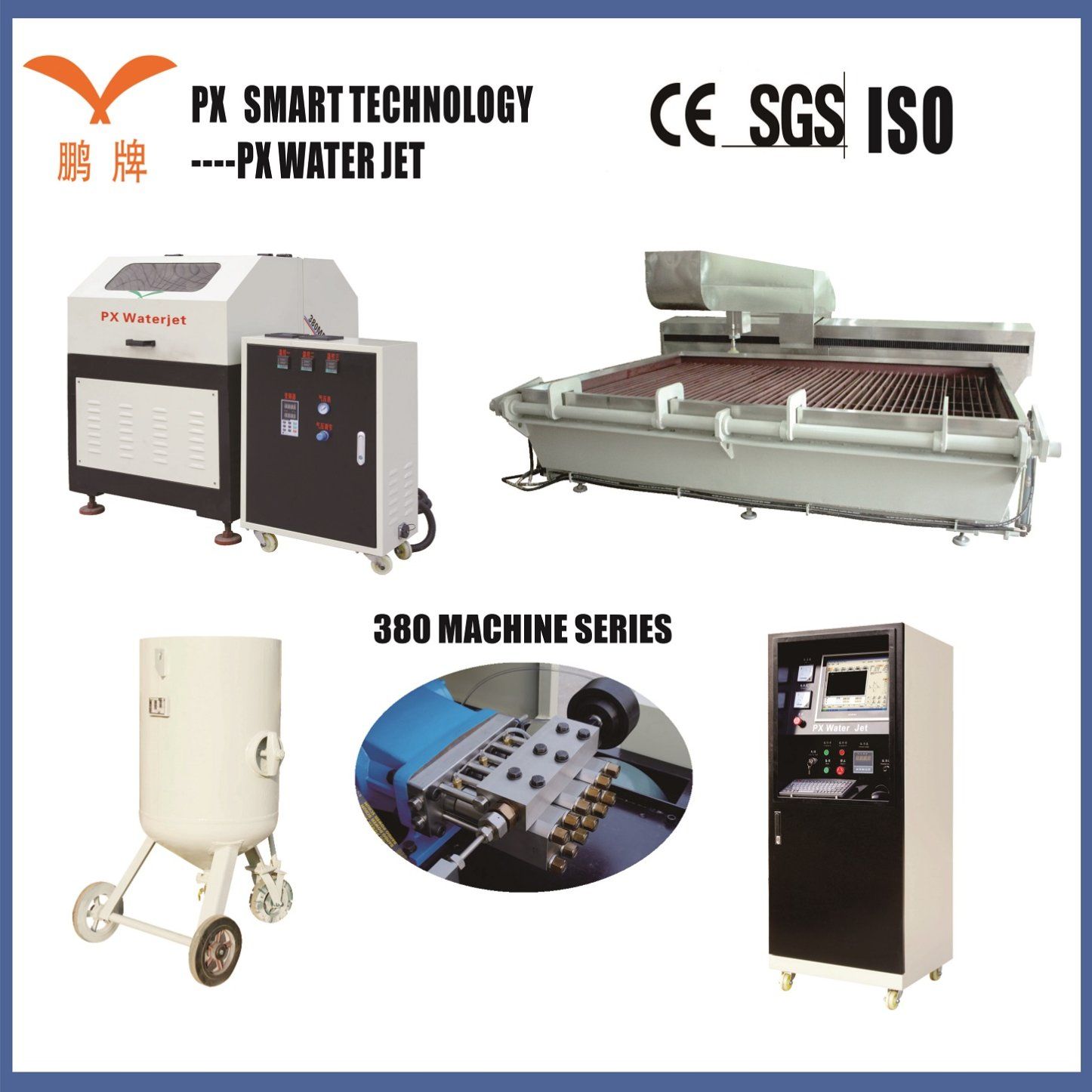

PX380 Direct Drive Pump Waterjet Cutting MachineOne set waterjet cutting machine including 4 parts:1.Intensifier pump box
2.(Fly-arm)Water jet work table
3.Control Cabinet (CNC controller)

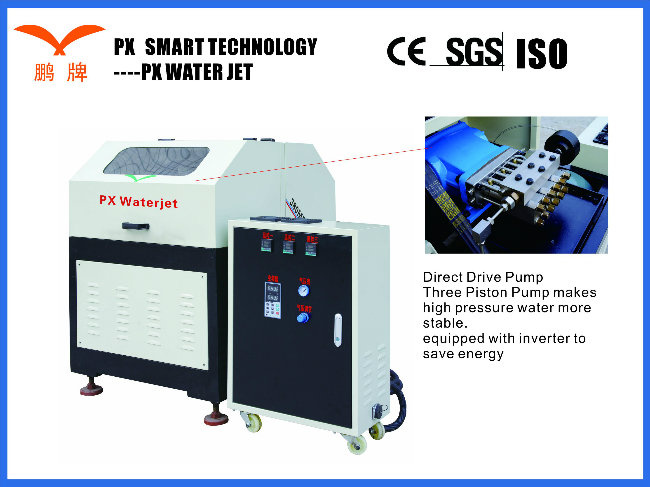

4.Auto Sand Feeder(abrasive supply)PX380 Host----- Direct Drive Pump and Inverter:
1.Concise, high efficient and energy-saving
2.The high pressure system is equipped with high pressure safety valve, which helps to achieve the stepless regulation in high and low pressure condition and the overload protection.
3. It is also equipped with inverter which makes perforating/drilling in low pressure condition and cutting in high pressure condition possible.
4.Automatic cooling system, which is no need extra energy, can keep the machine working in 24 hours. The temperature controlling system helps to check the operation condition of the machine.
| Number | Name | PX380 PARAMETER | Unit |
| 1 | Cutting pressure adjustment range | 0-380 | Mpa |
| 2 | Working pressure | Adjustable 150-350 | Mpa |
| 3 | Maximum water flow rate | 2.6 | L/min |
| 4 | Orifice diameter | Φ0.25 - Φ0.33 | mm |
| 5 | Nozzle | length 76.2mm hole0.76 or 1.02 | mm |
| 6 | Drive motor | Rated power | 22 | Kw |
| Rated speed | 1470 | r.p.m |
| 7 | Power | 220/380/415/VAC,50/60HZ |

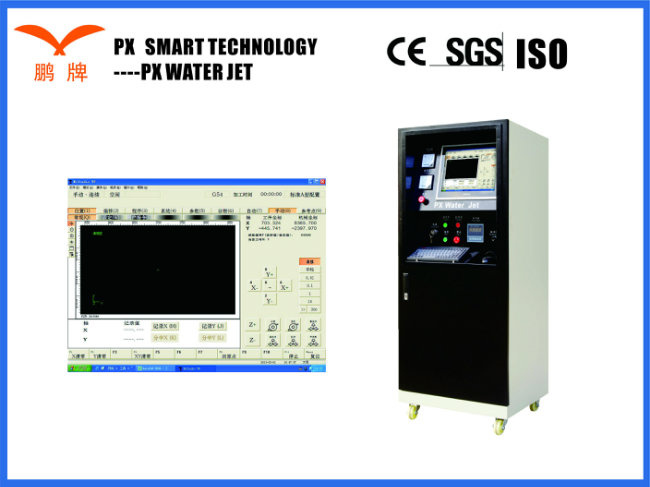

Control Cabinet(CNC Controller):1.International advanced level water jet cutting dedicated software
2.Processing program synchronizes with graphics simulation which can help to avoid processing error.
3.Automatically display cutting length of each part to make calculation convenient for customers.
4.It can set X, Y axis stroke soft limit to prevent the cutting head from going beyond the limit.
5.Automatically generate the NC programming

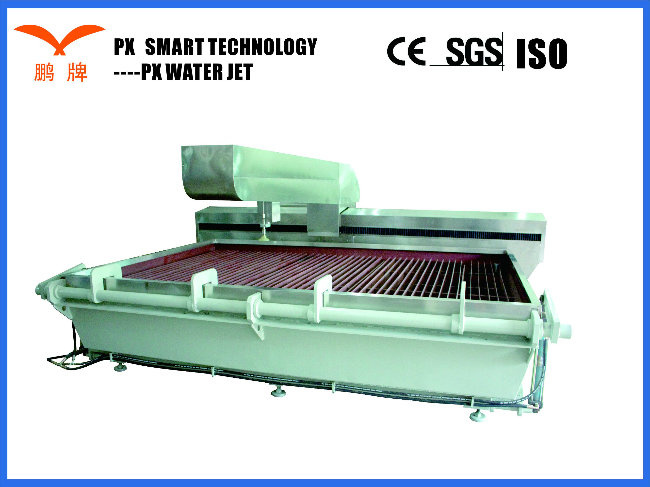

Fly-arm Type Worktable:1.Cantilever structure, occupy less area and easy to use
2.The structure is powerful and stable
3.The cutting platform uses high-quality linear guiding rail and rolling lead screw.
4.Adopt servo-control system which makes the operation more stably.
5.Centralized automatic lubrication system, humanization design, automatic equipment maint
| Name | Parameter | Unit |
| Model | 4.0*2.0 | 3.0*2.0 | 2.5*1.5 | 2.0*1.5 | 1.5*1.2 | M |
| Maximum cutting range | 4000*2000 | 3000*2000 | 2500*1500 | 2000*1500 | 1500*1200 | Mm |
The turret trip | 0-200 | Mm |
| Driving speed | servo motor | 0-10000 | Mm/min |
| Cutting precision | ±0.20 | Mm |
| Control precision | ±0.05 | Mm |
| Working platform motor | Servo motor(Fuji) | |
| Air compressor pressure | 0.6-0.8 | Mpa |
| Abrasive | Garnet | |
| Grit size | 60-100 | |
| Computer | Win XP/win7 | Item |
| Software | Water jet CNC program system | |

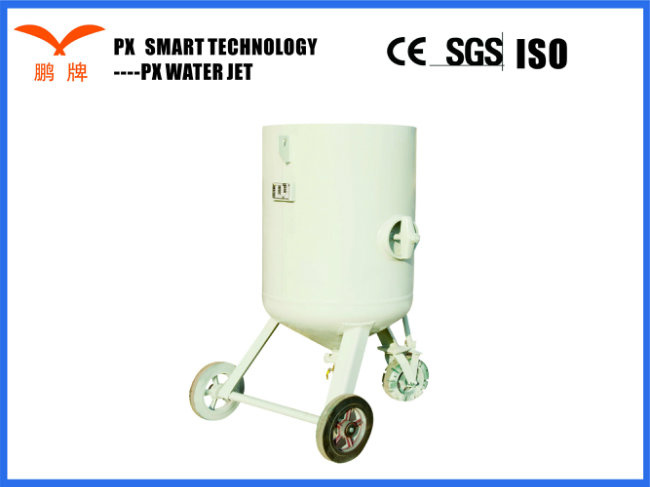

Automatic Sand Feeder(Abrasive Supply):
1.Labor-saving.
2.It can control the amount of sand.
3.It can store 150 kilograms sand for once.
4.It can serve for two machines simultaneously.
PX Honort:
Cutting Sample:
Heyuan PX Smart Technology Stock Co., Ltd. (called Heyuan PX Water Jet Industry Co., Ltd. Before, founded in 2006) is a high and new technology enterprise, which specializes in the R&D and production of PX numerical control ultrahigh pressure water jet cutting machinery. Heyuan PX Smart Technology Stock Co., Ltd. Was awarded the state-level high-tech enterprise, and has acquired many patent certificates in ultra-high pressure water jet field. Since establishment, we always follow the enterprise values of credit, profession, innovation and exceeding. Moreover, we have organized international talents and established scientific research institution to provide reliable guarantees to our excellent products.
Our target is to be the leader of ultrahigh pressure water applied technology in China, and of the first-rate water cutting manufacturer in the world. PX owns 10, 000 square meters' production R&D center in Heyuan Guangdong and can produce 300 water jet cutting machines annually. Simultaneously, we have outstanding talents in the field of ultrahigh pressure and automatic technology. They are capable to handle the products development, none standard design and multi-disciplinary comprehensive technology. The outstanding talents can offer designing and producing according to clients' demands and supply professional technology consults. In addition, they also can provide full range of solutions, perfect technology training and great after-sales services for customers.
After ten years development, PX water jet machines are popular all around the world. With its environment friendly, energy saving and high efficient etc. Advantages, PX water jet machines extensively applied in the industries, such as building ceramics, stone, glass, metal machining, automobiles etc.
