Machining Center, Vmc1060 China CNC Milling Machine, Table Size 1300*600, 1000kgs Loading
| Price: |
US $ 9999-55000piece |
| Min Order: |
1piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
EV1060 |
| Material: |
Metal |
| Business Type: |
Manufacture |
| R&D Capacityv: |
Own Brand |
| City: |
Dongguan |
| Category: |
Tools and Hardware |
| Process Usage: |
Metal-Cutting CNC Machine Tools |
| Movement Method: |
Contour Control |
| Control Method: |
Closed-Loop Control |
| Numerical Control: |
CNC/MNC |
| Performance Classification: |
Mid-Range CNC Machine Tools |
Product Description
Hot selling in 2017 CNC Milling Machine Center, Machining Center (EV-1060)
1. All the castings adopt high quality and high stability Germany Meehannite cast iron and digitizing metal formula to ensure the quality of castings. FEM analysis is used to analyze castings and computer is used to calculate and analyze so as to strengthen the design of organization structure, enhance the rib configuration, optimize the casting structure and enhance the rigidity of whole machine.
,"A","","";

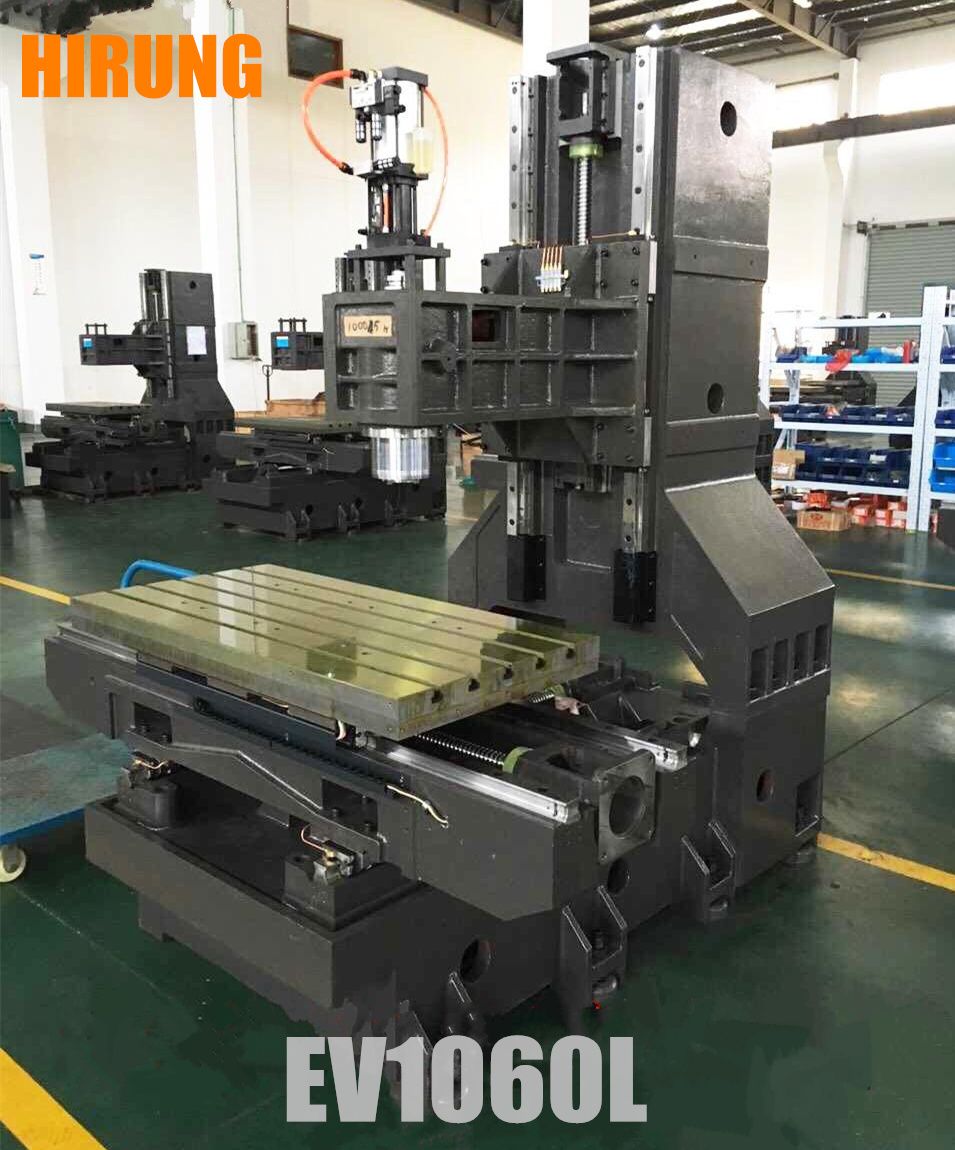

"A" type column has bigger span in base to ensure rigidity and stability.
,,,,;
Saddle is wider and thicker to ensure the ability of heavy duty when processing.
,;
In spindle box, rib is reinforced to strengthen the contact surface between spindle box and column and provides great support.
,,,.
All the parts are Germany, Japan and Taiwan imported components to ensure the durability and long-term stability of machine.Model NO.: EV1060
Object: Hardware, Metal, Mould,Workpiece
Type: CNC Milling Machine
Milling Cutter Type: Vertical Milling Center
Controlling Mode: CNC
Precision: High Precision
Condition: New
Trademark: HIRUNG
Specification: CE, ISO9001
HS Code: 8459619000
Origin: China We are China not cheap price , but we are best quality in China .

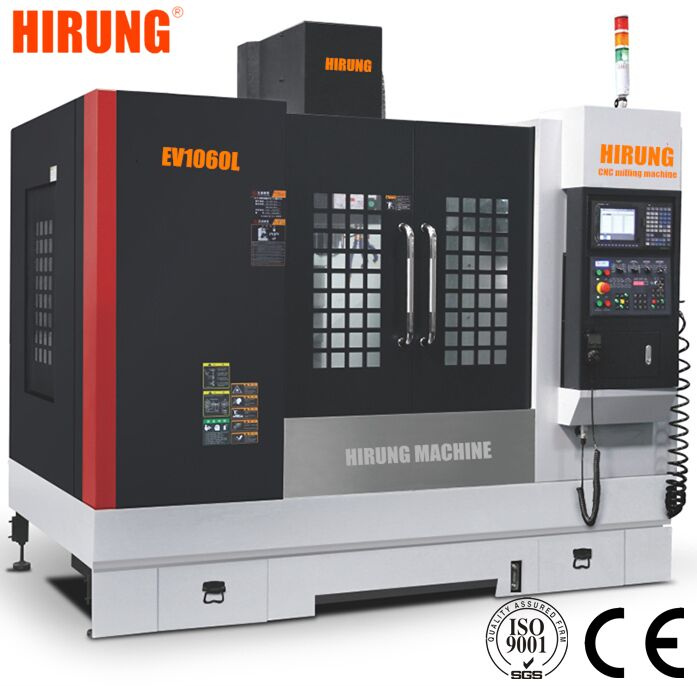

Specification: Our machine EV 1060L is fit for processing metal mould, it is high rigidity and heavy cutting
(high precision spindle)
Main Parameter | Items | EV1060L |
| Travel | X-axis travel | 1000mm |
| Y-axis travel | 600mm |
| Z-axis travel | 600mm |
| Distance from spindle nose to work table | 70-670mm |
| Distance from spindle center to column | 655 mm |
| Table | Table size | 600×1300 mm |
| Max. table load | 1000kg |
| T-Slot size | 18/5 mm |
| Spindle | BT-Type | BT-40 |
| Spindle max. speed | Belt type 8000 rpm(OP12K) |
| Turret | Tool magazine | 24 (OP 32) |
| Tool change time | 2.2sec. |
| Motor | Spindle power (kw) | 7.5/11 kw(OP11/15KW) |
| 3-axis power (kw) | X/Y/Z:3.0 kw |
Feedrate | Cutting feed rate | 0-10000mm/min |
| Rapid feed rate | X/Y:30000 mm/min Z :24000 mm/min |
| Other | Air pressure | ≥6 kgf/cm2 |
| Net weight | 8000kg |
| Floor space | 3300*2500*2750mm |
| NC system | MITSUBISHI M80B |

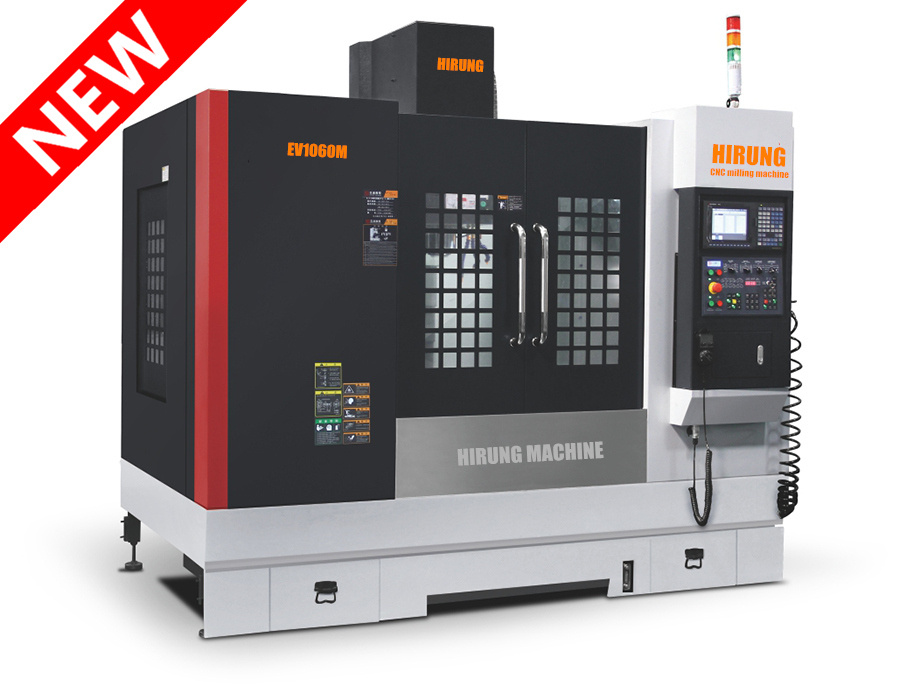

| item | unit | EV850L/M | EV1060L/M | EV1270L/M | EV1580 | EV1890 |
| X/Y/Z-axis travel | mm | 800/500/500 | 1000/600/600 | 1200/700/700 | 1500/800/700 | 1800/900/800 |
| Table size | mm | 550*1000
500*1050 | 600*1300 | 700×1360 | 800*1700 | 900*2000 |
| Max. table load | kg | 600
600kg | 1000 | 1400 | 2000 | 2000 |
| BT-Type | | BT-40 | BT-40 | BT-40/50 | BT-50(OP40) | BT-50(OP40) |
| Spindle max. speed | rpm | Belt type 8000rpm(OP10000/12000/15000) | 6000rpm | 6000rpm |
| Spindle power | kw | 7.5/11 | 7.5/11(OP 11/15) | 7.5/11(OP 11/15) | 11/15 | 11/15 |
| 3-axis power | kw | X/Y/Z:2.0 | X/Y/Z:3.0 | X/Y/Z:4.0 | X/Y/Z:5.0 | X/Y/Z:7.0 |
| Cutting feed rate | mm/min | 0-10000 | 0-10000 | 0-10000 | 0-8000 | 0-8000 |
| Rapid feed rate | mm/min | L:X/Y:48000 Z :36000
M:X/Y:20000 Z :15000 | L:X/Y:30000 Z :24000
M:X/Y:20000 Z :15000 |
L:X/Y/Z :30000
M:X/Y:16000 Z:14000 | X/Y:16000 Z:14000 | X/Y:16000 Z:14000 |
| Net weight | kg | L:6500
M:6000 | 8000 | 9500 | 12000 | 15500 |
| Floor space | mm | L:2700*2500*2730
M:2700*2400*2600 | L:3300*2500*2750
M:3350*2500*2800 | 3700*3000*3000 | 4100*3200*3250 | 4500*3500*3500 |
| NC System | | MITSUBISHI M80 / SIEMENS 828D(PPU240)8.4''/FANUC 0IMF |

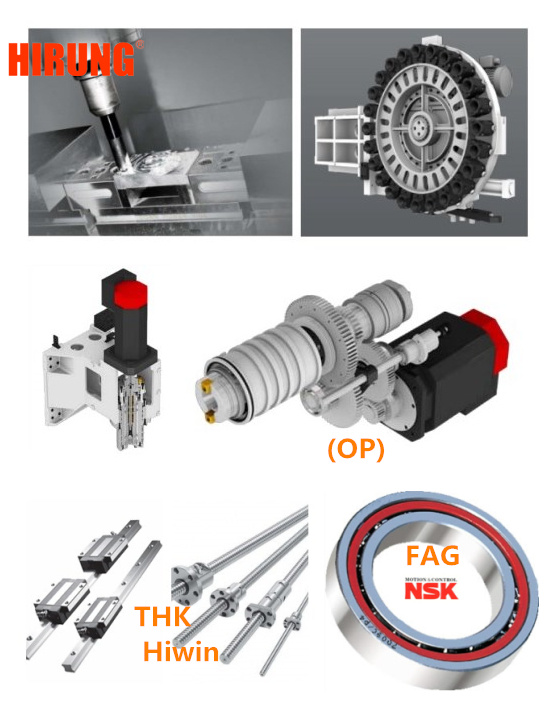

Standard Configuration1,Total Splash Guard2,24 Arm Type ATC 24 Tools3, 8000rpm Belt Type Spindle4,Cutting Coolant System5, Automatic Centralized Lubrication System6, Heat Exchanger for Electric Cabinet7, Manual Pulse Generator8,RS232 RS232 Interface9, Working Light10, Tricolor Caution Light11 Basic toolbox12 Leveling Bolts and Blocks | SerialNo. | Product Item | Specification | Quantity | Remarks |
| 1) | Control System | Configuration System | 1 |
MITSUBISH
|
| 2) | AC Servo Motor | Configuration System | 3 |
| 3) | Spindle Power | Configuration System | 1 |
MITSUBISH |
| 4) | Ball Screw | | 3 | Taiwan |
| 5) | Spindle Bearing | | 1 | Japanese NSK |
| 6) | Ball Screw Bearing | | 3 | Germany FAG/
Japan NSK |
| 7) | Coolant Pump | | 1 | Taiwan |
| 8) | Centralized Lubrication System | | 1 | Taiwan |
:Optional Configuration 1: Spindle Oil Cooler Devices2: Auto Spiral Type Chip Conveyor3: Hinge(Scraper) Type Chip Conveyor4: (10-75Par)) Coolant Through Spindle Device5: Air Conditioning Device in the Electric Box6: Auto-measurement System for Tool Length and Diameter7: Measuring System of Workpiece8: Non-contact Measuring System of Tool Length and Diameter9: Full Closed-loop System of the Linear Scale10: (BT40) Spindle Speed (BT40) 10000/12000/15000rpm 10000/12000/15000rpm11: NCRotary Table of the Forth(Fifth) Axis Packing & Delivery
Packing Details : To be packed in wooden cases,suitable for export.
Delivery Details : 25~35 days after receipt of deposit
Hirung Enterprise Co., Ltd. CNC began machine tools business in 2001, in the beginning , CNC equipment is our flagship product, after the industry 2.0 and 3.0, we have ushered in a new
industry 4.0.
In 2014 we set up Hirung Precision Machinery Co., Ltd. in Dongguan City, in July 2015 we setup branch office in Indonesia, in August 2015 we set up branch office in Bangladesh under
our global brand marketing strategy. Currently our company is in the line of CNC machine
tools, CNC automation tools, we provide good equipment and good after-sales service for the customers. Our goal is to make"HIRUNG" CNC machine tools one of China's most professional automation brands.Why choose us:
1.Reliable Trademark Company with 20 years machinery experience
2.Gold Member and Audited Suppliers in Made-in-China.
3.Customize Machine According to Customer's Requirement.
4.CE approved and One year warranty,provide whole-life technology support.
5.High quality with competitive price.
6.We supply professional solution to you based on your own process one by one.
7.We supply one years Warranty for whole machine.
8.7*24 hours Email or phone service.
9.China s best machine -HIRUNG
Q: Are you trading company or manufacturer ?
Q: How long is your delivery time?
A: Generally it is 35 days , it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
Q: What is your terms of payment ?
A: T/T 30% with the order, the rest 70% of total amount T/T before.
